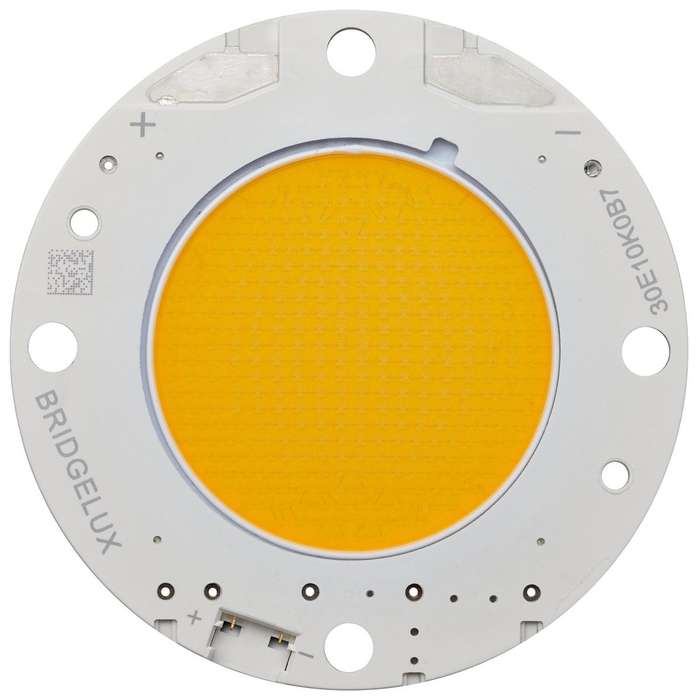

Bridgelux (BXRC-30E10K0-D-73) LED, Warm White, 80 CRI Rating, 81.3W

Product Information:COB Colour: Warm WhiteColor Rendering Index Max: 80Power Rating: 81.3WLuminous Flux @ Test: 10000lmForward Current @ Test: 2.1AViewing Angle: 120°Forward Voltage VF Typ: 38.7VNominal CCT (K): 3000 KCOB Length: -COB Width: -Opto Case Style: -Lumens / Watt @ Current Test: 155lm/WLight Emitting Surface: 29.2mmLens Type: -Lens Shape: Round with Flat TopHeight: 1.9mmProduct Range: Gen 7 Vero 29 ArrayProduct OverviewVero represents a revolutionary advancement in chip on board (COB) light sourcetechnology and innovation. Vero LED light sources simplify luminaire design andmanufacturing processes, improve light quality, and define a platform for futurefunctionality integration. Vero 29 is the largest form factor in the Vero familof next generation solid state light sources. In addition to delivering theperformance and light quality required for many lighting applications, Veroincorporates several features to simplify the design integration andmanufacturing process and accelerate time to market.Efficacy of 155 lmW typicalVero 29 lumen output performance ranges from 5,244 to 37,266 lumensBroad range of CCT options from 2700K to 5000KCRI options include minimum 70, 80, and 90, 2 and 3 SDCM color control for2700K-4000K CCTReliable operation at up to 2X nominal drive currentRadial die pattern and improved lumen densityThermally isolated solder padsOnboard connector portTop side part number markings
