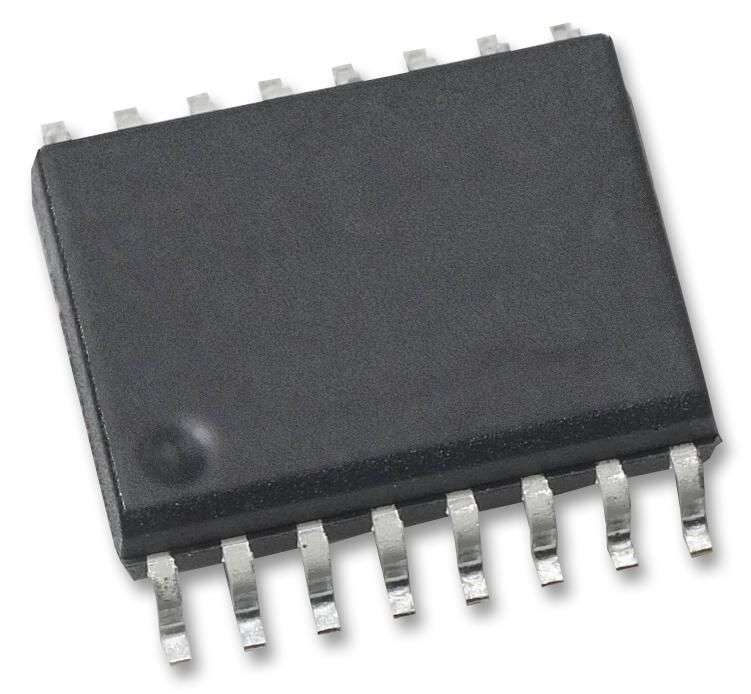

Broadcom (AEAT-6600-T16) Programmable Angular Magnetic Encoder

Programmable Angular Magnetic Encoder, 10 Bit to 16 Bit, 3.3 V / 5 V, TSSOP-16Product Overview10 to16bit programmable angular magnetic encoder IC is a contact less magneticrotary encoder for accurate angular measurement over a full turn of 360 degrees.5V or 3.3V operation3-wire or 2-wire SSI interface mode for absolute outputIncremental ABI or UVW and PWM output modesUser-programmable zero position, direction & index pulse widthEasy magnet alignment with magnetic field strength output and alignment modePower-down mode to reduce current consumptionProduct InformationIC Function: EncoderSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VIC Package Type: TSSOPNo. of Pins: 16PinsOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: -
