Product details

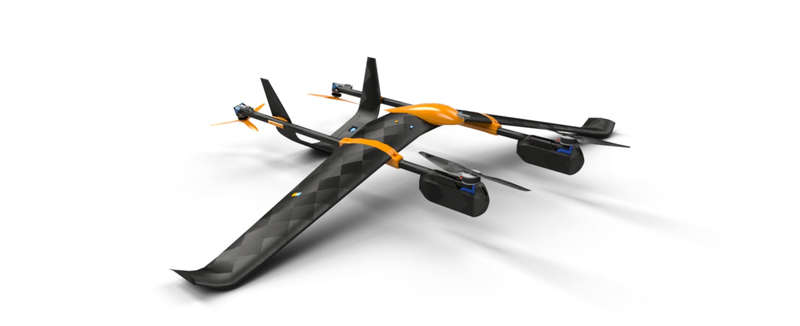

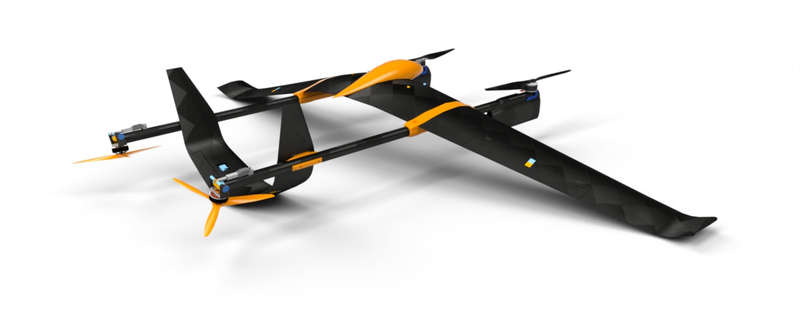

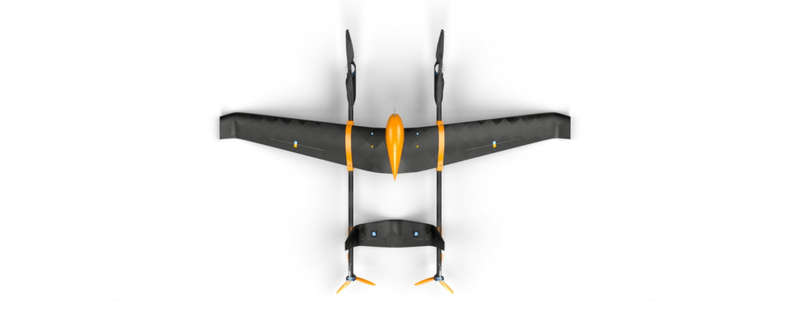

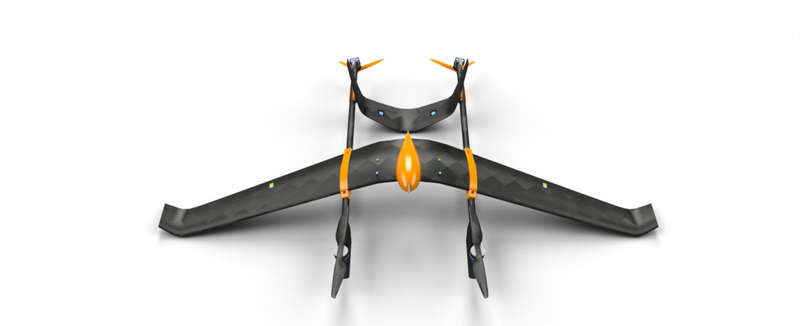

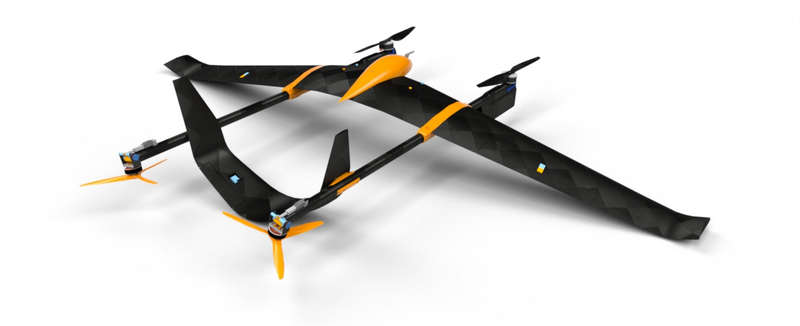

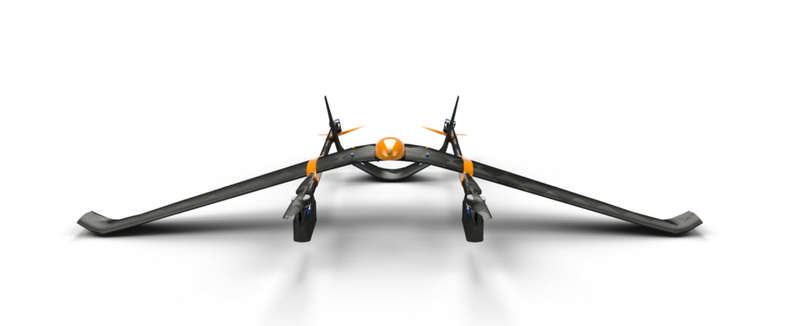

The Cob eVTOL is a 4-motor aircraft that provides tilt-motor forward flight with magnetically locked VTOL motors. The aircraft has superior gust resistance in hover due to its wing anhedral, which also serves as landing structure. The aircraft can be assembled in under 5 minutes and can be operated with a handheld groundstation. The groundstation provides video streaming for up to 15 km of range (ICASA certified) and autonomous mission programming and control. The aircraft is assembled from 5 parts (inner section, 2 wing tips, and 2 forward battery packs) and is provided with spare batteries and battery charger. The fully loaded crate/container weighs less than 30 kg and provides for many hours of surveillance.
Minimum specifications:
3 minutes of hover endurance and 2 hours of forward flight endurance
12 kg Maximum take-off weight
18 m/s forward flight speed
Cob eVTOL major electrical components:
| 2x Foxtech 22Ah 6s Li-ion battery (4kg of battery) |
| T-Motor MN5008 400 kv motor |
| T-Motor 40A Air ESC |
| T-Motor Combo: 2x Motors, Flame 70A (prop. Lockable) escs's & carbon prop's. |
| Pusher, tractor pair JXF 14x10 wooden prop. |
| CubePilot cubeOrange+ with power brick mini |
| Sensirion SDP3x airspeed sensor |
| Here3+ GPS |
| HiTec HS-5065MG servo |
| Hobbywing 5v 3A UBEC |
| HiTec Servo HS-7950TH |
| Unilight 14mm navigation LED (14W) |
| LightWare LW20/c Lidar |
Groundstation:
| Herelink HD video transmission system |
