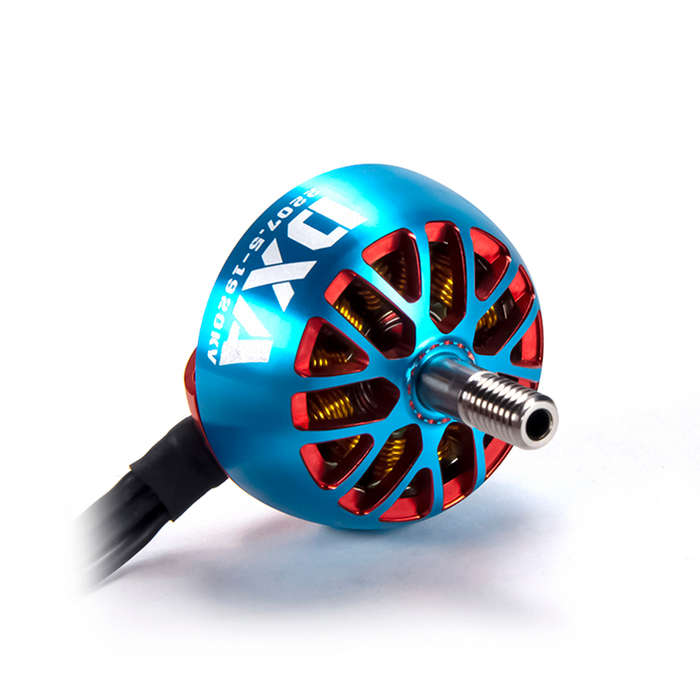

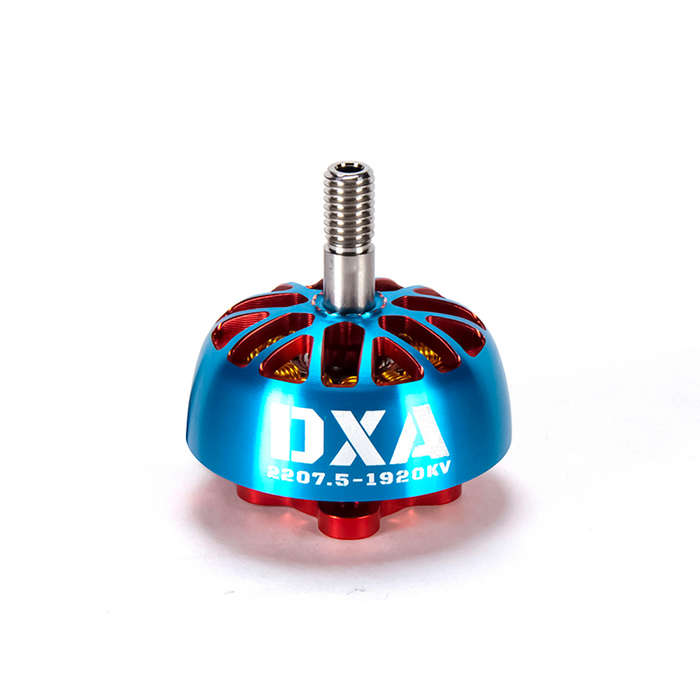

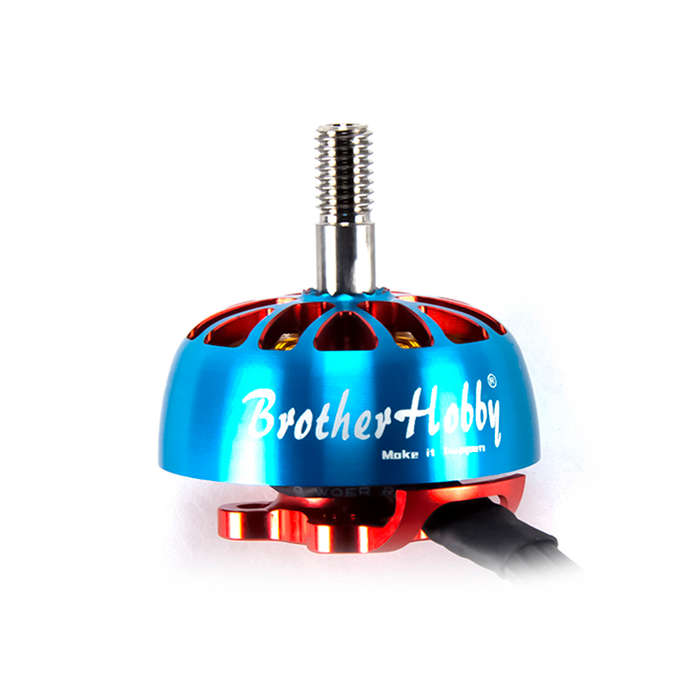

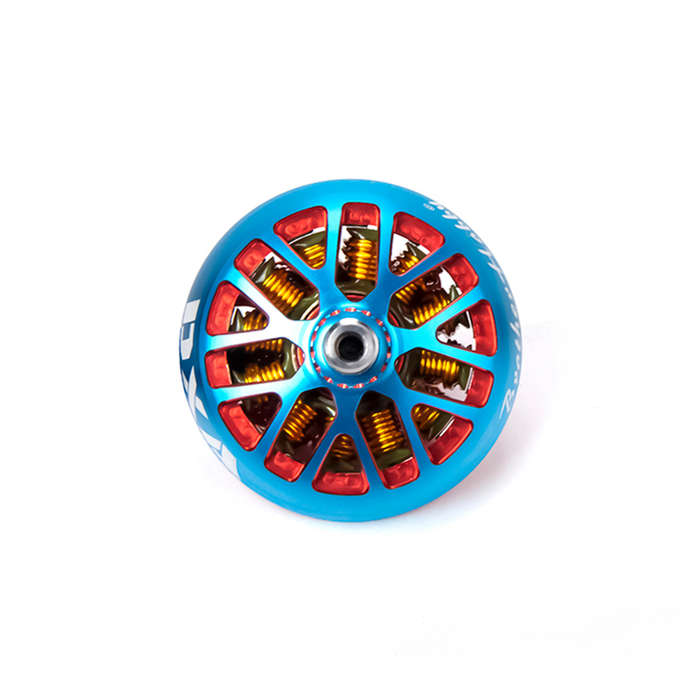

BrotherHobby DXA 2207.5 1750KV 1920KV 6S Brushless Motor for RC Drone FPV Racing (KV: 1750KV)
Closed

BrotherHobby DXA 2207.5 1750KV 1920KV 6S Brushless Motor for RC Drone FPV Racing (KV: 1750KV)

New 12 were available
R726.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
609838254

SELECTED OPTION:
KV: 1750KV

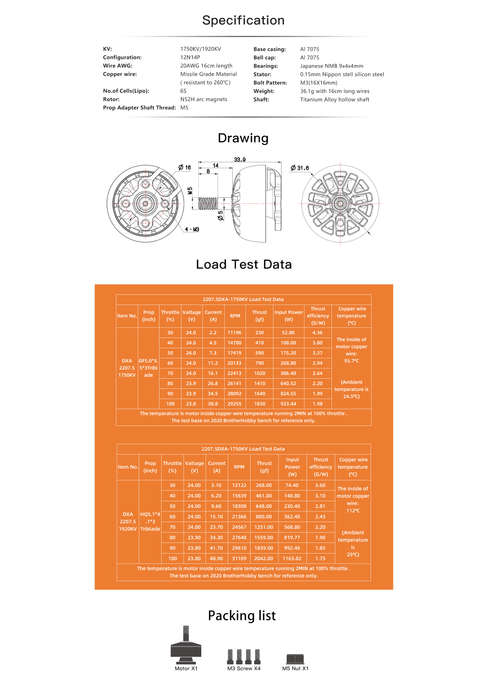

Specification:

Brand: BrotherHobby

Model: DXA 2207.5

Item Name: 2207.5 1750KV 1920KV 6S Brushless Motor

KV: 1750KV/1920KV ( Optional)

Configuration: 12N14P

Wire AWG: 20AWG 16cm Length

Copper Wire: Missile Grade Material (resistant to 260a??)

No.of Cells(Lipo): 6S

Rotor: N52H arc magnets

Prop Adapter Shart Thread: M5

Base Casing: AI 7075

Bell Cap: AI 7075

Bearings: Janpanese NMB 9*4*4mm

Stator: 0.15mm Nippon Stell Silicon Steel

Bolt Pattern: M3(16*16mm)

Shaft: Titanium Alloy Hollow Shaft

Weight: 36.1g with 16cm Long Wire

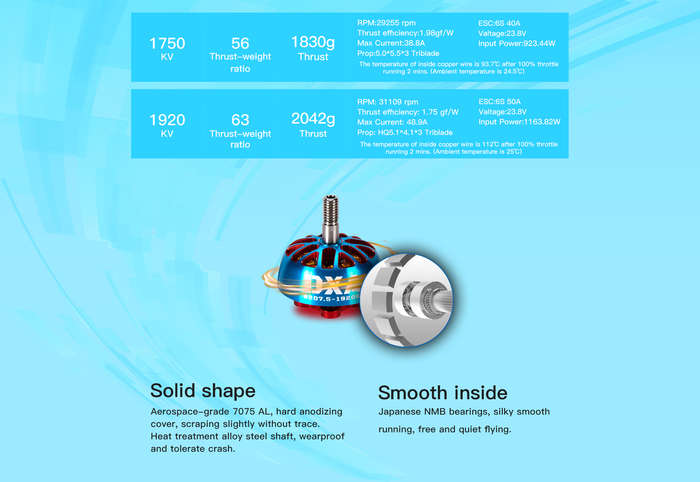

1750KV Version?

Thrust-weight Ratio: 56

Thrust: 1830g

RPM: 29255 rpm

Thrust Efficiency: 1.98gf/W

Max Current: 38.8A

Recommend Prop: 5.0*5.5*3 Triblade

Recommend ESC: 6S 40A

Voltage: 23.8V

Input Power: 923.44W

The temperature of inside copper wire is 93.7a?? after 100% throttle running 2 mins.(Ambient temperature is 24.5a??)

?

1920KV Version?

Thrust-weight Ratio:63

Thrust: 2042g

RPM: 31109 rpm

Thrust Efficiency: 1.75gf/W

Max Current: 48.9A

Recommend?Prop: HQ5.1*4.1*3 Triblade

Recommend?ESC: 6S 50A

Voltage: 23.8V

Input Power: 1163.82W

The temperature of inside copper wire is 112a?? after 100% throttle running 2 mins.(Ambient temperature is 25a??)



Features:

1. Missile grade high purity electrolytic silver wire.

2. 0.15mm ultrathin non-oriented silicon steel.

3. N52H high-performance rare earth arc magnet, thickness design.


Package Included:

1X??BrotherHobby DXA 2207.5 1750KV OR 1920KV Motor(Optional)

4X? M3 Screws

1X? M5 Nut
