Brotherhobby VY 1507 1550KV 3100KV 6S / 1900KV 4150KV 4S Brushless Motor for RC Dron... (KV: 3100KV)
Closed

Brotherhobby VY 1507 1550KV 3100KV 6S / 1900KV 4150KV 4S Brushless Motor for RC Dron... (KV: 3100KV)

New 12 were available
R654.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
609837628

SELECTED OPTION:
KV: 3100KV

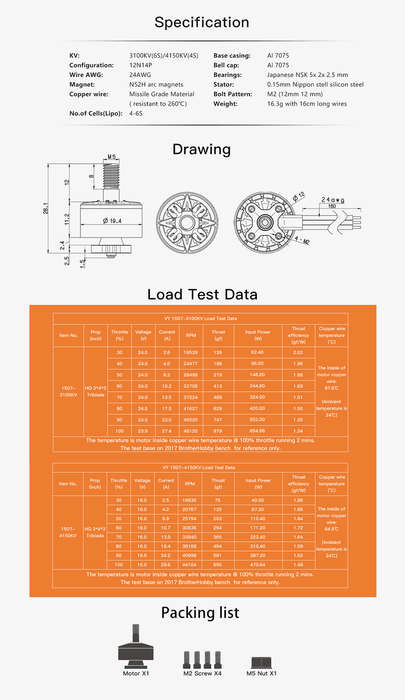

Specification:
Brand Name: Brotherhobby

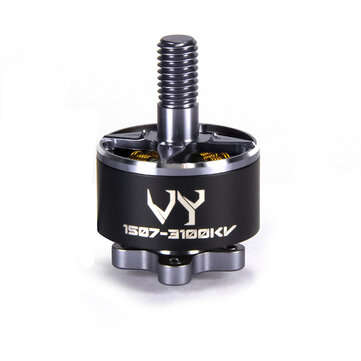

Model: VY 1507
Item Name:??1507 1550KV 3100KV 6S / 1900KV 4150KV 4S Brushless Motor?
Version: CW Screw Thread
Quantity: 1 PC
KV: 3100KV/ 4150KV/ 1550KV/ 1900KV ( Optional)
No. of Cells (Lipo): 6S@3100KV &1550KV ; 4S@4150KV &1900KV
Configuration: 12N14P
AWG: 24# 160mm Length
Shaft Diameter: 5mm
Stator Height: 7mm
Magnet: N52H
Bearing: NSK 5x2x2.5mm

KV1550KV3100KV1900KV4150KV
No. of Cells (Lipo)
6S6S4S4S
Internal Resistance
497.4m??136.8m??
297.2m??
84.98m??
Idle Current
0.4A(10V)0.74A(8V)0.53A(10V)1.03A(8V)
Max. Current13.5A27.4A
14.9A?29.6A
Max. Power
324W654.86W
236.91W?470.64W
Recommend Propeller
5 Inch3 Inch?5 Inch3 Inch
Recommend ESC
6S 15A6S 30A
4S 15A4S 30A


Copper magnet wire:?260 a?? Military Missile Grade

Dynamic balance? ?requirement standards: Less than 6mg?
Recommend ESC: 6S 30A @3100KV ; 4S 30A?@ 4150KV
Motor Dimension: 19.4x28.1mm?
Weight: 16.3g ( Include Cable)??

Package Included:
1x Brotherhobby VY 1507 Motor
1x M5 Nut
4x M2 Screws
