BSIDE A5 High Precision Intelligent Digital Pen Universal Table(Standard Without Battery)

1. Voltage: 0-620V, 0.8-620V (auto mode)
2. Voltage frequency: 0-9999Hz
3. Current: 1-610mA

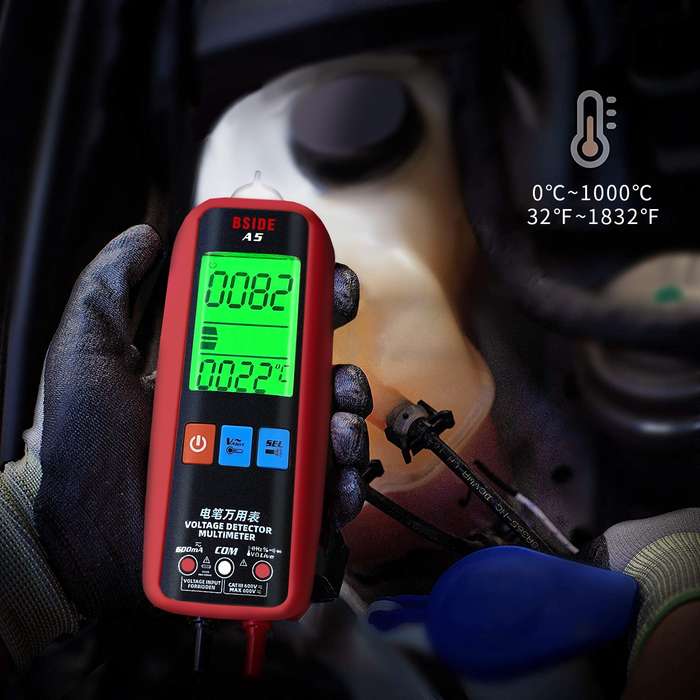

4. VFC frequency conversion voltage: 10-620V
5. Temperature test: 0-1000 degrees Celsius
6. Resistance: 0 ohm-60 megohm
7. Capacitance: 0.5ￎﾼf - 60mf
8. Display: up to 5999
9. Auto shutdown: about 15min
10. Power supply: 1.5V AAA x 2 (not included)
11. Size: about 14 x 5.4 x 3.3cm
12. Weight: about 92g

Features:

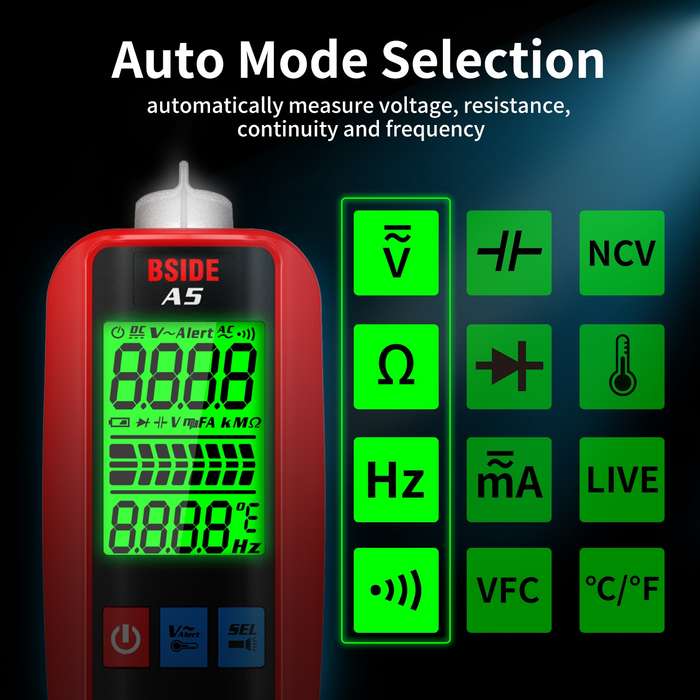

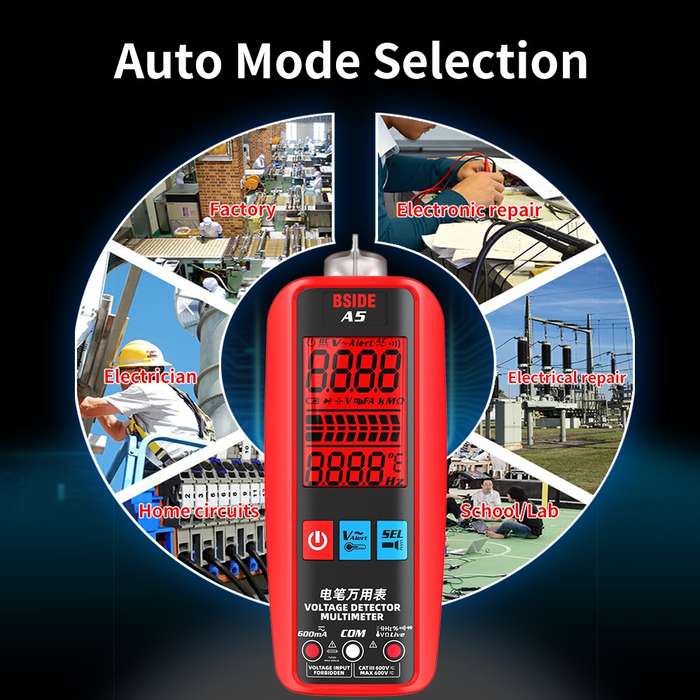

1. Automatic mode selection, automatic measurement of voltage, resistance, continuity, frequency

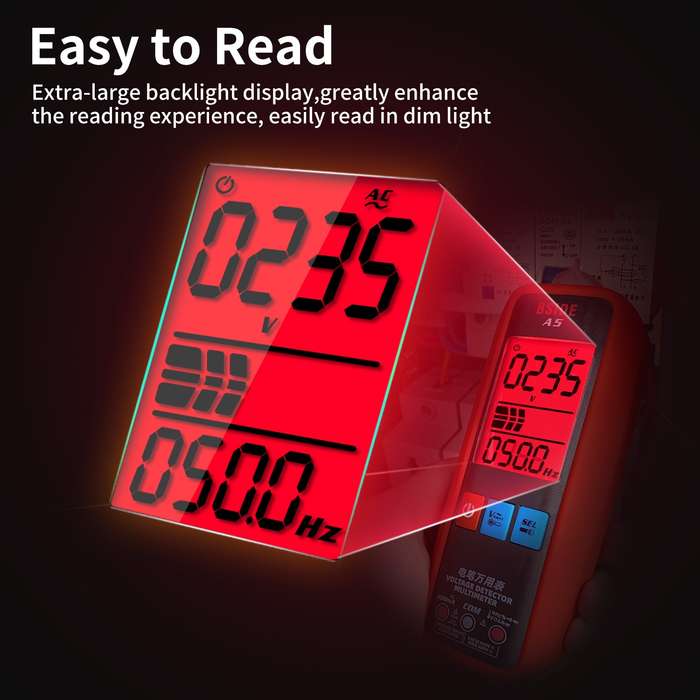

2. Backlit display, easy to read in dim light
3. Amperage intelligent identification, inserted into the amperage port for measurement, can automatically switch to AC/DC amperage test mode (no need to switch)
4. Automotive circuit testing, connect the test leads to the voltage, the meter will automatically measure the DC voltage
5. VFC function can measure the output voltage of the inverter
6. Automatic measurement of AC voltage
7. Capacitance test, please discharge the capacitor before measuring the capacitance


TBD0603727601A
