Description:
Bside ACM91 TRMS AC/DC Clamp Meter Auto-Ranging 6000 Counts 0.001A Resolution Current Frequency Temperature Tester with Pocket Clip
Design concept: function integration, test integration.
AC/DC voltage, AC/DC ampere, AC/DC Current (by jaw minimum 1mA), Temperature, Frequency, Capacitance, DC microampere, Resistance, LIVE wire check, voltage alert, with such a small size it meets the rules of the state has made the most perfect functions. LIVE wire check function and V ~ alert function conveniently quickly identify mains connection status.Display double line shows, can display voltage or current and frequency at the same time. LoZ, low impedance voltage detection, very suitable for maintenance industry

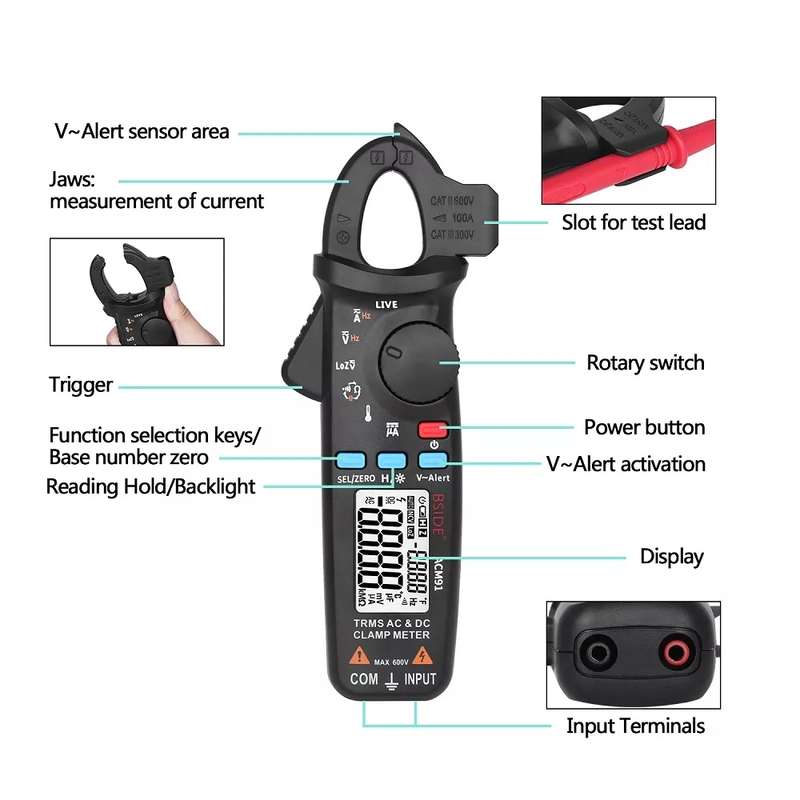

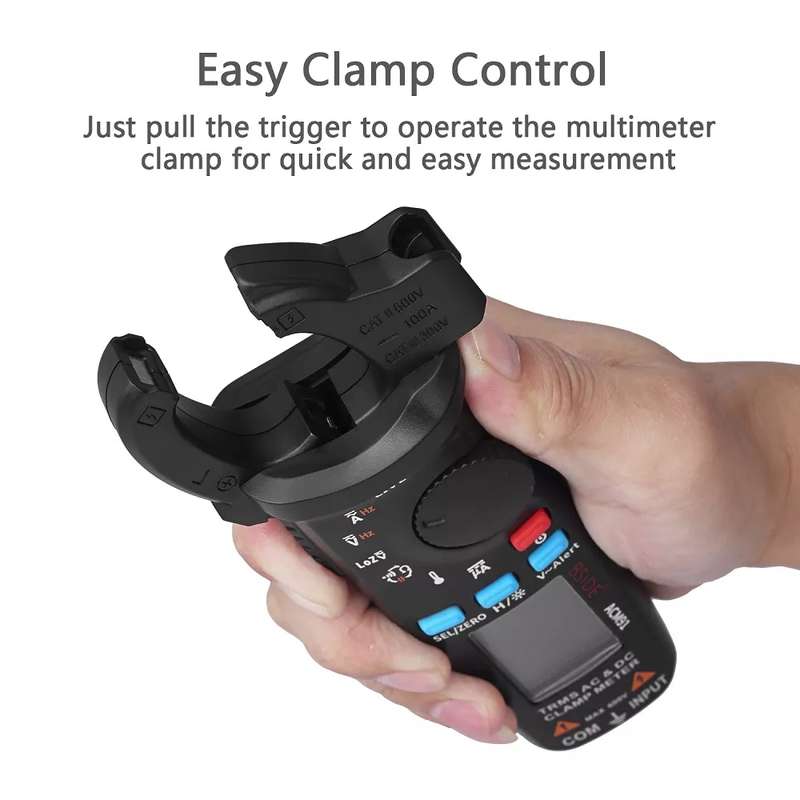

We optimize the jaw, increased the pens and hustle, easy one-handed operation. We optimize jack position, better security and aesthetics, reduced the foreign body into the dust. We have added back hooks, convenient to carry
Fetaures:
Measure both DC current and AC current (minimum 1mA by jaws)
Measure microamps A (minimum 0.1A by terminals)

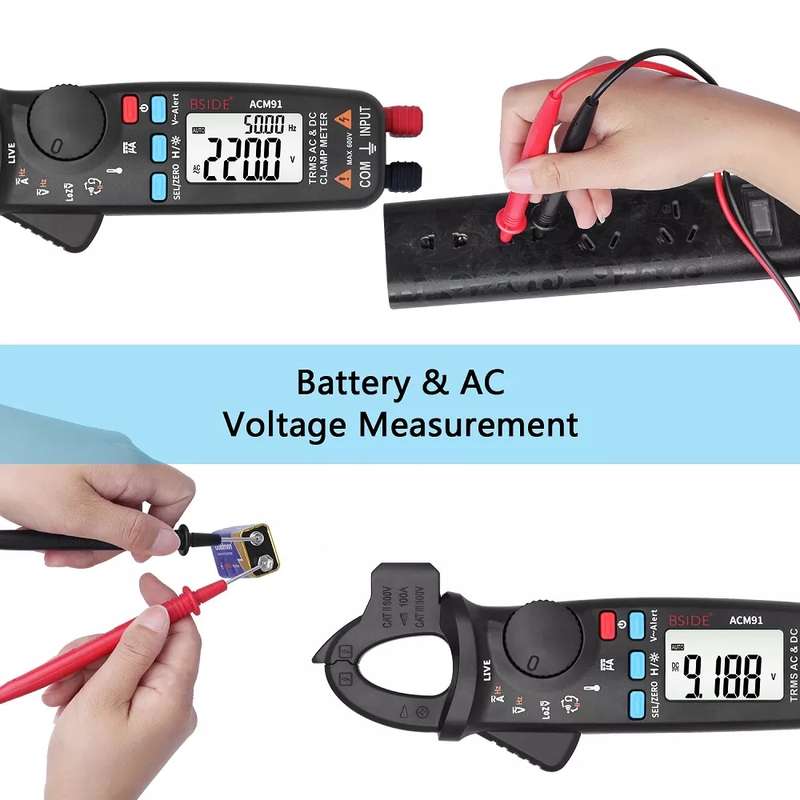

Measure AC and DC voltage
Measure frequency
Low impedance voltage measurement
Measure resistance, continuity and capacitance
Measure temperature
Live check function
V-alert measurement
Clamp on frequency function
Auto range
Data hold
Auto power off
Back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II
Specification:
Color: Blue
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ﾡ(3.0%+5counts)
DC current(uA):0-200uA 0.1uA ﾡ(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ﾡ(2.5%+5counts)
In 6A range, resolution is 0.001A, the test range is 0.001A~6A.
In 60A range, resolution is 0.01A, the test range is 0.01A~60A.
In 100A range, resolution is 0.1A, the test range is 0.1A~100A.
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ﾡ(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ﾡ(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600/6k/60k/600k/6M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ﾡ(1.0%+3counts)
60Mohm 0.01Mohm ﾡ(1.2%+20counts)
Capacitance: 600uF/6000uF 0.1uF/1uF ﾡ(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ﾡ(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ﾡ(1.0%+5counts)
Buzzer: If the resistance is less than 30, the continuity beeper sounds.
Temperature: -20ﾣC~500ﾣC 1ﾣC/2ﾣF (2.0%+2counts)
Jaw Capacity: 20mm

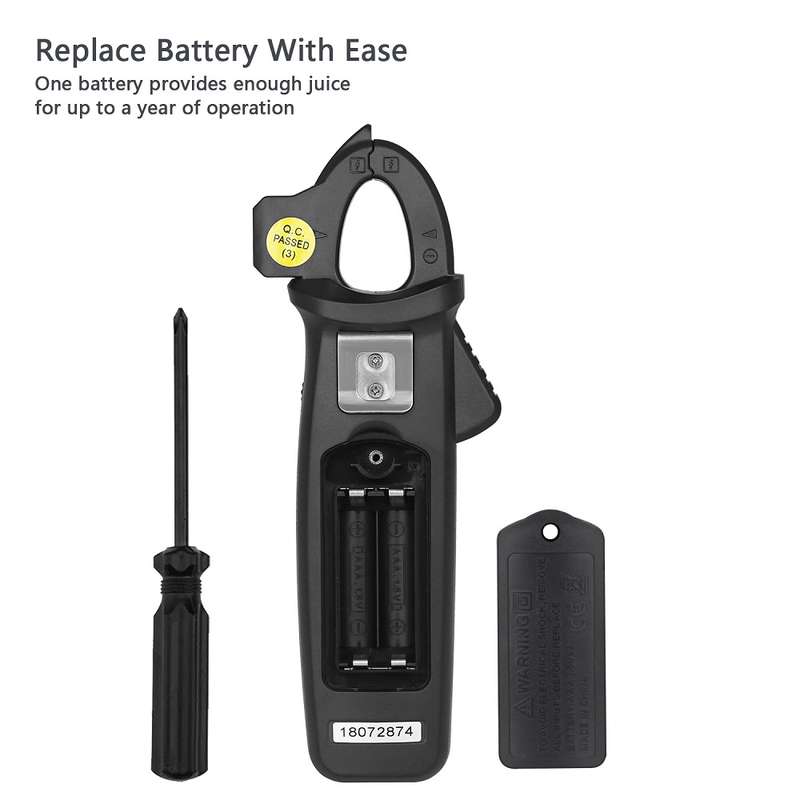

Power: 1.5V (AAA) x 2 (not included)

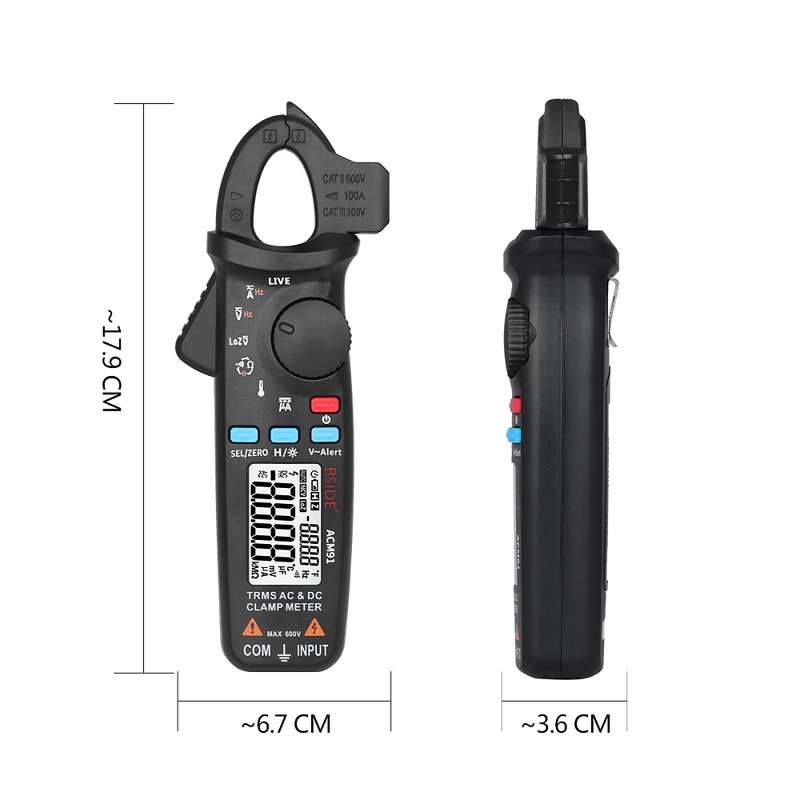

Size: 179mm x 67mm x 36 mm
Weight: 137g

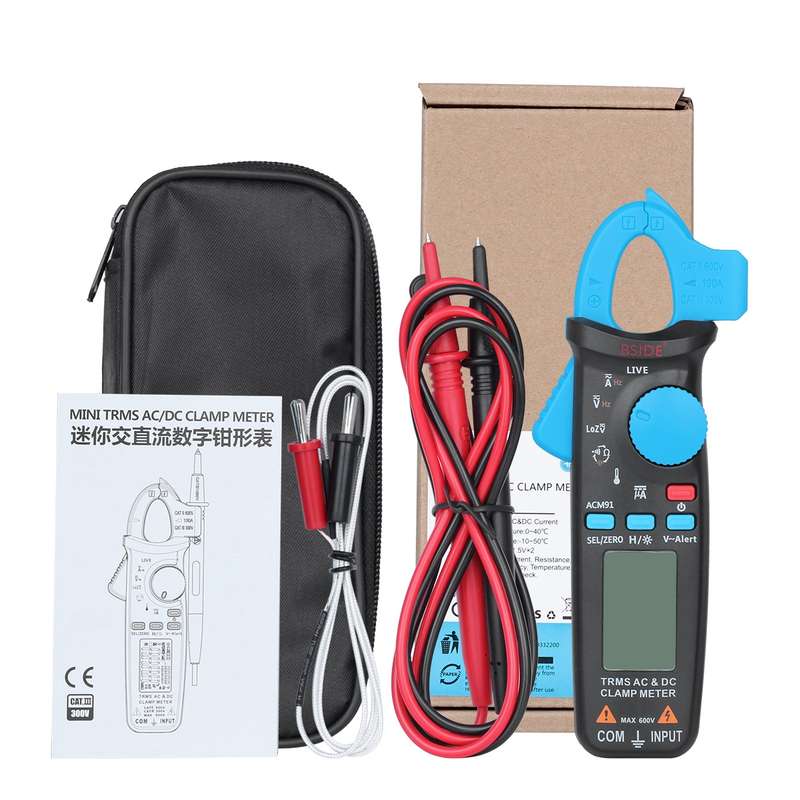

Package Included:
1 x Digital Clamp Meter
1 x Test Leads
1 x Thermocouple
1 x User Manual
1 x Carrying Case
Detail Pictures:
