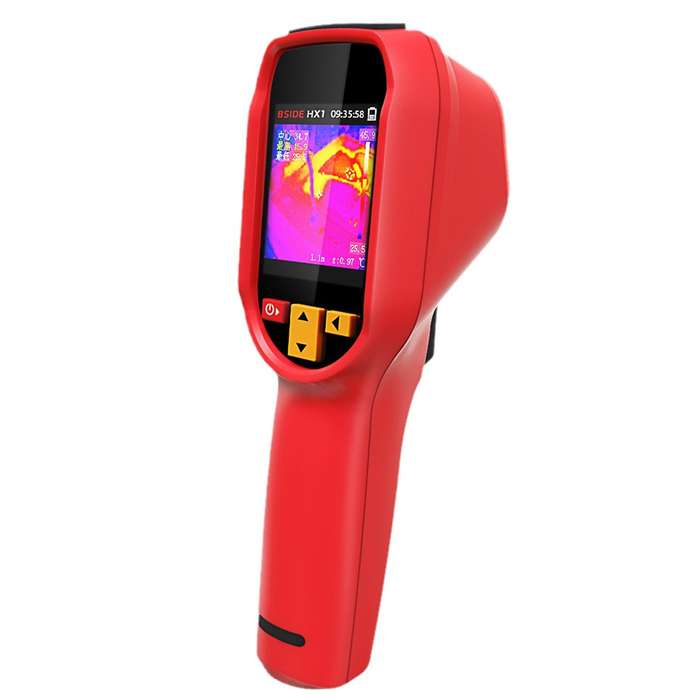

BSIDE HX1 Handheld Thermal Imaging Device Power Non-Contact Thermometer
1. Sensor type: vanadium oxide (VOx) microbolometer
2. Response band: 8-14um
3. Thermal image resolution: 240 x 240 pixels
4. Noise equivalent temperature difference: within 60mK (25 degrees Celsius, F 1.0)
5. Field of view (FOV): 50.0 degrees (H) x 50 degrees (V)/72.1 degrees (D)
6. Spatial resolution: 8.89 mrad
7. Frame rate: 25Hz
8. Focal length of imaging lens: 1.35mm
9. Temperature measurement focal length: 0.3m-3m adjustable
10. Temperature measurement range -20 - 550 degrees Celsius
11. Temperature measurement accuracy: about 2 degrees Celsius or about 2% of the reading (take the larger value of the reading)
12. Temperature measurement units: degrees Celsius, degrees Fahrenheit, Kelvin
13. Temperature measurement resolution: 0.1 degrees Celsius
14. Emission rate: 0.01-1.00 adjustable

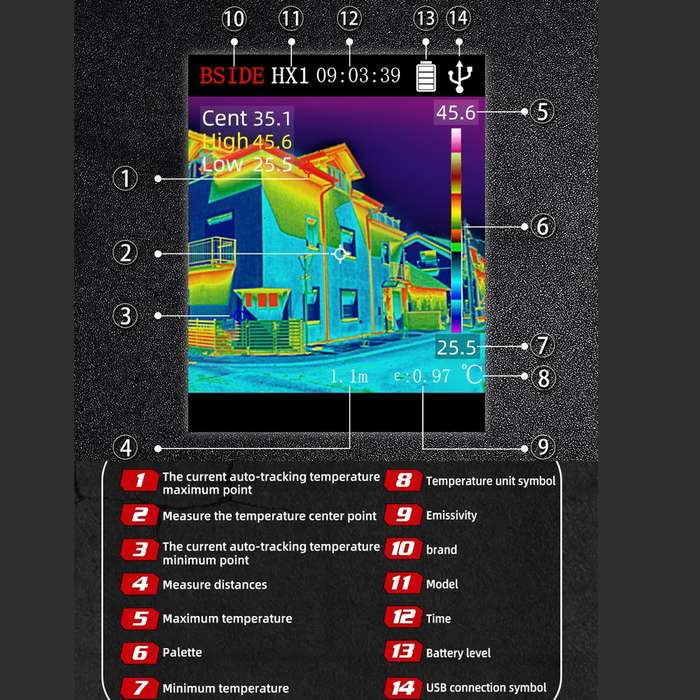

15 Temperature measurement display: centre point temperature measurement, high and low temperature tracking
16. Display: 2.4 inch TFT LCD
17. Display resolution: 320 x 240
18. Laser indication: support
19. Temperature alarm: screen font colour alarm
20. Image storage: built-in memory card
21. Number of image files: 30000
22. Image format: BMP picture
23. Focus mode: focus-free
24. Hardware Interface: Type-C USB

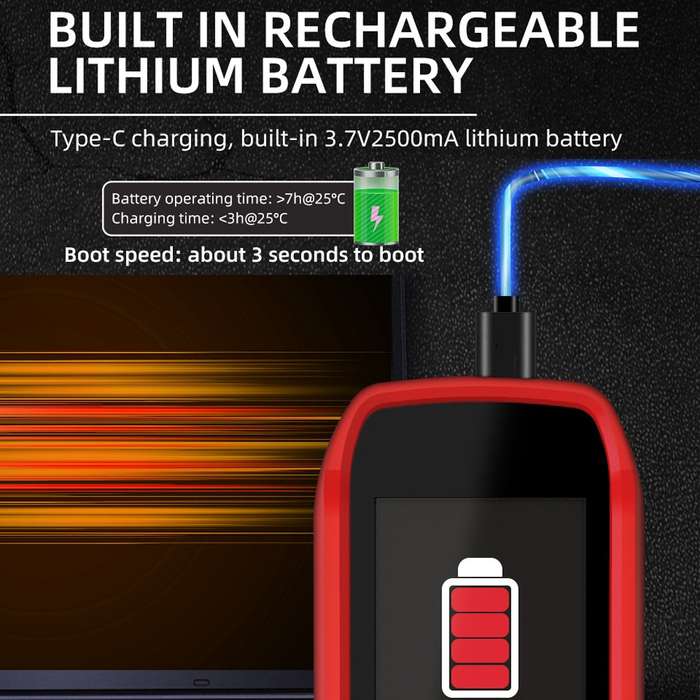

25. Battery type: rechargeable lithium battery (3.7V/2500mAh)
26. Battery operating time: more than 7h (25 degrees Celsius)
27. Charging time: less than 3h (25 degrees Celsius)
28. Charging voltage/current: 5V/2A
29. Auto shutdown: off (default), can be set 10/20/30/40/50/60min
30. Operating temperature: -10 - 50 degrees Celsius
31. Storage temperature: -40 - 70 degrees Celsius
32. Operating humidity: within 85%RH (non-condensing)
33. Color palette: white hot, black hot, fusion 1, rainbow, fusion 2, iron-red 1, iron-red 2, sepia, colour 1, colour 2, ice and fire, rain, green hot, red hot, dark blue

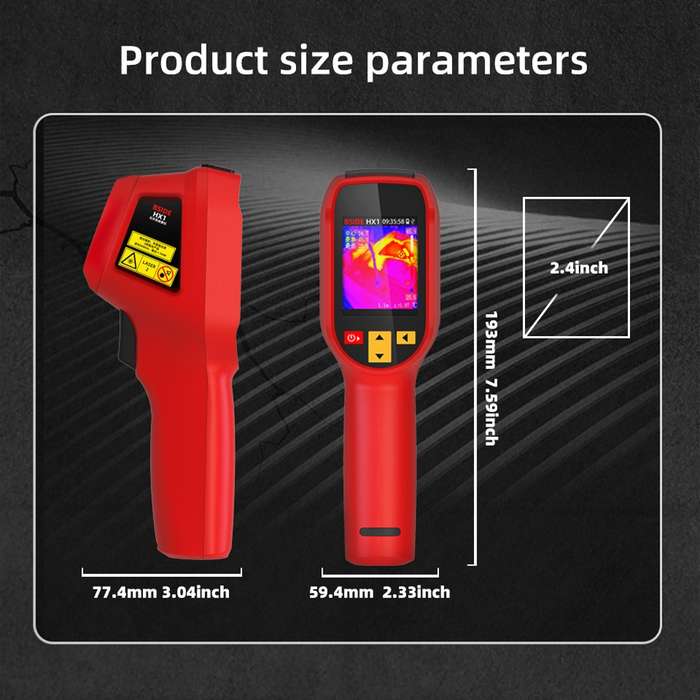

34. Size: about 19.3 x 5.94 x 7.74cm
35. Weight: about 277g
Features:
1. Infrared thermal camera can detect the temperature of the surface of the object, and the temperature distribution in the form of images of different colours, through the high-definition display screen display
2. Full-viewing angle TFT colour LED screen, more intuitive
3. Real-time image transmission, different temperatures in different colours to distinguish between high and low, can be modified to 15 different pseudo-colour mode
4. Work temperature measurement scene detection, not the environmental impact
5. Over-temperature red screen alarm, to reach a certain value will trigger the screen alarm, you can eliminate the danger of occurring

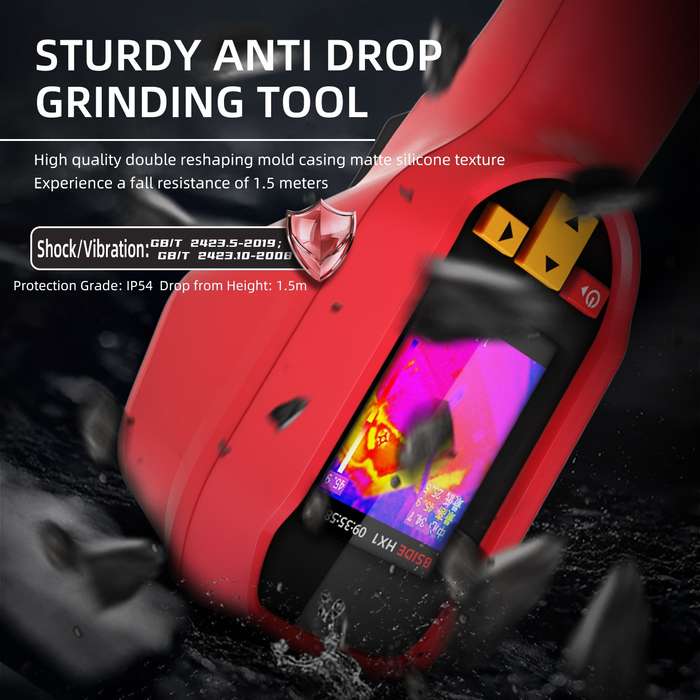

6. Double plastic mould case, frosted silicone texture, sturdy and drop-proof
Packing list:
- Thermal imaging camera x 1
- Charging cable x 1
- Storage bag x 1
TBD0605569801
