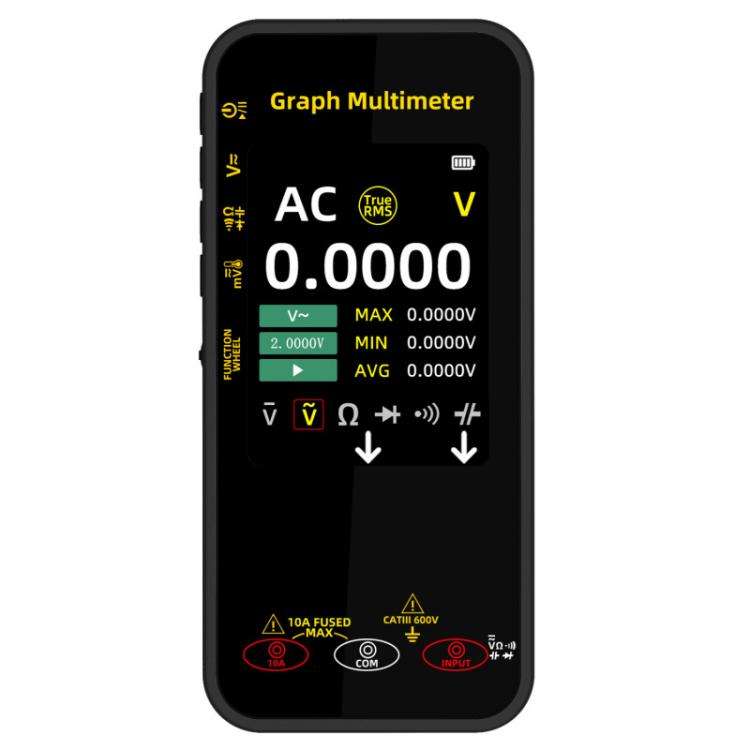

BSIDE S500 High-Precision Digital Graphic Recording Multimeter Color Screen 20000-Character Multi...

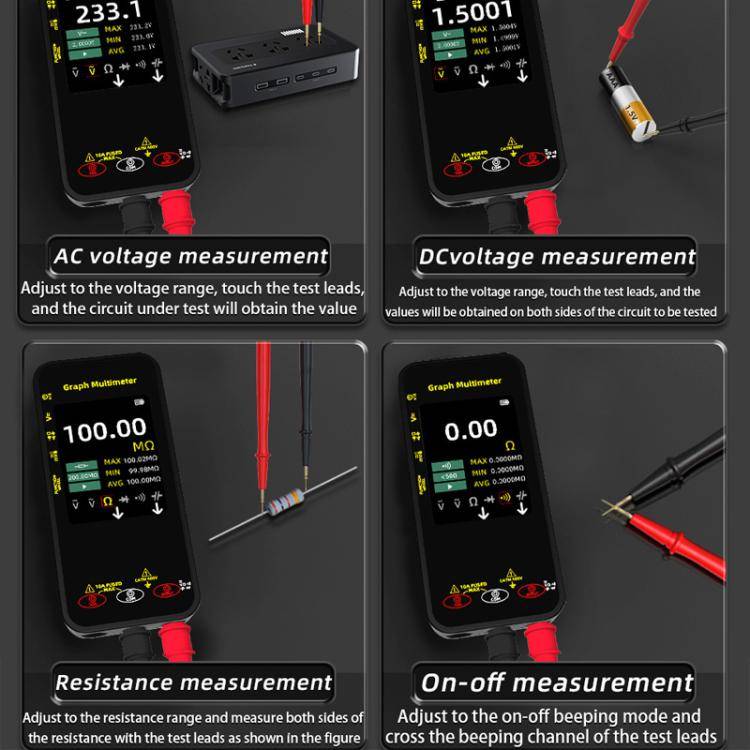

1. DC voltage (V) range/resolution: 2.0000V-1000V/0.0001-0.1V

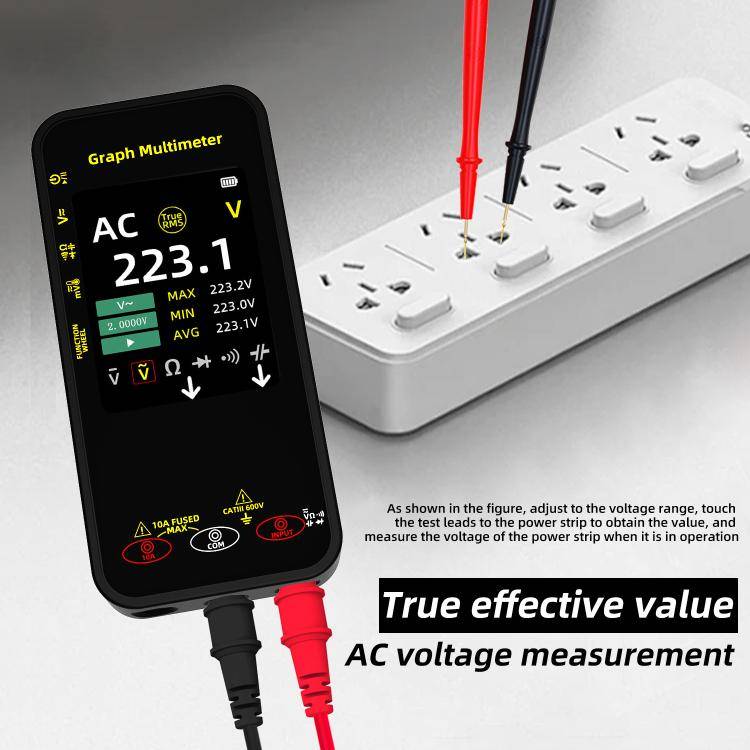

2. AC voltage (V) range/resolution: 2.0000V-750V/0.0001-0.1V
3. DC/AC voltage (mV) range/resolution: 20.000-200.00mV/0.001-0.01mV
4. Resistance range/resolution: 200.00 ohm/0.01 ohm, 2.0000-200.00 kilohm/0.0001-0.01 kilohm, 2.0000-200.00 megohm/0.0001-0.01 megohm
5. Capacitance range/resolution: 999.99nF/0.01nF, 9.999-999.99uF/0.001-0.01uF, 99.999mF/0.001mF
6. DC/AC current range/resolution: 2.0000-10.000A/0.0001-0.001A
7. AC current frequency response: 40Hz - 1kHZ
8. Temperature range/resolution: -20 - 1300 degrees Celsius/1 degree Celsius, -4 - 2372 degrees Fahrenheit/1 degree Fahrenheit

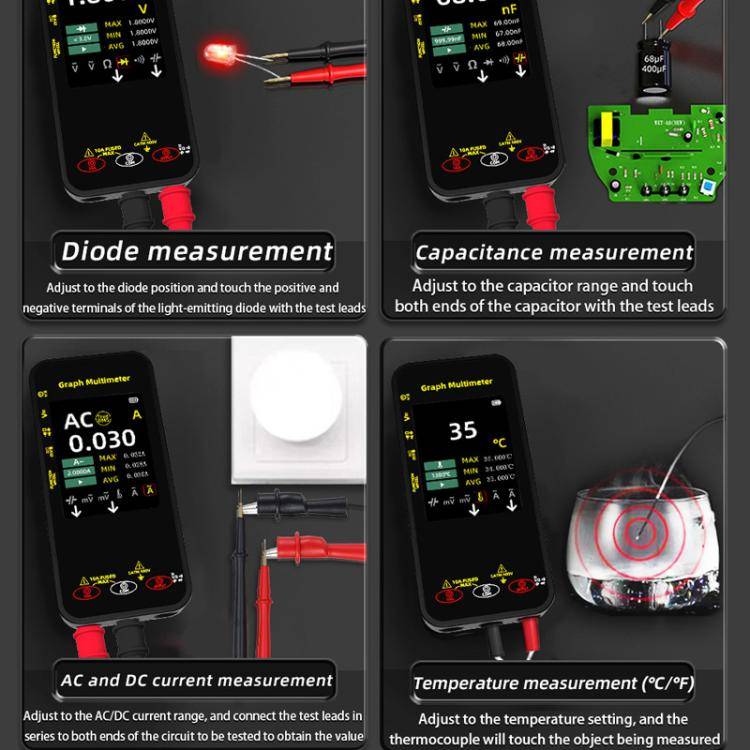

9. Function: diode, on/off, adjustable backlight brightness, low battery prompt, automatic shutdown
10. Display: 3.98-inch TFT capacitive touch screen
11. Display resolution: 320 x 480

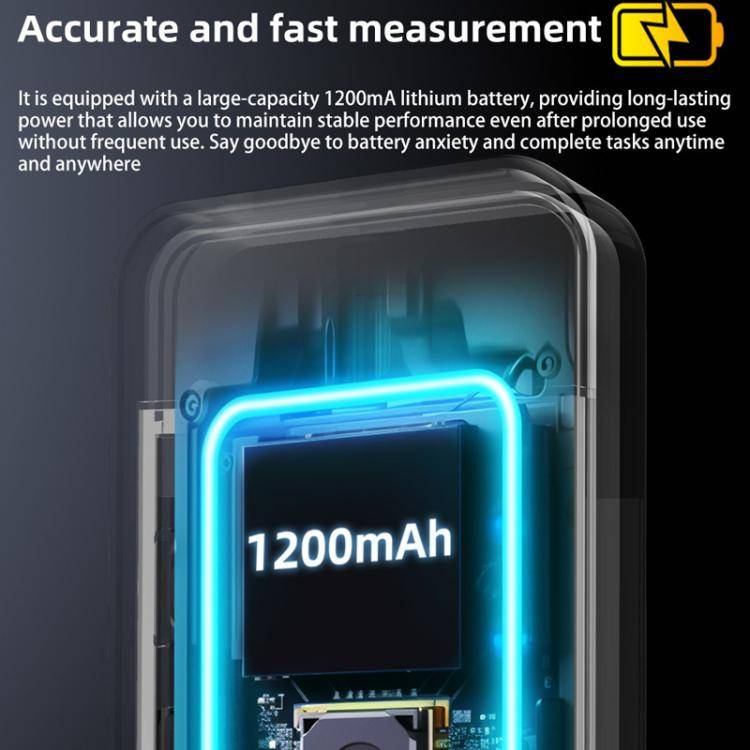

12. Battery capacity: 1200mAh
13. Working temperature: 0 - 40 degrees Celsius
14. Storage temperature: -20 - 60 degrees Celsius
15. Storage humidity: less than 80%RH
16. Working humidity: less than 75%RH

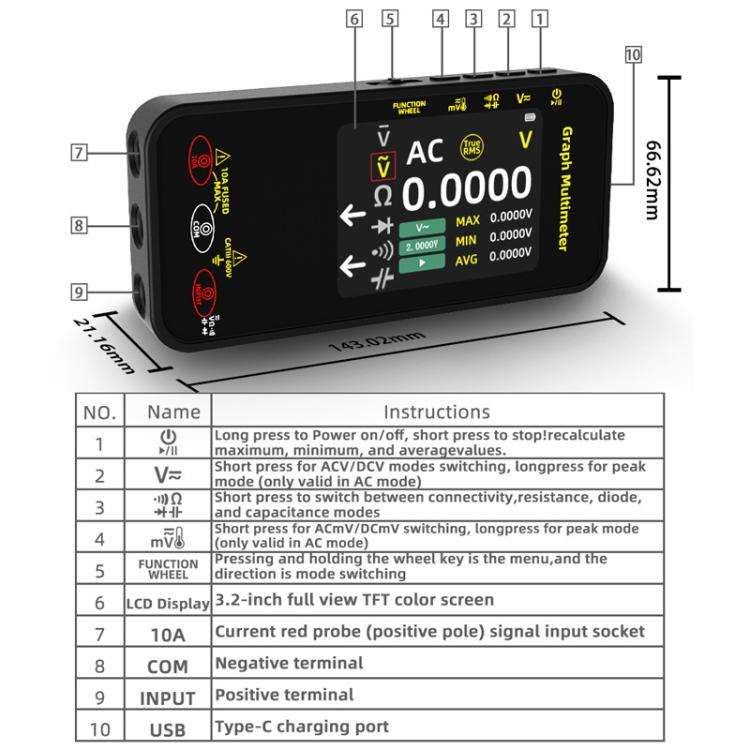

17. Size: about 14.3 x 6.66 x 2.12cm
18. Weight: about 159.5g

Features:

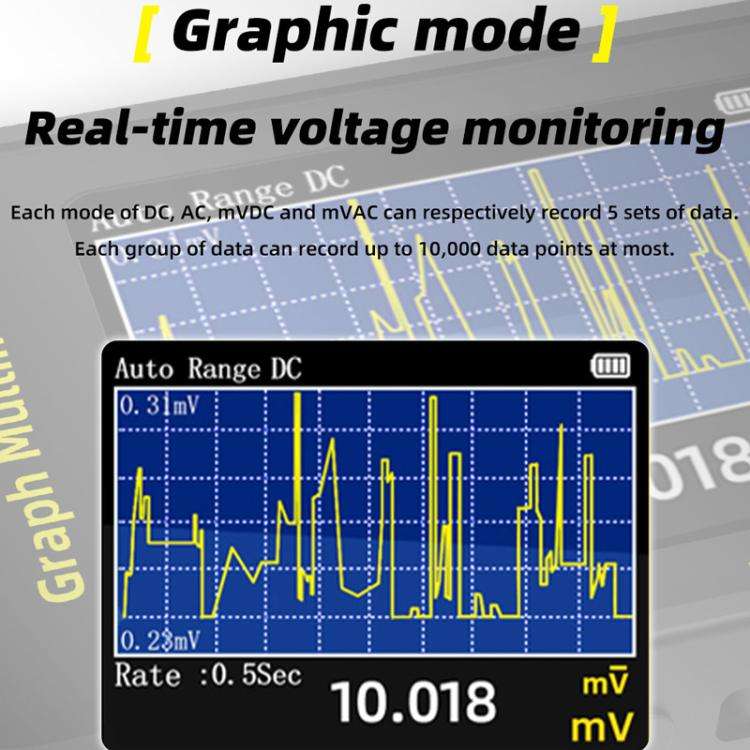

1. Graphic mode, real-time voltage monitoring, DC, AV, mVDC, mVAC each mode can record 5 sets of data, 0.31 each set of data can record up to 10,000 data
2. Smart chip, accurate and fast measurement

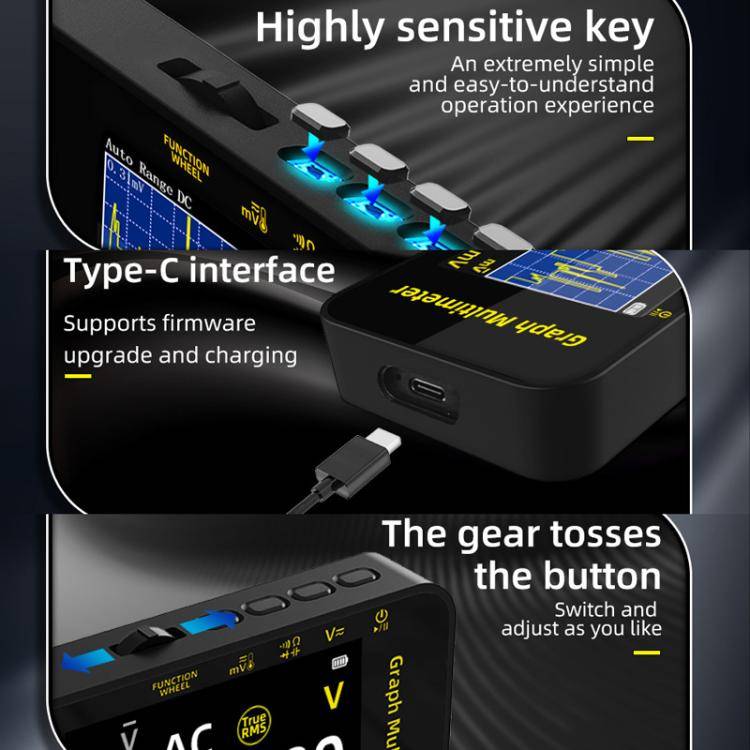

3. Highly sensitive buttons, super simple and easy to understand operation experience
4. Type-C interface, support firmware upgrade and charging
5. Gear toggle button, switch and adjust at will

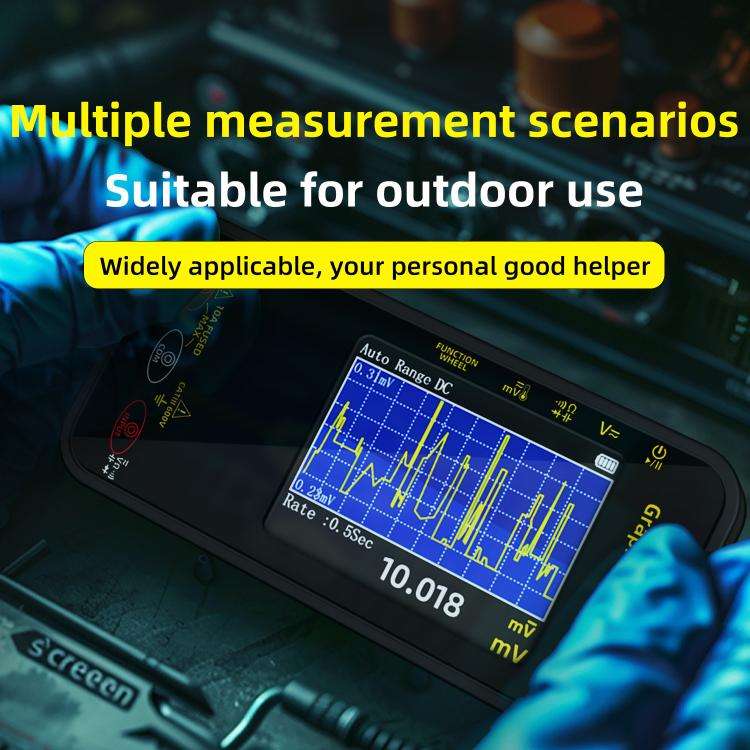

6. Multiple measurement scenarios, suitable for outdoor use

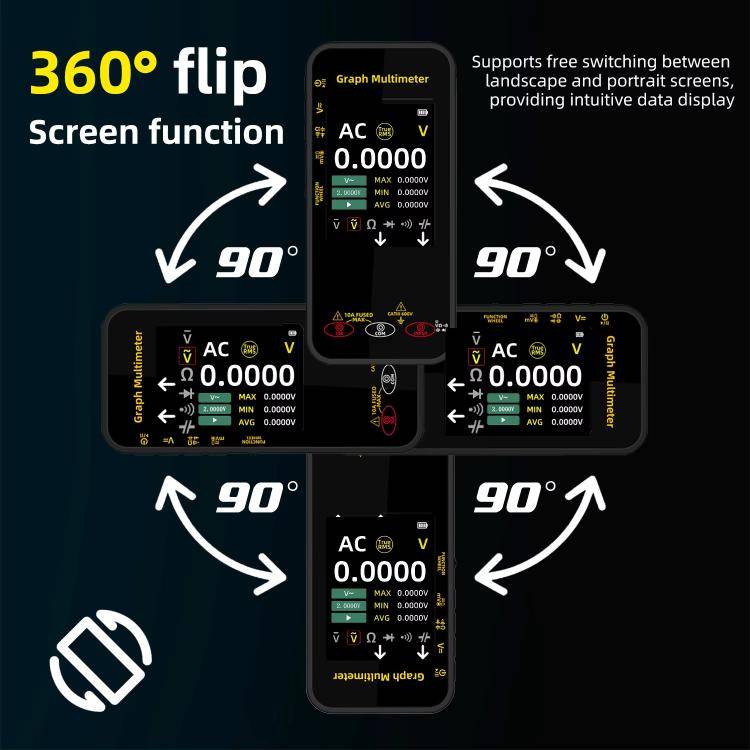

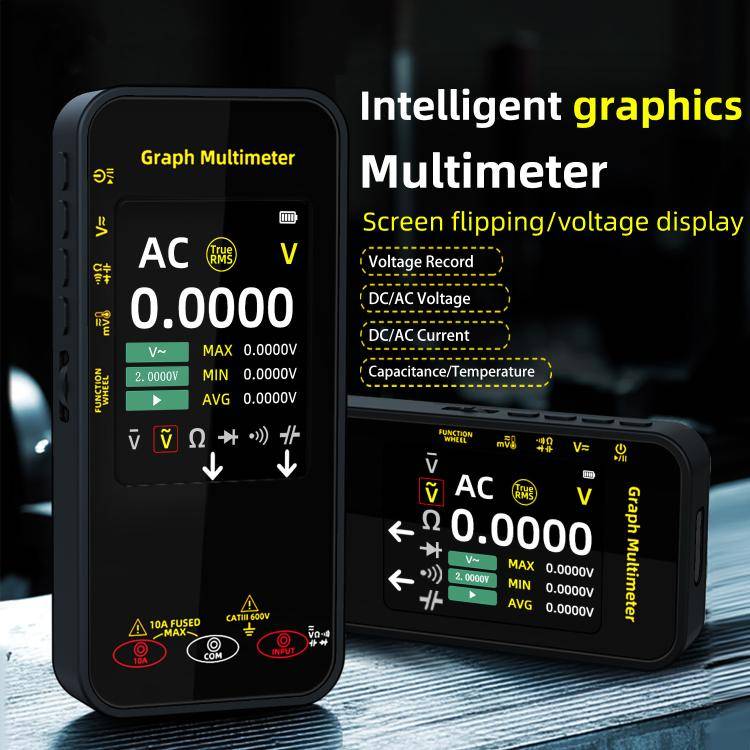

7. Support free switching between horizontal and vertical screens, intuitive data display

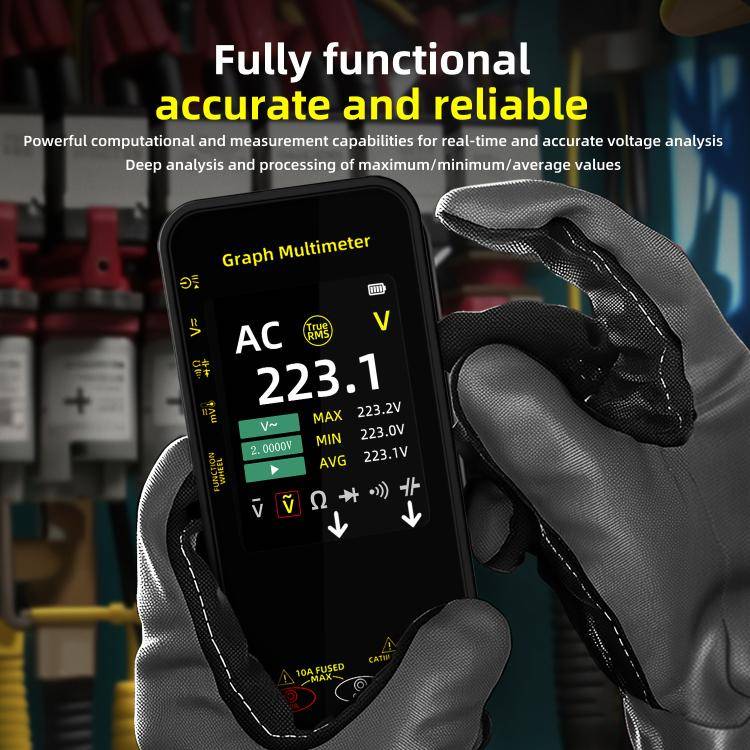

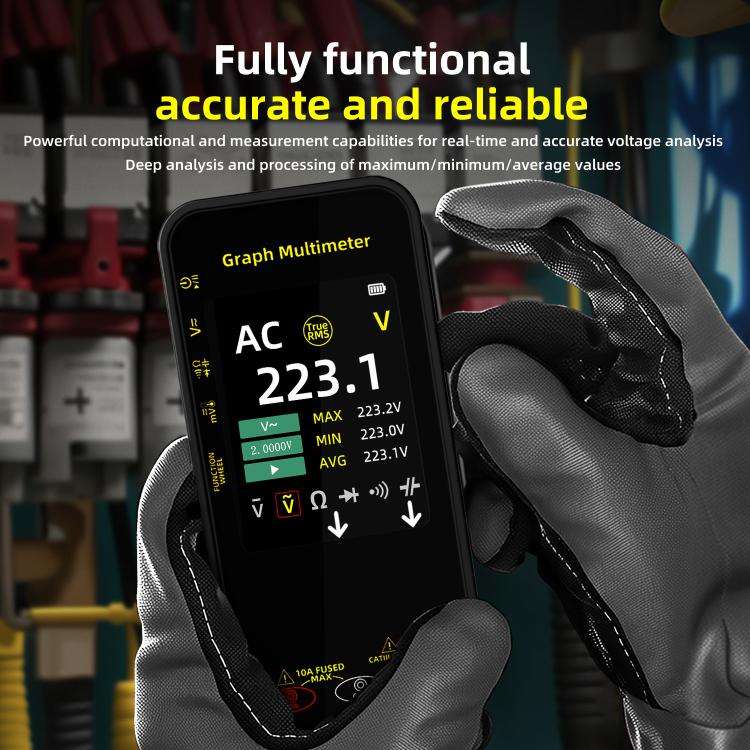

8. Powerful computing and measuring capabilities, capable of real-time and accurate voltage analysis, in-depth analysis and processing of maximum/minimum/average values

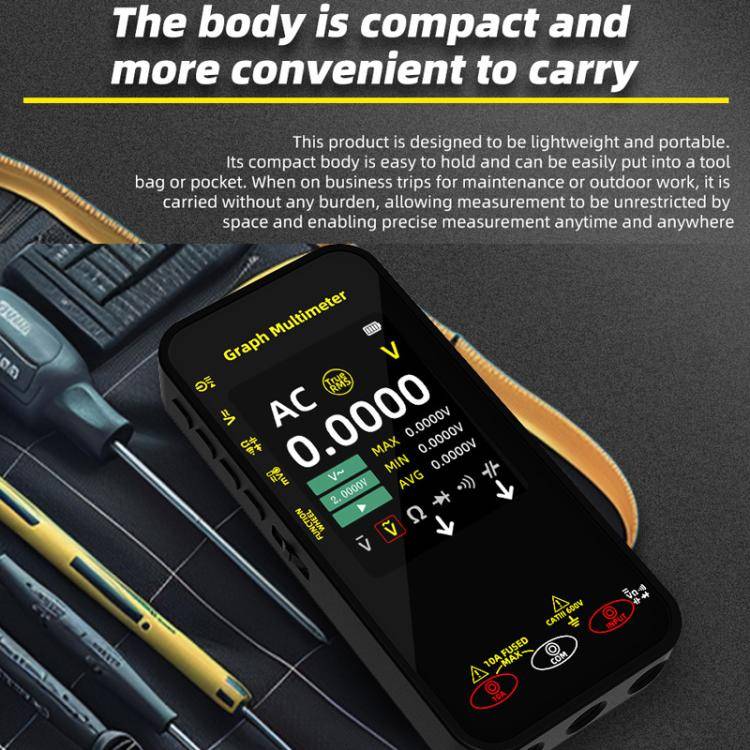

9. Compact body, more convenient to carry

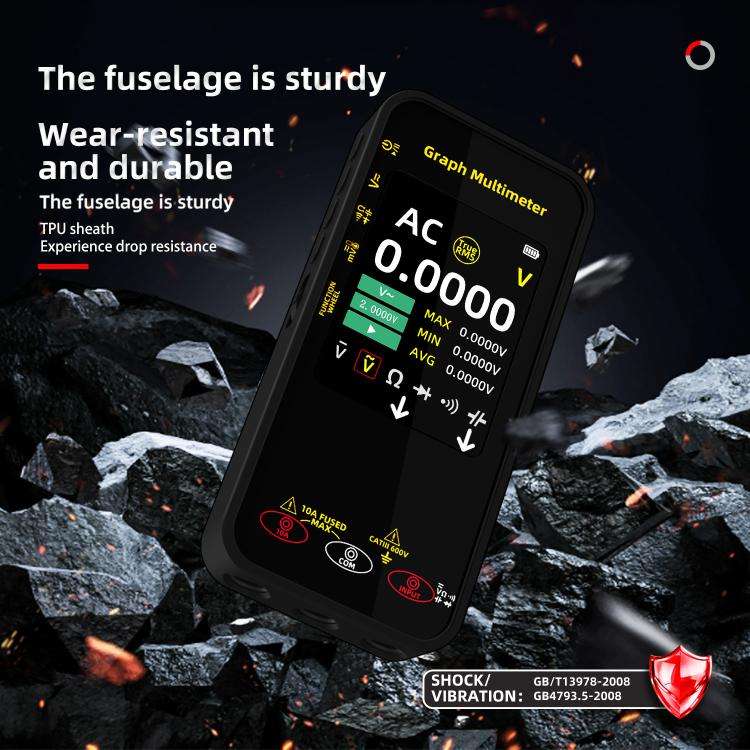

10. Strong body, wear-resistant and durable

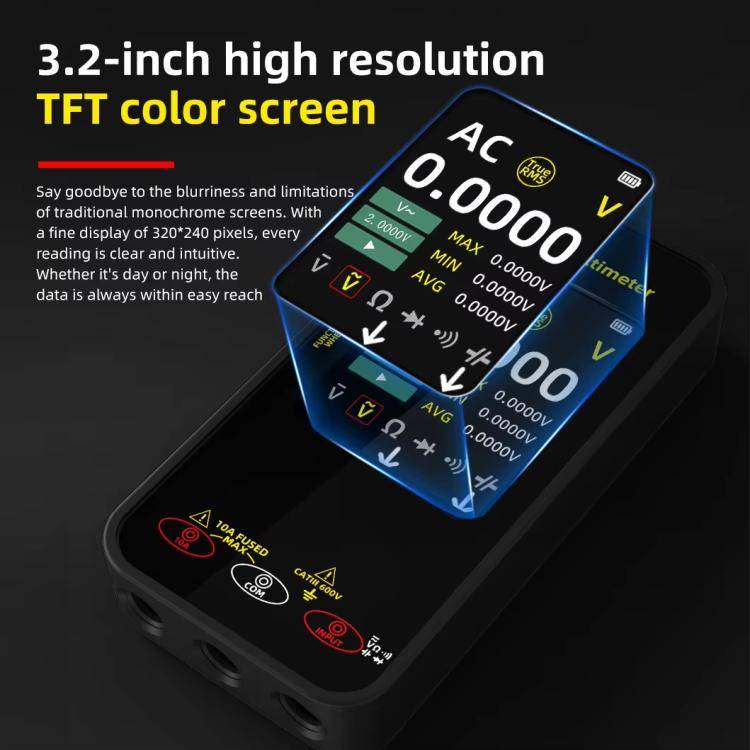

11. 3.2 inch high-resolution TFT color screen

Packaging list:
- Multimeter x 1
- Data cable x 1
- Manual x 1
- Thermocouple x 1
- Storage bag x 1
- Special tip test pen x 1
