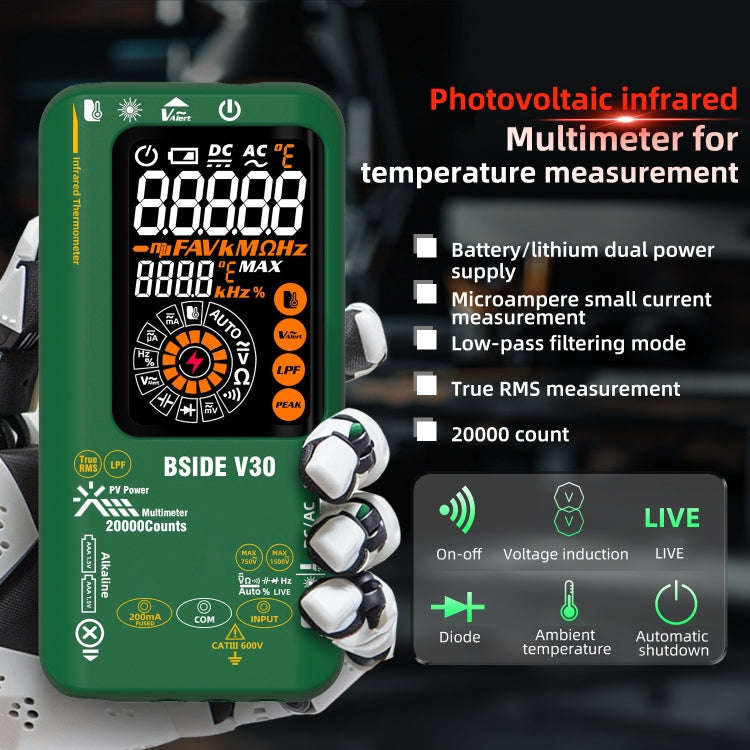

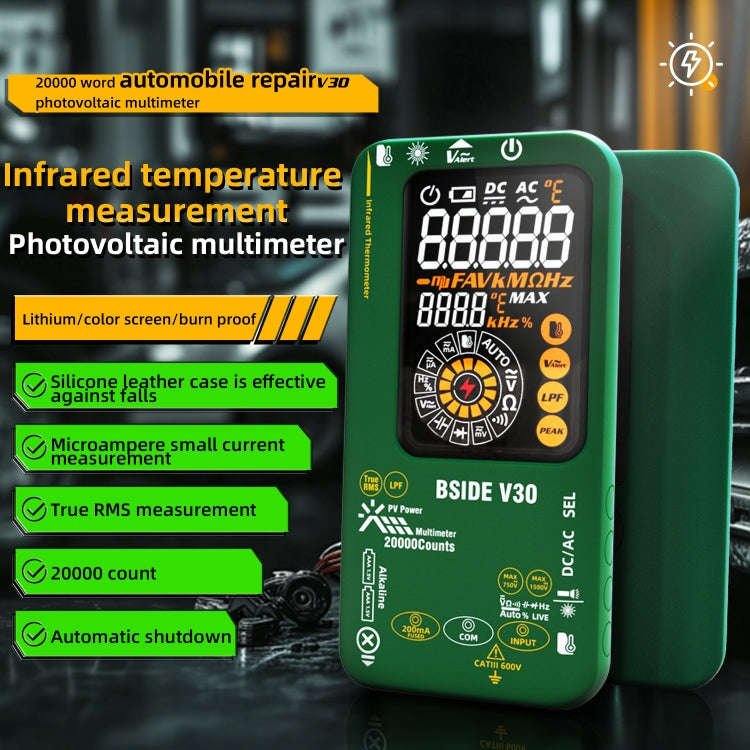

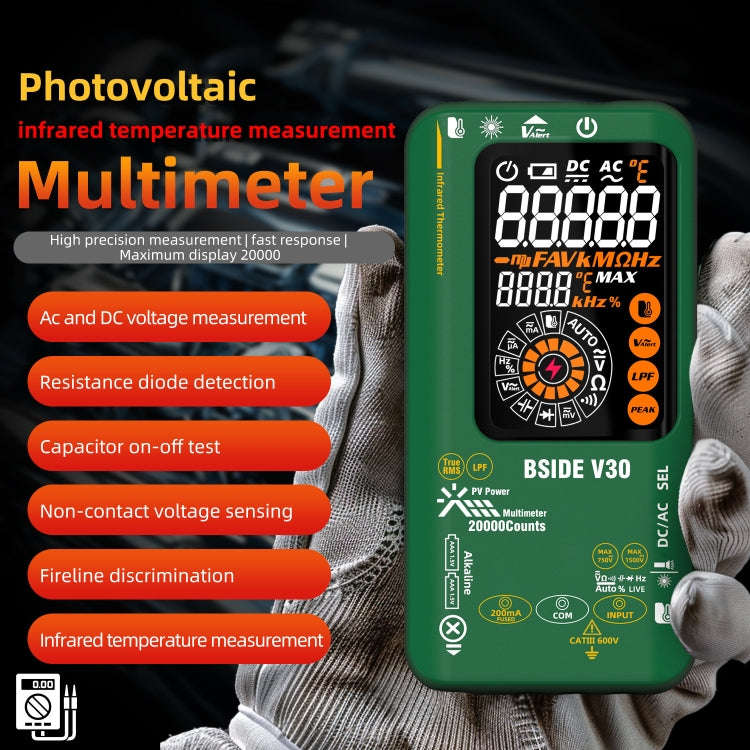

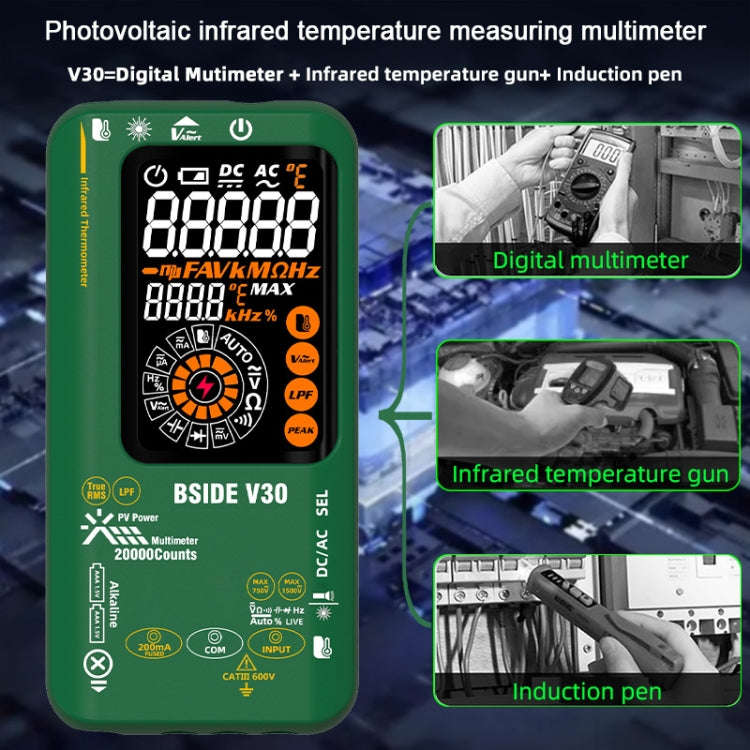

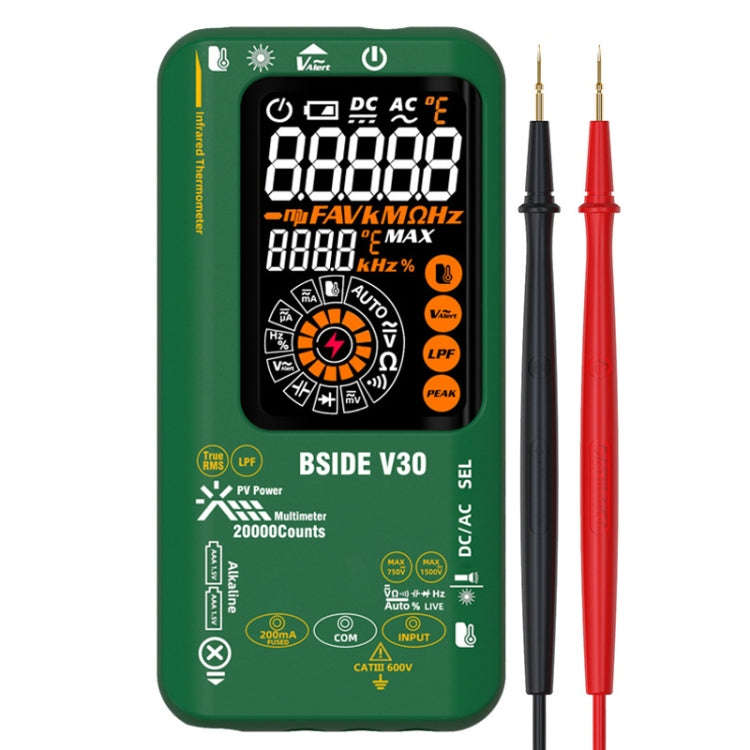

BSIDE V30 Intelligent Colorful Screen PV Multimeter Infrared Thermometer

1. Measurement range:
- DC voltage: 0.2-1499.9V (DC mode), 0.5-1499.9V (automatic mode)
- AC voltage: 0.2-749.9V (AC mode), 0.5-749.9V (automatic mode)

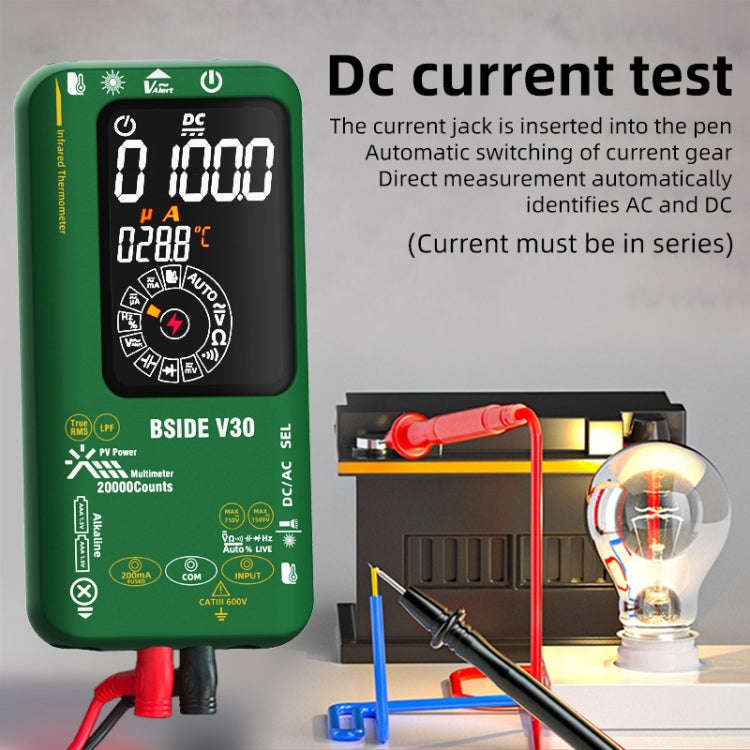

- DC/AC Current: 1.0uA-199.9mA
- Resistance: 0.0-19.99mOhm
- Capacitance: 00.000-9.999mF, 10.00mF-19.99mF
- Frequency: 1.000Hz-9.999Hz, 100.0z-199.9Kz
- Infrared thermometry: -20 - 0 degrees Celsius (-4 - 32 Fahrenheit), 0.1 - 380 degrees Celsius (32 - 752 Fahrenheit)
- Ambient temperature: 0 - 50 degrees Celsius
2. Resolution:
- DC/AC voltage: 0.0001V
- DC/AC Current: 0.01uA
- Resistance: 0.1 ohm
- Capacitance: 0.001nF, 0.01mF
- Frequency: 0.001Hz, 0.1KHz
- Infrared thermometry: 0.1 degrees Celsius/Fahrenheit
- Ambient temperature: 1 degree Celsius
3. Buzzer on and off: when the measured resistance value is less than 50 ohms within the buzzer sounds
4. Diode: less than 2V diode automatic identification
5. LIVE test: firewire display ----- icon, and alarm sound, zero line test no reaction

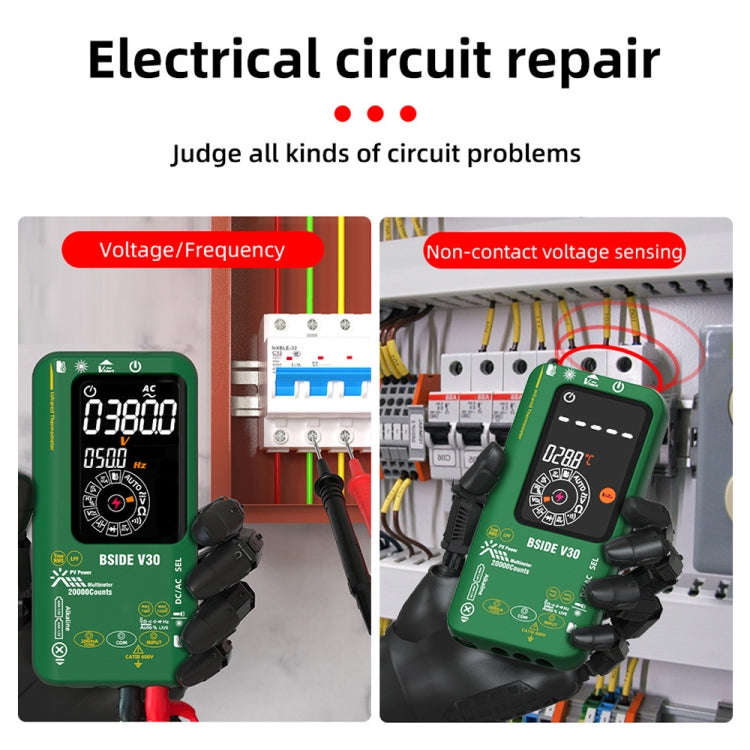

6. Functions: non-contact voltage sensing, low-pass filter mode, automatic shutdown (15min), torch
7. Battery: built-in 1200mAh 3.7V lithium battery, while supporting additional installation of 2 AAA alkaline batteries (not included)
8. Size: about 16 x 7.8 x 2.1cm
9. Weight: about 277g

Features:

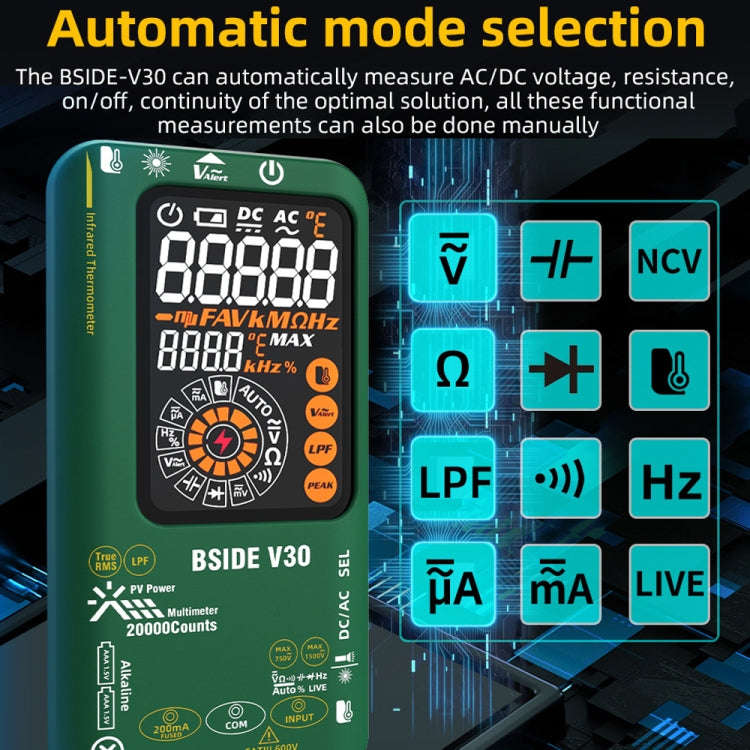

1. Automatic mode selection, can automatically measure AC/DC voltage, resistance, on-off
2. Two power supply modes, priority use of lithium battery power supply, such as lithium battery power depletion, will automatically start the dry battery (not included) emergency power supply
3. HD colour screen display, in sunlight and darkness can be seen clearly, digital display up to 20000 counts, the larger the count, the higher the accuracy

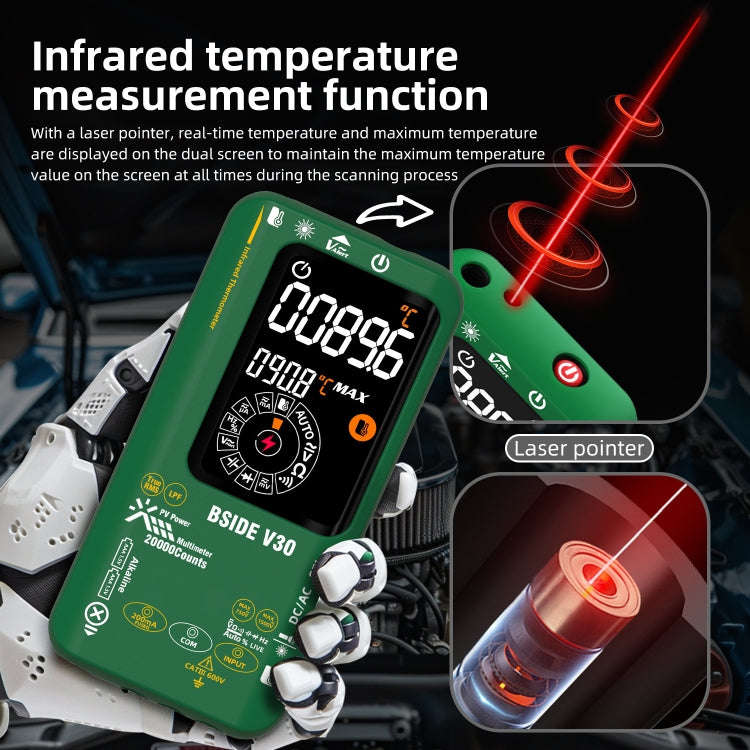

4. With laser pointer, real-time temperature and the maximum temperature value of the dual-screen display, in the scanning process at all times on the screen to maintain the maximum temperature value

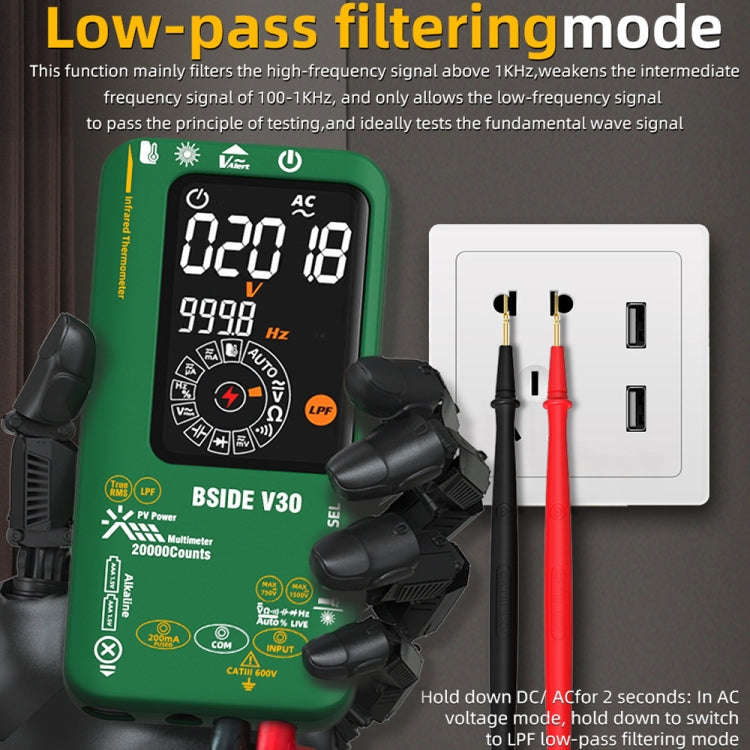

5. Low-pass filtering mode, mainly through the filtering of high-frequency signals above 1KHz, weakening 100-1KHz intermediate frequency signals, allowing only low-frequency signals to pass the principle of testing, the ideal test is the base wave of the signal

Packing list:
- Multimeter x 1
- Meter pen x 2
- Charging cable x 1
- Storage bag x 1
- Mini screwdriver x 1
