This product can test a variety of battery capacity status for efficient discharge, the battery is good or bad judgment.
Structural features:

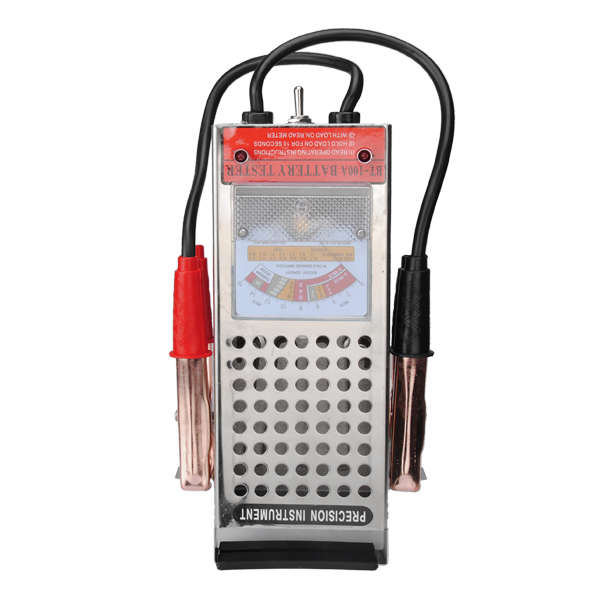

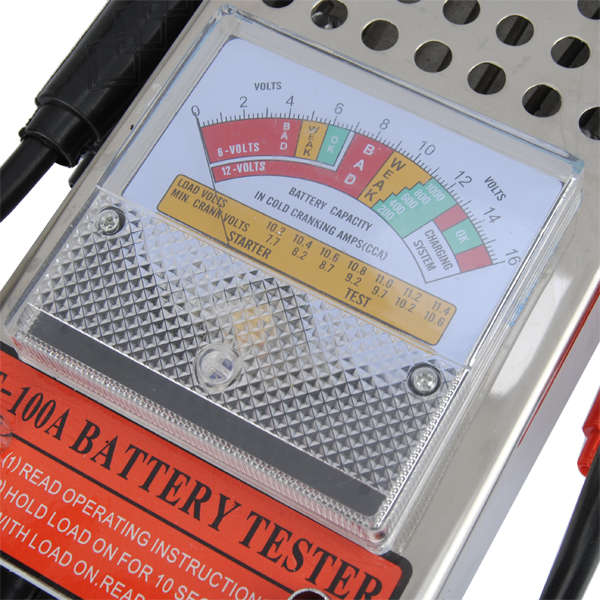

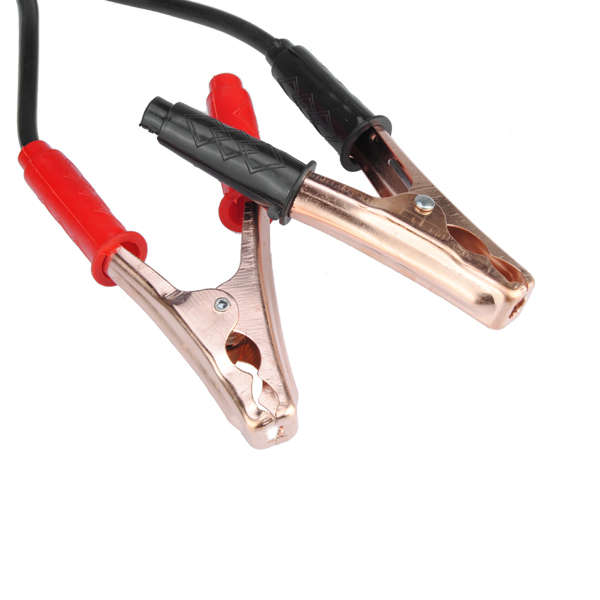

This product by the DC voltmeter, load resistance, line, switch to the steel shell, copper chuck composition, instrument dial has a battery capacity indicator.
Technical Parameters:
Test range: not rated battery voltage 6V 12V, battery rated capacity of 12-200 security, the discharge current 100-120.
Indicator Form: surface color and text to indicate
Measurement Method: Manual momentary contact, each test takes less than 5 seconds.
Header accuracy: 2.0 meter, limit the amount of 0-16V
Test Preparation:
Testing should be carried out in well ventilated place operation is not allowed, there may not be around the fire.
Clean the battery test side, check the battery casing is damaged has broken.
Package Included:
1 X BT-100A Battery Tester
