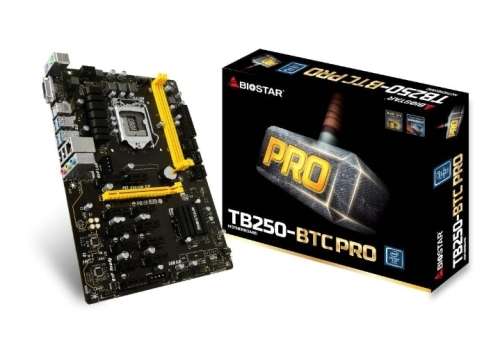

Biostar TB250-BTC Pro Bitcoin Socket 1151 Motherboard
Specifications
Chipset
- Intel B250
CPU SUPPORT
- Intel Core i7 LGA 1151 Processor
- Intel Core i5 LGA 1151 Processor
- Intel Core i3 LGA 1151 Processor
- Intel Pentium LGA 1151 Processor
- Intel Celeron LGA 1151 Processor
- Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY
- Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
- 2 x DDR4 DIMM Memory Slot
- Max. Supports up to 32GB Memory
- DDR4 2400 for 7th Generation Intel Core Processor Family
EXPANSION SLOT
- 1 x PCI-E x16 3.0 Slot
- 11 x PCI-E x1 3.0 Slot(Note: PEX1_6/7/8/9/10/11 slot are not compatible w/ ATX standard, users need extra coonecting kit to install VGA card for crypto mining.)
STORAGE
- 6 x SATA3 Connector
USB
- 4 x USB 3.0 Port
- 1 x USB 3.0 Header
- 2 x USB 2.0 Port
- 2 x USB 2.0 Port(only 5V power, up to 1.5A)
- 2 x USB 2.0 Header
LAN
- Realtek RTL8111H - 10/100/1000 Controller
- Support Super LAN Surge Protection
INTEGRATED VIDEO
- By CPU model
- Supports DX12
- Supports HDCP
CODEC
- Realtek ALC887 8-Channel HD Audio
- Support HD Audio
REAR I/O
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 4 x USB 3.0 Port
- 2 x USB 2.0 Port
- 2 x USB 2.0 Port(only 5V power, up to 1.5A)
- 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
- 1 x RJ-45 Port
- 3 x Audio Connector
INTERNAL I/O
- 1 x USB 3.0 Header
- 2 x USB 2.0 Header
- 6 x SATA3 6Gb/s Connector
- 1 x SATA Power Connector(for rear USB power enhancement)
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x CPU Fan Header
- 2 x System Fan Header
- 1 x Serial Header

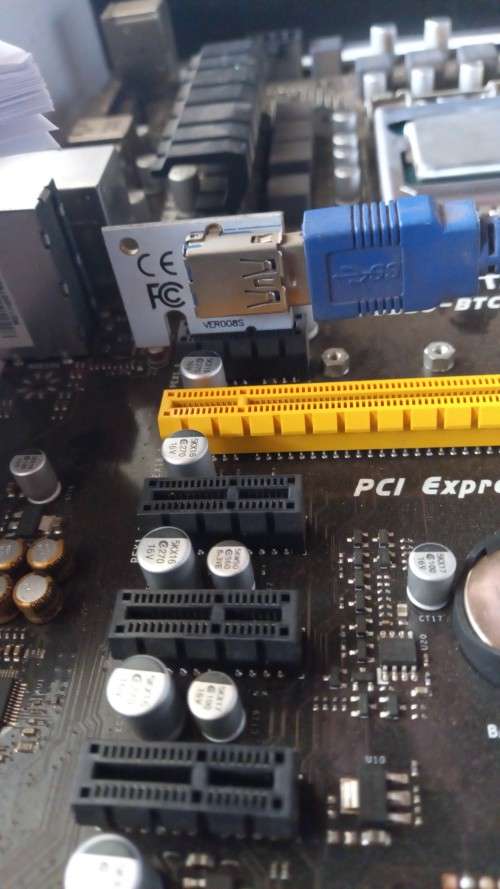

- 2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
H/W MONITORING
- CPU / System Temperature Monitoring
- CPU / System Fan Monitoring
- Smart / Manual CPU Fan Control
- System Voltage Monitoring
DIMENSION
- ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
OS SUPPORT
- Support Windows 10(x64) for Intel 7th Generation Processor
- Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
BUNDLE SOFTWARE
- BullGuard
- Smart Speed LAN(Windows 7/ 8.1 only)
- Intel Rapid Storage Technology
ACCESSORIES
- 2 x SATA Cable
- 1 x I/O Shield
- 1 x DVD Driver
- 1 x User Manual
FEATURES
- Supports 100% Solid capacitor
- Supports Charger Booster
- Supports BIOS Online Update
What's in the box

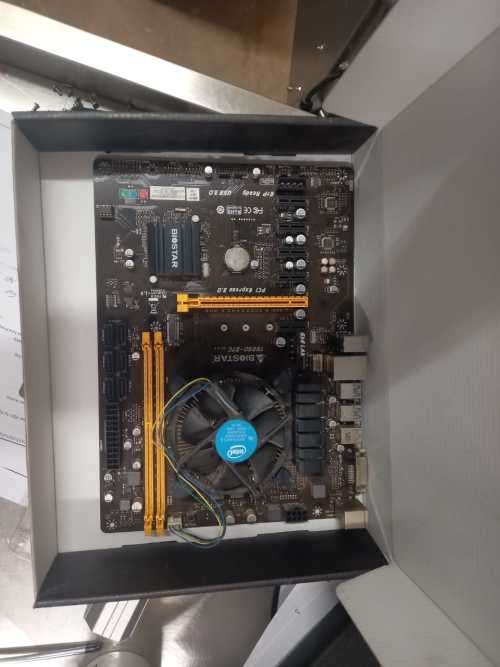

1 X Biostar TB250-BTC Pro Bitcoin Socket
1151 Motherboard
1x Celeron 2.8ghz CPU LGA 1151
1x CPU Fan Coil Pack

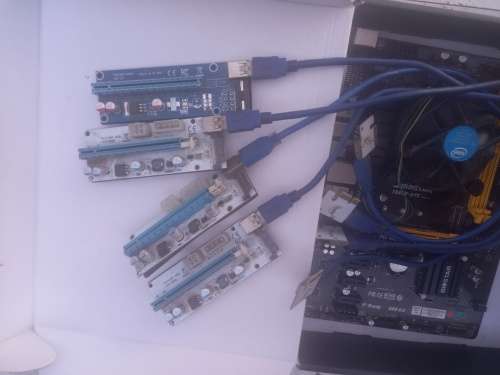

4x PCIE 1 to PCIE 4 Adaptors
1x Instruction Manual
1x Disc
Original Box
