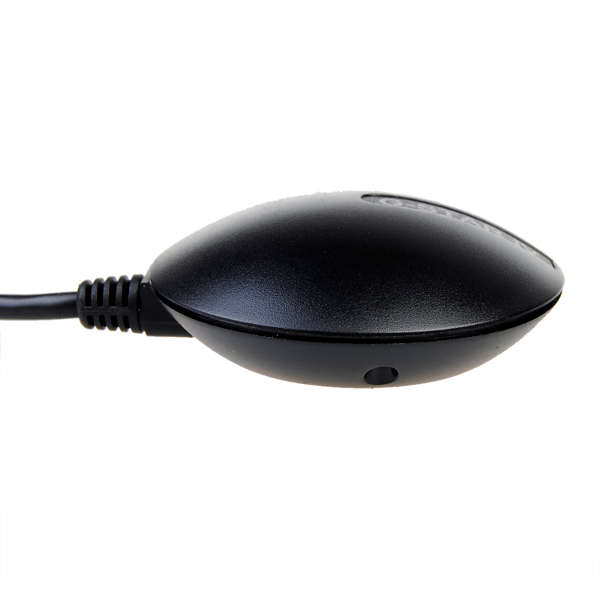

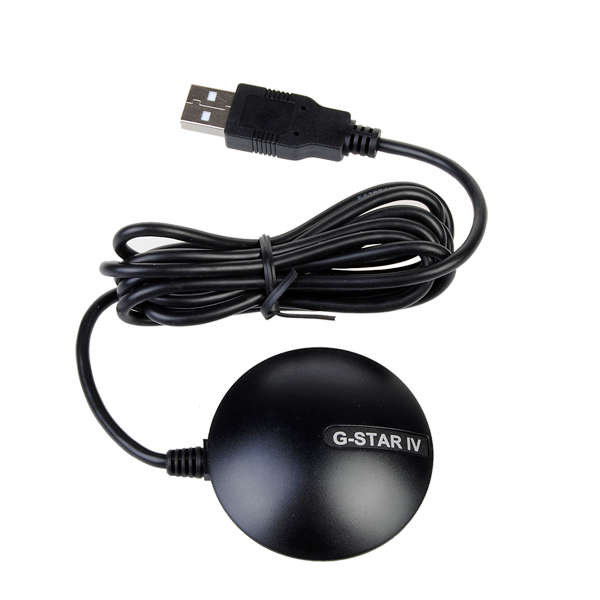

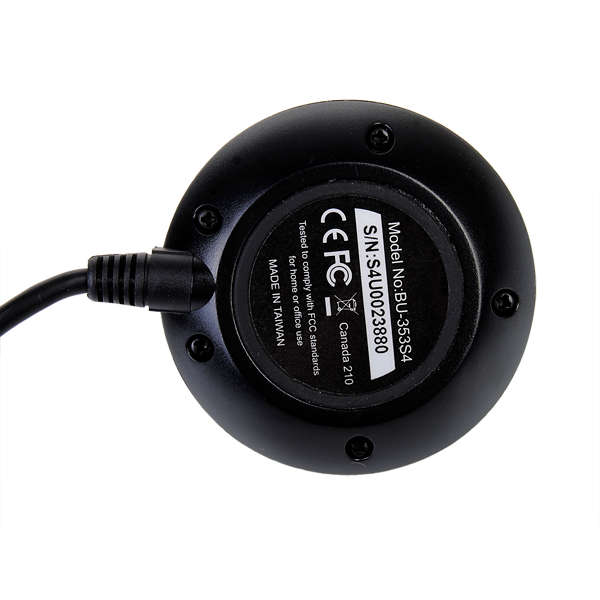

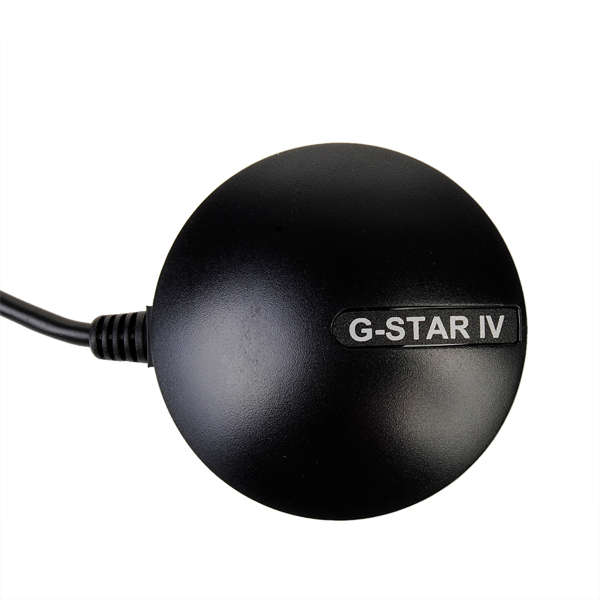

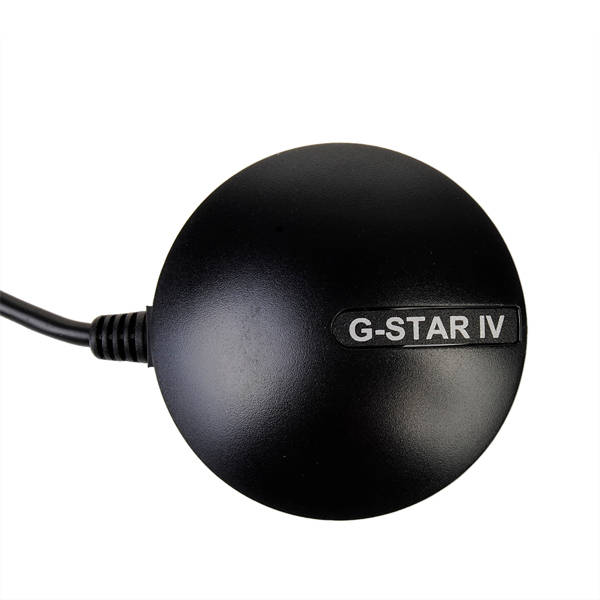

BU-353S4 SiRF Star IV Waterproof Receiver GPS Receiver USB PortDescription: The BU-353 S4 GPS Receiver can be utilized in a variety of applications that require a magnetic mounting with waterproof configuration.
With non-slip on the bottom and the compact design, the BU-353 S4 is completely self-contained and waterproof.
It''s incorporating the latest SiRF Star IV GPS chipset and an active patch antenna so you receive a high degree of GPS accuracy.
Typical application can include marine environments, aviation, commercial use such as fire truck,
Police cars and utility vehicles and buses.
Features:Using high performance SiRF Star IV GPS chipset
Highly sensitive (Tracking Sensitivity: -163 DBMS in) *
Extremely fast TTFF (Time To First Fix) at low signal level
Support NMEA0183 data protocol
Built-in super capacitors, system data for rapid satellite acquisition
Built-in patch antenna and a magnetic cushion
Super magnetic flux, for installation in vehicles
Waterproof and non-slip bottom
LED indicator of GPS
Specifications:Chipset: SiRF Star IV
Frequency: L1 1575.42MHz
C / A code: 1.023 MHz chip rate
Number of Channels: 48 channels tracking
Sensitivity: -163 DBMS
Accuracy: Location: 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enable
Rate: 0.1 m / s
Time: 1 microsecond synchronized satellite
Coordinate information: Default: WGS-84
Acquisition Time:Readmission: Average 0.1 seconds
Hot Start: Average 1 seconds
Warm start: 38 sec average
Cold and warm start: 42 sec average
Related restrictions: Height: 18,000 m (60,000 ft) maximum
Rate: 515 m / sec (10,000 knots) maximum
Gravity: Less than 4G
Power: Main power input: 4.5V ~ 6.5V DC input
Power consumption: 80mA
Agreement:Operational level: TTL level
Output Voltage: 0V ~ 2.85V
Transfer rate: 4,800 bps
Output format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL
Physical Characteristics: Size: 53mm diameter, 19.2mm height
Cable length: 1.5 m
Operating temperature: -40 ° C to +85 ° C

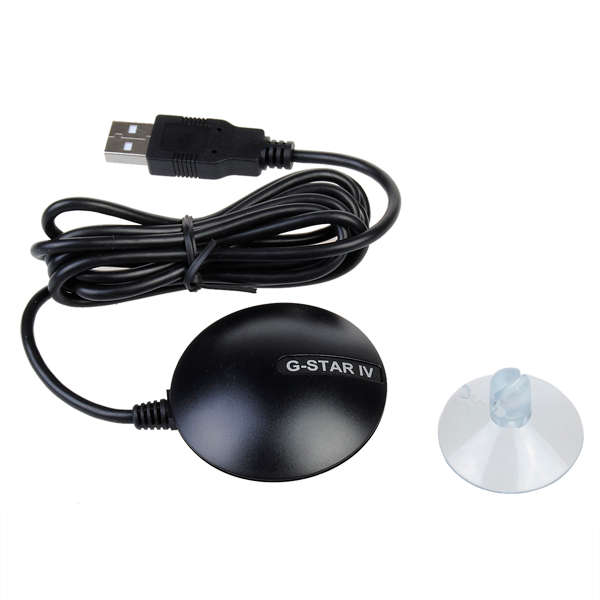

Package Included:1 X USB GPS Receiver
1 X Suction Cup
1 X CD Driver with user manual
