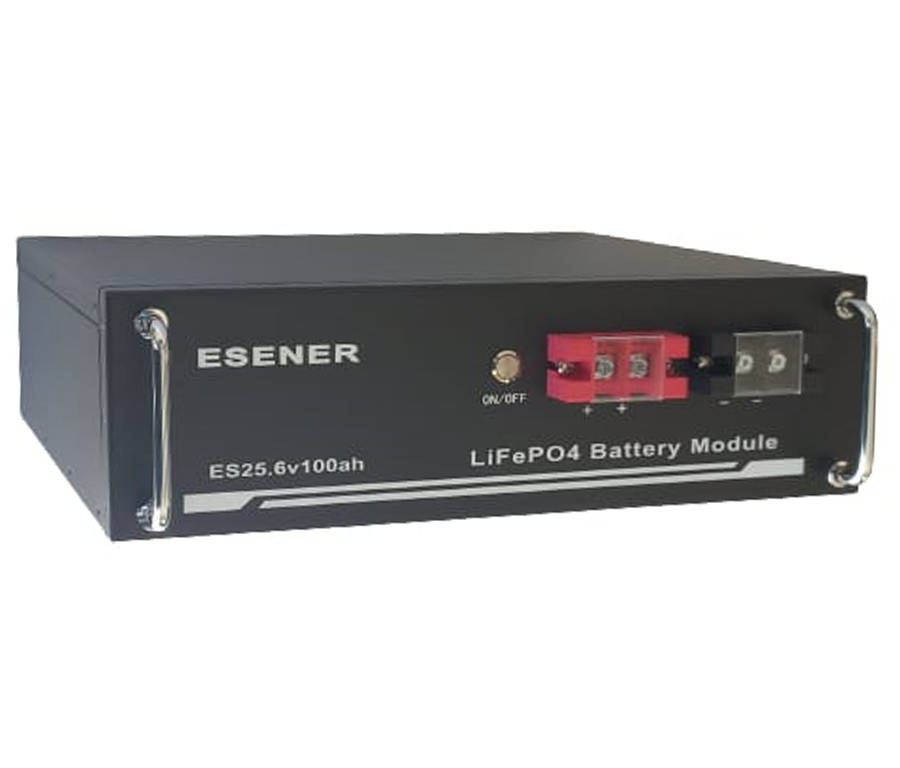

BU024B ESENER - Battery Lithium Iron LifePO4 24 Volt 2.56KWH 100Ah. Rack Mount

Model: ES-25.6V100Ah.

• Rated Capacity (5HR): 100 Ah.
• Voltage: 25.6V.
• Discharge Cutoff Voltage: 20.0V.
• Equalized Charge Voltage: 29.2V.
• Max. Continuous Charging Current: 100A.
• Max. Continuous Discharging Current: 100A.
• Parallel/Series: Parallel and series connection up to "2s2p".
• Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
• Cells: Li-ion Prismatic cells.
• Cycle Life @ 1C: +/- 2200 Cycles @ 100% DOD, above 4000 cycles @ 80% DOD.
• Certification: UN38.3,IEC,MSDS.
• Operating Temperature: Charging: 0 to +50°C, Discharging: -10 to +50°C,Storage: -10 to +50°C.
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
