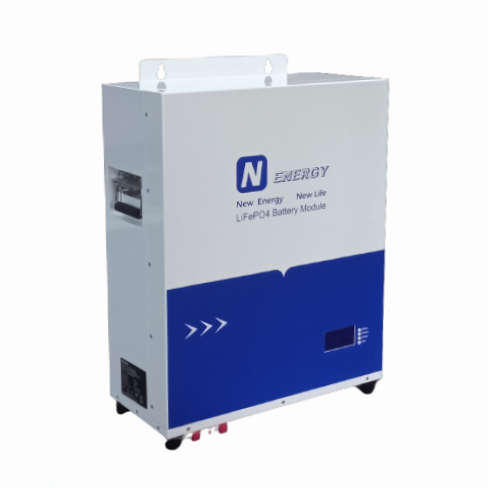

BU030A Nenergy - Battery Lithium Iron LifePO4 5.8Kw 48V 120Ah Wall Mount

Battery Management System (BMS) Specification:

• Overcharge detection function
• Over-discharge detection function
• Over-current detection function
• Temperature protection
• Short detection function
• Balance function

Electrical Characteristics:

• Nominal Voltage: 48.0V
• Nominal Capacity: 120Ah
• Energy: 5760Wh
• Internal Resistance: 50m
• Cycle Life: 6000 cycles @1.0C 100% Depth of Discharge (DOD)
• Months Self Discharge: 3%
• Efficiency of Charge: 100% @0.2C
• Efficiency of Discharge: 96~99% @0.5C

Mechanical Specifications:

• Cell & Method: 32700 6Ah
• Shell Material: Cylindrical cells Iron (SPCC)
• Dimensions: 650 x 438 x 178 mm
• Weight: Approx. 55 Kg
• Gravimetric Specific Energy: 85 WH/KG

The Nenergy 48V 120A Lithium LiFePO4 Battery combines cutting-edge technology with robust safety features, offering longer cycle life, lighter weight, and higher power output. With a wider temperature range and enhanced flexibility, this battery is engineered to meet the demands of diverse applications. The Battery Management System ensures optimal performance and safeguards against potential risks, making it a reliable and efficient power solution.
