Product details
Condition
New
Location
International
Bob Shop ID
641118817
Specification:

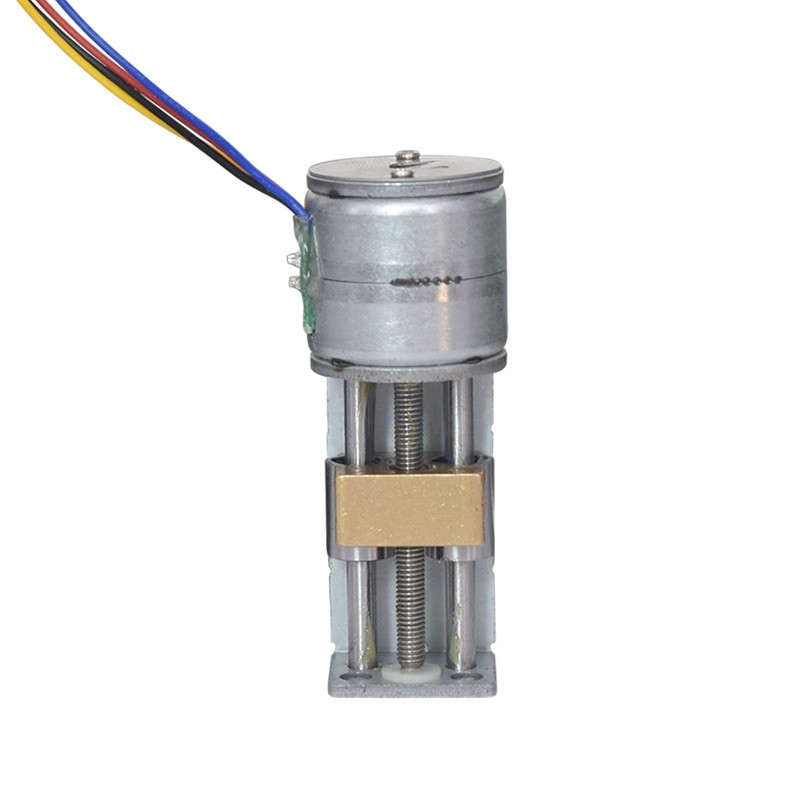

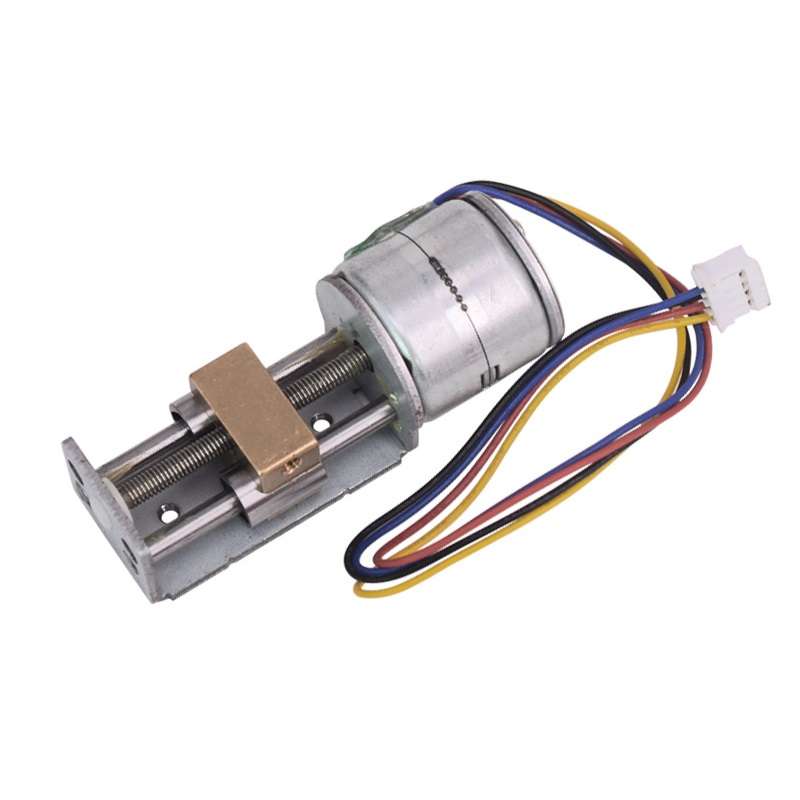

Motor type: 2-phase 4-wire system Drive voltage: 5-9V / 200-600mA (the higher the voltage, the greater the force, the greater the heat) Screw length: 32mm Slider stroke: 22mm Motor diameter: 20mm Screw diameter: 3mm Screw pitch: 0.5mm (-step movement 0.025mm, if smaller, you can use subdivision drive) Step angle: 18ᆪ Phase resistance: 21 ohms Total size: 54 large 2 1*2 1mm Blue A+Black B+Red B-Yellow A- Note: It is a stepper motor, it will not rotate when it is directly connected to the electricity, and a stepper motor drive board and control board are required.
