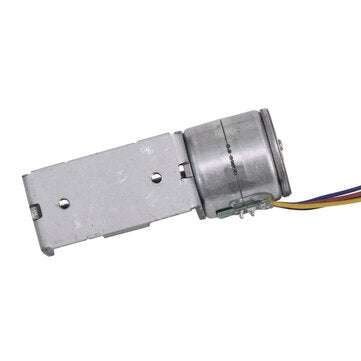

BUJIATE 20 Stepper Motor Slide Table Miniature Mini Screw Rod Screw Moving Push 20mm Linear Motor

20 available / new

R1,007.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3548

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643374782

Specification:

Motor type: 2-phase 4-wire system Drive voltage: 5-9V / 200-600mA (the higher the voltage, the greater the force, the greater the heat) Screw length: 32mm Slider stroke: 22mm Motor diameter: 20mm Screw diameter: 3mm Screw pitch: 0.5mm (-step movement 0.025mm, if smaller, you can use subdivision drive) Step angle: 18ﾣ Phase resistance: 21 ohms Total size: 54 large 2 1*2 1mm Blue A+Black B+Red B-Yellow A-
Note: It is a stepper motor, it will not rotate when it is directly connected to the electricity, and a stepper motor drive board and control board are required.

Package included:

1 xStepper Motor Slide Table
