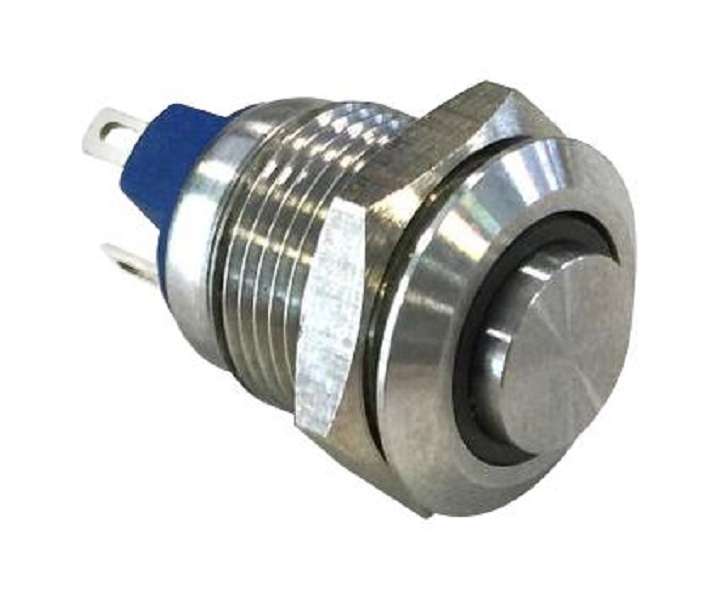

Bulgin Limited (MAV0120/3D2RD012) Vandal Resistant Switch, 12 mm, SPST-NO

Vandal Resistant Switch, 12 mm, SPST-NO, Momentary, Round, NaturalProduct InformationPushbutton Switch Type: Anti-VandalContact Configuration: SPST-NOProduct Range: MAV0120Panel Cutout Diameter: 12mmSwitch Operation: MomentaryPushbutton Actuator Style: RoundContact Current Max: 2AContact Voltage AC Max: -Actuator / Cap Colour: NaturalContact Current AC Max: -Operating Force: -Contact Voltage VAC: -Contact Voltage DC Max: 36VContact Current DC Max: 2AContact Voltage VDC: 36VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: RedPanel Cutout (H x W): -Product OverviewThe MAV0120/3D2RD012 from Bulgin is a miniature stainless steel illuminatedvandal resistant IP67 pushbutton switch. This 12mm prominent actuator,momentary, red ring illuminated vandal resistant push button switch is designedwith a high resistance to wear and tear, corrosion and harsh use in potentiallyhostile environments such as access control applications.Lamp voltage is 12VRating is 2A, 36VDCContact resistance is 50Mohm and insulation resistance is 1000MohmDielectric strength is 1500V at AC 50Hz, 5secsSingle pole push to make switch, operating temperature range from -25°C to +55°CPolyamide mouldingCopper with gold plated terminationSilver alloy contactsThread size is M12 x 0.75IK08 shock resistanceApplicationsIndustrial
