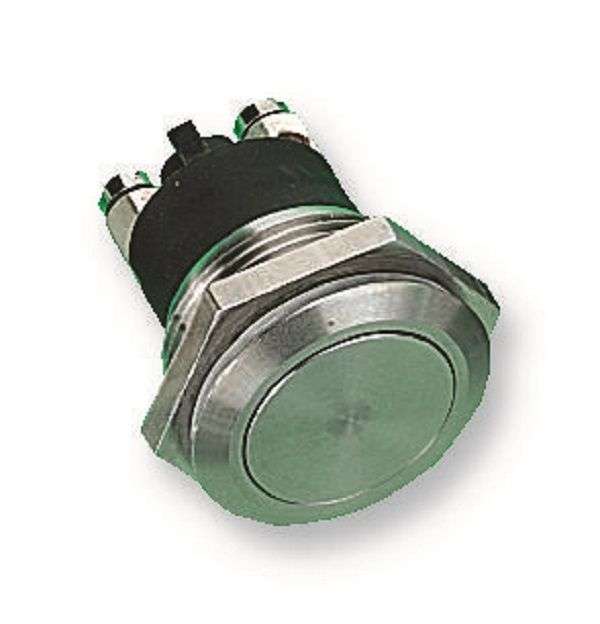

Bulgin Limited (MP0037) Vandal Resistant Switch, 19.2 mm, SPST-NO

Vandal Resistant Switch, 19.2 mm, SPST-NO, Off-(On), Flush, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: -Panel Cutout Diameter: 19.2mmContact Configuration: SPST-NOSwitch Operation: Off-(On)Pushbutton Actuator Style: FlushContact Current Max: 1AContact Voltage AC Max: 50VActuator / Cap Colour: NaturalContact Current AC Max: 1AContact Voltage VAC: 50VOperating Force: 7.5NContact Current DC Max: 1AContact Voltage DC Max: 50VContact Voltage VDC: 50VIP Rating: IP68Switch Mounting: Panel MountSwitch Terminals: ScrewIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe MP0037 is a single-pole single-throw (SPST) momentary front panel-mount lowprofile Vandal Resistant Switch with NO contact, OFF-(ON) function and naturalactuator cap. The vandal resistant switch is complemented by a range of 16mmstainless steel switches of robust construction designed for use in applicationswhere space is at a premium. It has SP push to make slow momentary action, screwterminals, stainless steel body and button.Glass filled nylon mouldingSilver-plated brass tags/terminationsSilver-plated brass, silver contactsSealed to IP68-20 to 70°C Operating temperature rangeApplicationsIndustrial
