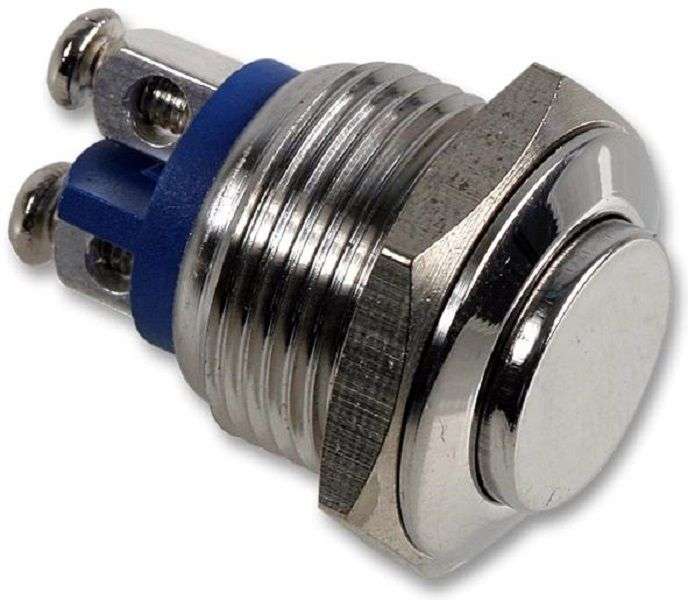

Bulgin Limited (MP0042/3) Vandal Resistant Switch, 16.2 mm, SPST-NO

Vandal Resistant Switch, 16.2 mm, SPST-NO, Momentary, Round Raised, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: -Panel Cutout Diameter: 16.2mmContact Configuration: SPST-NOSwitch Operation: MomentaryPushbutton Actuator Style: Round RaisedContact Current Max: 2AContact Voltage AC Max: -Actuator / Cap Colour: NaturalContact Current AC Max: -Contact Voltage VAC: -Operating Force: -Contact Current DC Max: 2AContact Voltage DC Max: 48VContact Voltage VDC: 48VIP Rating: -Switch Mounting: Panel MountSwitch Terminals: ScrewIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe MP0042/3 is a momentary Vandal Resistant Switch with screw termination, SSpush to make switching, nylon moulding, silver-plated brass tags, polishedstainless steel body and button, silver contacts. Designed with a highresistance to wear and tear, corrosion and harsh use in potentially hostileenvironments such as access control applications.50mR at 1A, 12V Contact resistance10³MR at 50VDC Insulation resistance1000000 Operations minimum mechanical life100000 Operations minimum electrical life18mm Bezel diameter16mm Panel holeApplicationsIndustrial
