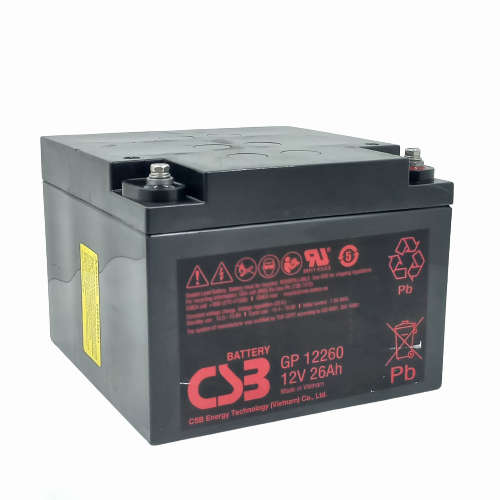

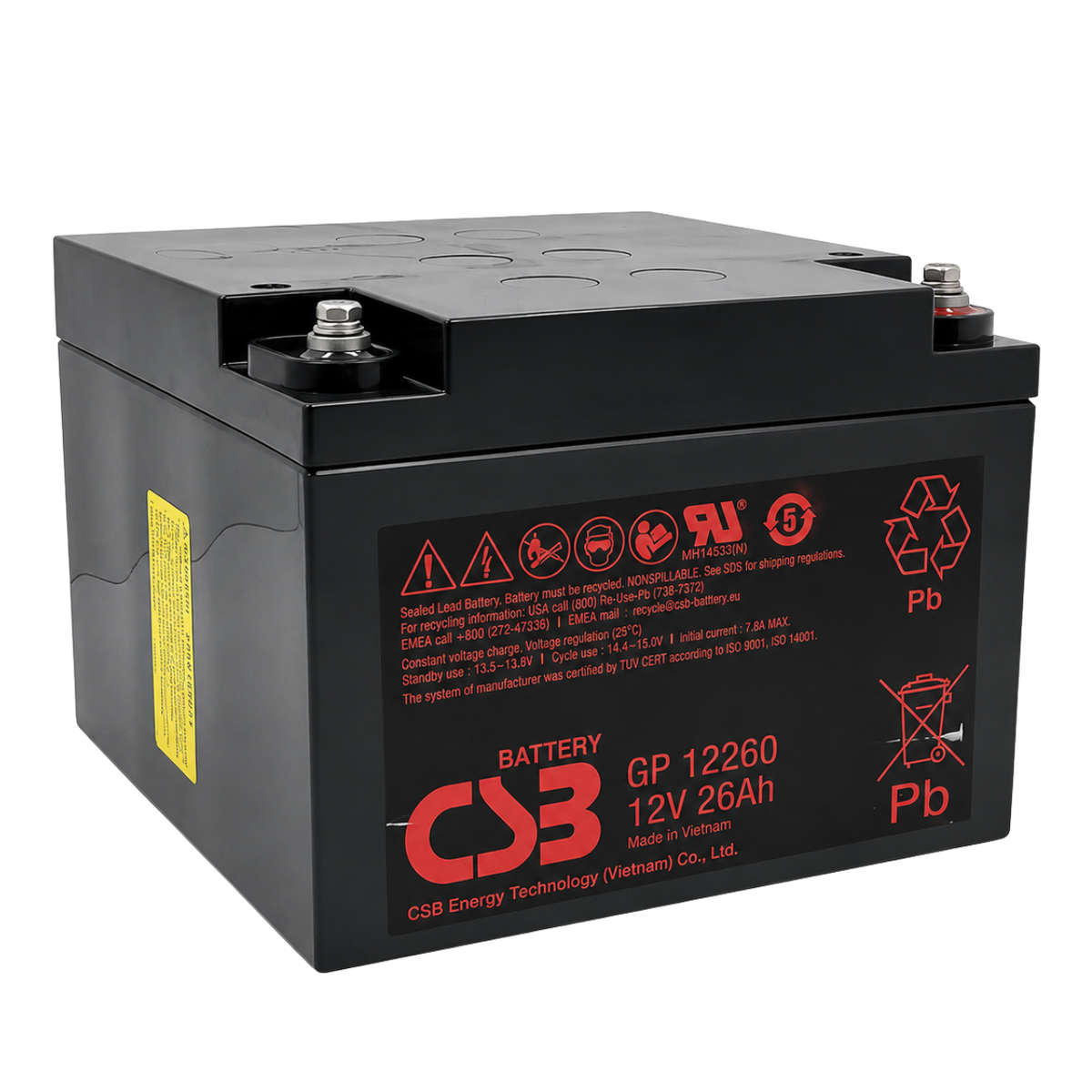

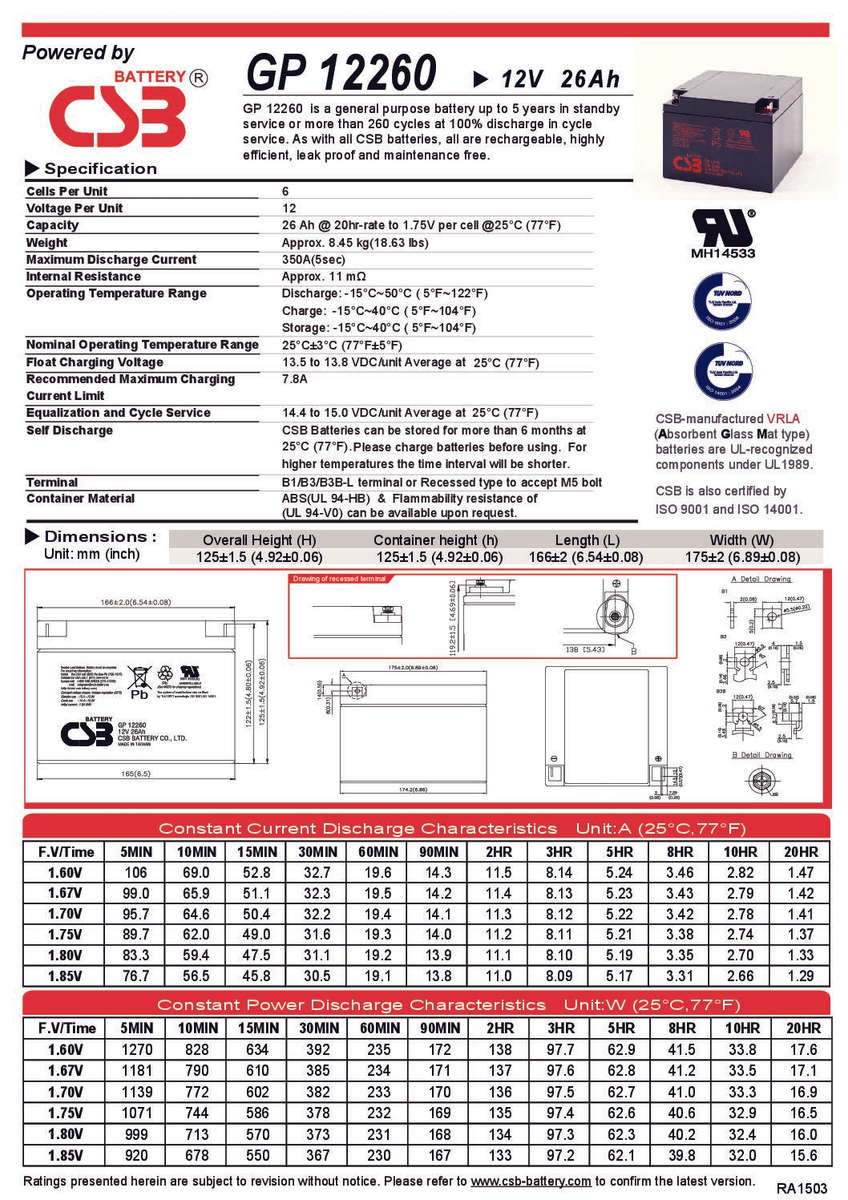

BW063 GP VB - GP Battery (Second Stock) Sealed Lead Acid 12V 26A

• 6

Voltage Per Unit

• 12

Capacity

• 26 Ah @ 20hr-rate to 1.75V per cell @25C (77F)

Weight

• Approx. 8.45 kg (18.63 lbs)

Maximum Discharge Current

• 350A (5sec)

Internal Resistance

• Approx. 11m

Operating Temperature Range

• Discharge: -15C ~50C (5F ~122F)
• Charge: -15C ~40C (5F ~104F)
• Storage: -15C ~40C (5F ~104F)

Nominal Operating Temperature Range

• 25C ± 3C (77F ± 5F)

Float Charging Voltage

• 13.5 to 13.8 VDC /unit Average at 25C (77F )

Recommended Maximum Charging Current Limit

• 7.8A

Equalization and Cycle Service

• 14.4 to 15.0 VDC /unit Average at 25C (77F )

Self Discharge

• CSB Batteries can be stored for more than 6 months at 25C (77F)
• Please charge batteries before using
• For higher temperatures the time interval will be shorter

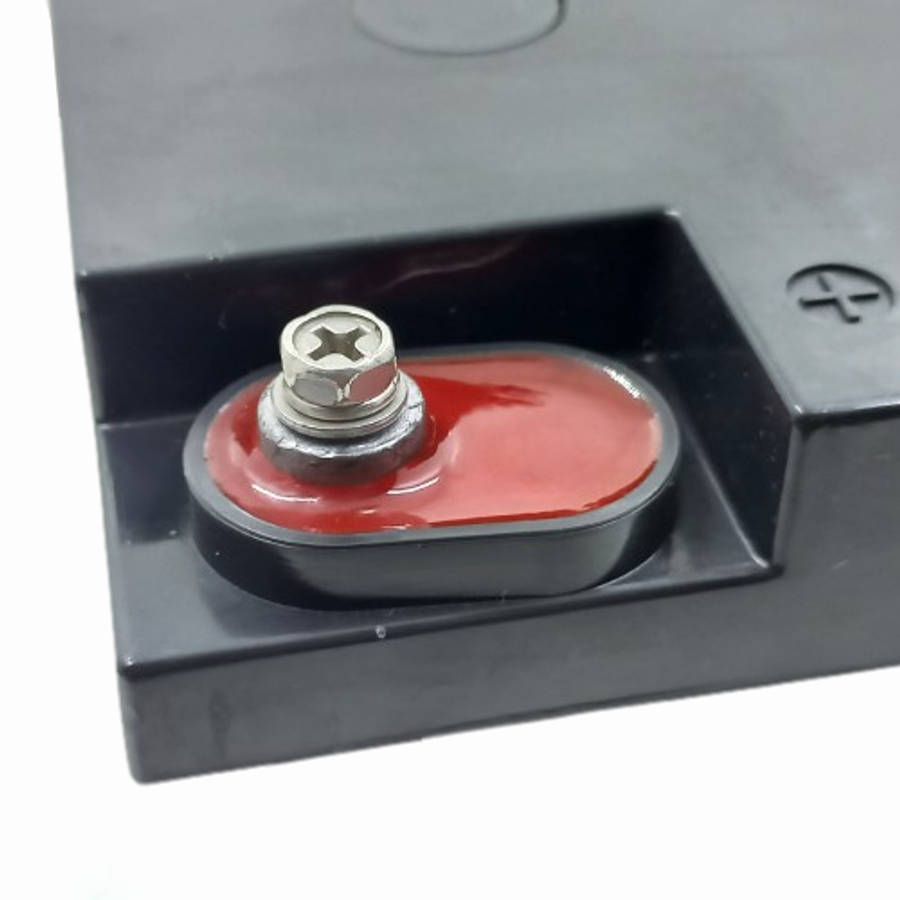

Terminal

• B1/B3/B3B-L terminal or Recessed type to accept M5 bolt

Container Material

• ABS(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request

DIMENSIONS (Unit: mm (inch))

Overall Height (H)

• 125±1.5 (4.92±0.06)

Container Height (h)

• 122±1.5 (4.8±0.06)

Length (L)

• 166±2 (6.54±0.08)

Width (W)

• 175±2 (6.89±0.08)
