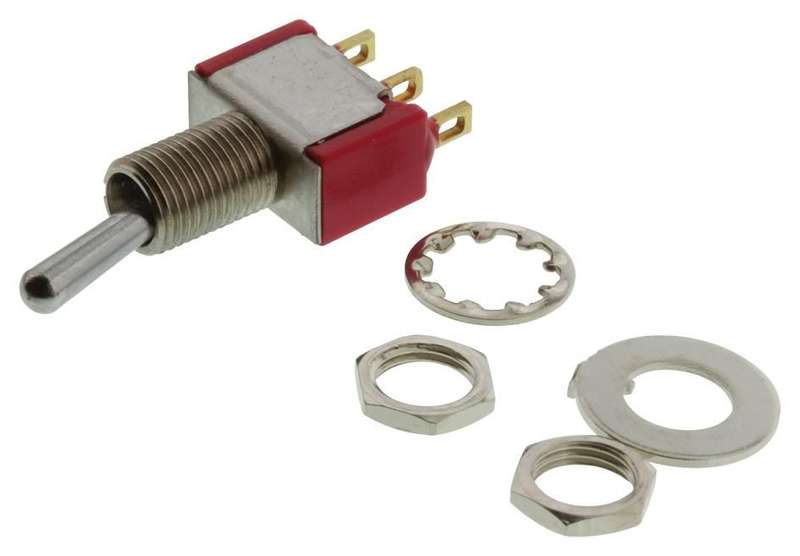

C&K Components (7101SYZBE) Toggle Switch, On-None-On, SPDT, Non Illuminate

Toggle Switch, On-None-On, SPDT, Non Illuminated, 7000, Panel MountProduct InformationSwitch Operation: On-None-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 7000Switch Mounting: Panel MountContact Current Max: -Contact Voltage AC Nom: 20VSwitch Terminals: Solder LugContact Voltage DC Nom: 20VProduct OverviewThe 7101SYZBE is a single-pole double-throw (SPDT) Miniature Toggle Switch withsolder lug termination, 0.42-inch chrome plated brass actuator, 0.35-inch highkeyway bushing and ON-NONE-ON function. The 7000 series switch has gold overnickel plated copper alloy contact and stainless steel housing. Epoxy terminalseal is compatible with bottom-wash cleaning.1000Vrms at sea level Minimum dielectric strength-30 to 65°C Operating temperature rangeSolderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 (1 hoursteam aging)ApplicationsCommunications & Networking, Sensing & Instrumentation, Medical
