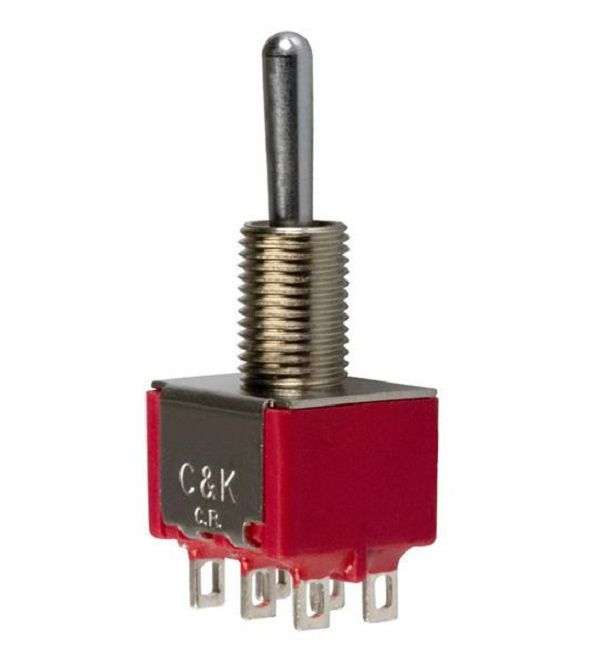

C&K Components (7201K2ZQE) Toggle Switch, On-None-On, DPDT, Non Illuminated

Toggle Switch, On-None-On, DPDT, Non Illuminated, 7000, Panel Mount, 5 AProduct InformationSwitch Operation: On-None-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 7000Switch Mounting: Panel MountContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: Solder LugContact Voltage DC Nom: 28VProduct OverviewThe 7201K2ZQE is a double-pole double-throw miniature Toggle Switch with solderlug terminations, silver contact, On-none-On function, 0.704-inch high lockinglever actuator, stainless steel housing, glass filled nylon 6/6,flame-retardant, heat stabilized or Diallyl phthalate (DAP) (UL94V-0) case,chrome-plated brass actuator and epoxy terminal seal compatible with bottom washcleaning.10mR at 2 to 4VDC Initial contact resistance10?R Minimum insulation resistance1000VRMS at sea level Minimum dielectric strength-30 to +85°C Operating temperature rangeApplicationsCommunications & Networking, Sensing & Instrumentation, Medical
