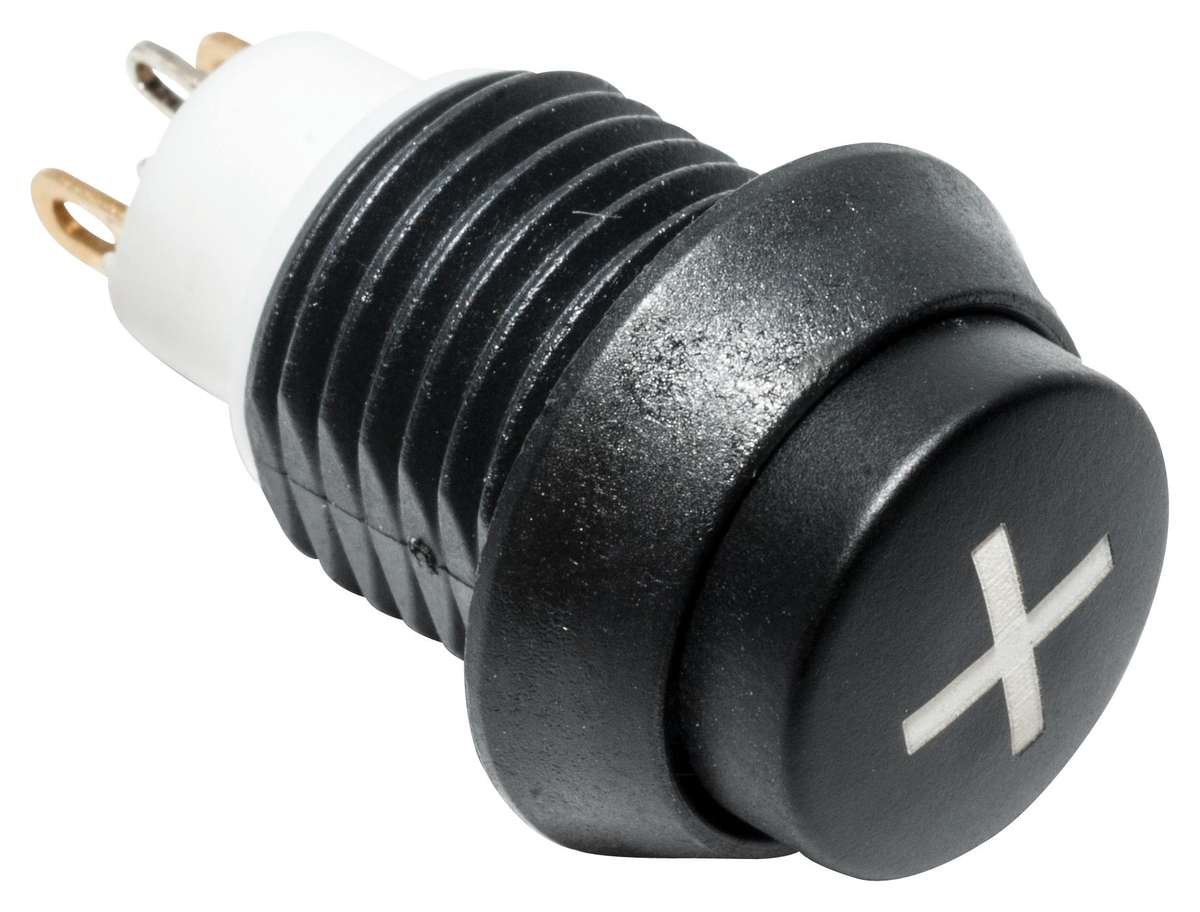

Industrial Pushbutton Switch, 13.8 mm, SPST-NO, Momentary, Round Raised, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: APBContact Configuration: SPST-NOPanel Cutout Diameter: 13.8mmSwitch Operation: MomentaryContact Current Max: 400mAContact Voltage AC Nom: 32VPushbutton Actuator Style: Round RaisedActuator / Cap Colour: BlackContact Voltage DC Nom: -Contact Current AC Max: 125mAContact Voltage VAC: 125VContact Current DC Max: 200mAContact Voltage VDC: 24VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: BluePanel Cutout (H x W): -Product OverviewThe APB4E07TZBE001 from C & K Components is an APB series backlit pushbuttonswitch. This switch is IP67 sealed. It has PBT housing, PBT base, paintedpolycarbonate cap, illuminated clear polycarbonate actuator, silicone rubberinternal seal, gold over silver plated copper alloy terminals, gold over silverplated copper alloy movable contact and epoxy terminal seal. The initial contactresistance is 50mohm maximum (without wire leads) and bounce time is less than5ms. It has contact rating of 200mA at 24VDC resistive (500,000 cycles), 100mAat 50VDC resistive (500,000 cycles), 400mA at 32VAC resistive (500,000 cycles)and 125mA at 125VAC resistive (1,000,000 cycles). Typical applications includeharsh environments, off-road, industrial, medical, transportation, joystickcontrol modules, gaming and military.Extended dome (600E) capSuper blue illumination, threaded plastic bushing styleSolder lug termination, contact material is goldCap symbol is plusSPST momentary switch function, NO contact arrangementOperating force is 4N1000000 life cycle, IP67 sealing, 1.55 ± 0.25mm operating point, 0.6min overtravel20KV minimum ESD protection, 2.1 ± 0.2mm total travelDielectric strength is 1000V AC for 1min, insulation resistance is 1Gohm at500VDCOperating temperature range from -40?C to +85?C, UL1569 black 22AWG wire leadsApplicationsAutomation & Process Control, Industrial, Medical, Aerospace, Defence, Military
