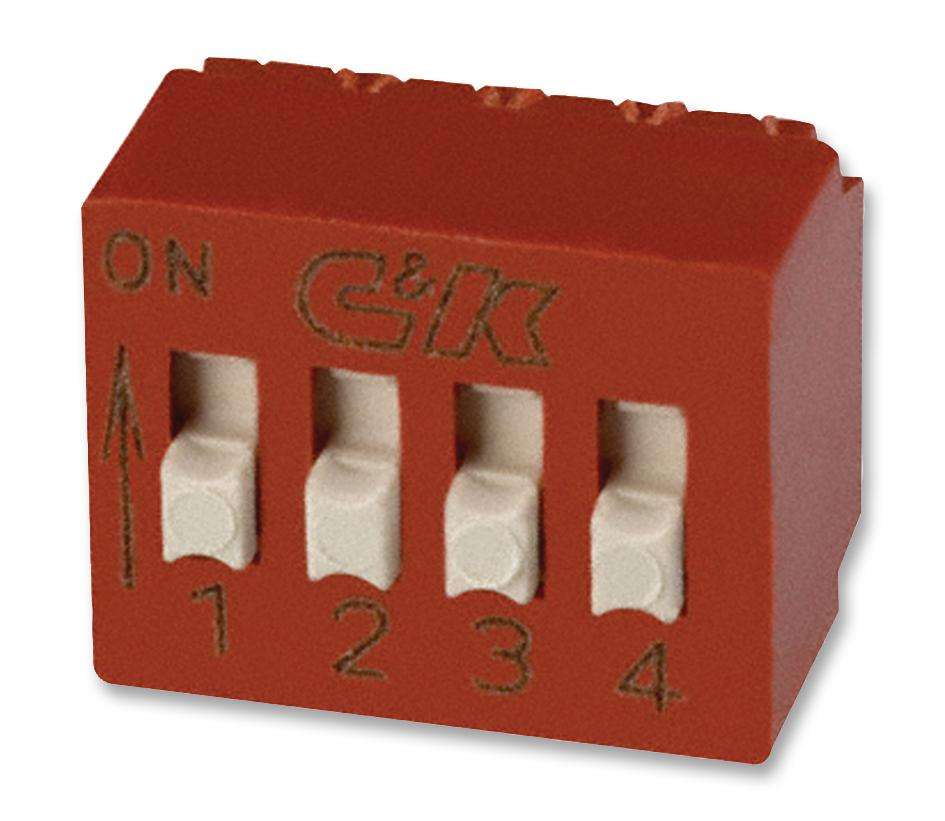

C&K Components (BD04AV) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 4 Circuits, Slide, Through Hole, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 4CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Through HoleSwitch Type: DIP UnsealedContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: BDProduct OverviewThe BD series Standard Profile DIP Switch with extended actuator for easyactuation. Open bottom construction allows for solder washing without the needfor tape seal. Suitable for use with address switch for industrial controls,logic switching for computers and peripherals, function controlling for numerousapplications.10000 Make-and-break cycles mechanical and electrical life at full load eachcircuitBelow 50mR Typical initial contact resistance at 2 to 4VDC 100mA10?R Minimum insulation resistance500VRMS Minimum dielectric strength at sea level between adjacent terminals5pF Maximum capacitance between adjacent terminalsGlass filled polyester (PBT), flame retardant (UL94V-0) case and coverGlass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0) actuatorGold over nickel over phosphor bronze contactsMatte-tin over nickel over phosphor bronze terminals-40 to 85°C Operating temperatureApplicationsIndustrial
