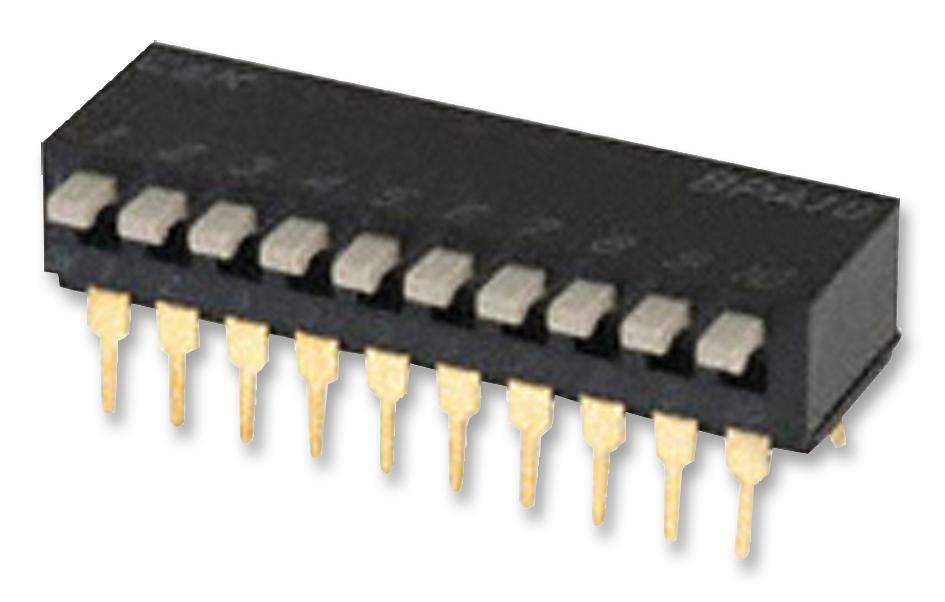

C&K Components (BPA10B) DIP / SIP Switch, SPST, 25 VDC, 25 mA

DIP / SIP Switch, 10 Circuits, Piano Key, Through Hole, SPST, 25 VDC, 25 mAProduct InformationNo. of Circuits: 10CircuitsContact Configuration: SPSTSwitch Actuator Style: Piano KeySwitch Mounting: Through HoleSwitch Type: DIP UnsealedContact Voltage DC Max: 25VDCContact Current DC Max: 25mAProduct Range: BPAProduct OverviewThe BPA series DIP Switch with side actuated contacts and high pressure contactsystem does not require tape seal for washing. Suitable for use with addressswitch for industrial controls, logic switching for computers and peripherals,function controlling for numerous applications.10000 Cycles minimum mechanical and electrical life at 5VDC 10mA50mR Initial maximum contact resistance100MR Minimum insulation resistance at 100VDC800 grams Maximum operating forceUL94V-0 Flammability rated PPS housingUL94V-0 Flammability rated PPS coverUL94V-0 Flammability rated PA-6T actuatorBeryllium copper with gold over nickel plate contactsBrass, gold over nickel plate terminals-20 to 85°C Operating temperatureApplicationsIndustrial
