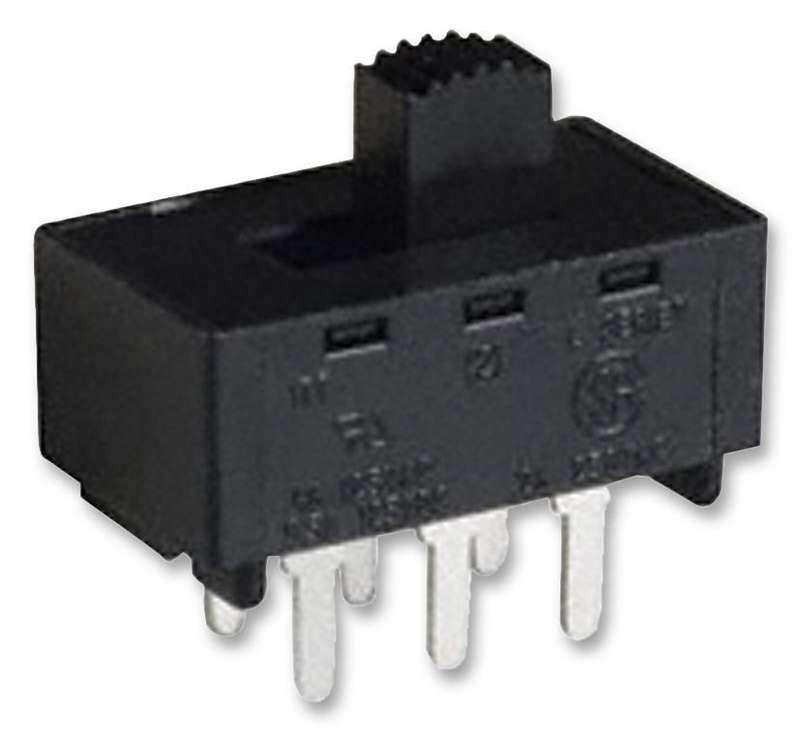

C&K COMPONENTS (L202011MS02Q) Slide Switch, DPDT, On-Off, Through Hole

Slide Switch, DPDT, On-Off, Through Hole, L Series, 4 A, 125 VProduct InformationContact Configuration: DPDTSwitch Operation: On-OffSwitch Mounting: Through HoleProduct Range: L SeriesContact Current Max: 4AContact Voltage AC Max: 125VContact Voltage DC Max: 28VOrientation: VerticalProduct OverviewThe L202011MS02Q is a Miniature Slide Switch with DPDT contact configuration andON-OFF switch operation. It is an L series switch features positive detent,enclosed housing, maintained and momentary functions.0.200" High actuator with detentPC Thru-hole terminationsSilver contacts10000 Make-and-break electrical life cycles at full loadBelow 50mR typical initial contact resistance at 2 to 4VDC, 100mA10?R Minimum insulation resistance1000Vrms Minimum dielectric strength at sea level-30 to +65°C Operating temperatureUL94V-0 Flammability rated black 6/6 nylon housingUL94V-0 Flammability rated black 6/6 nylon actuatorApplicationsIndustrial, Communications & Networking, Lighting
