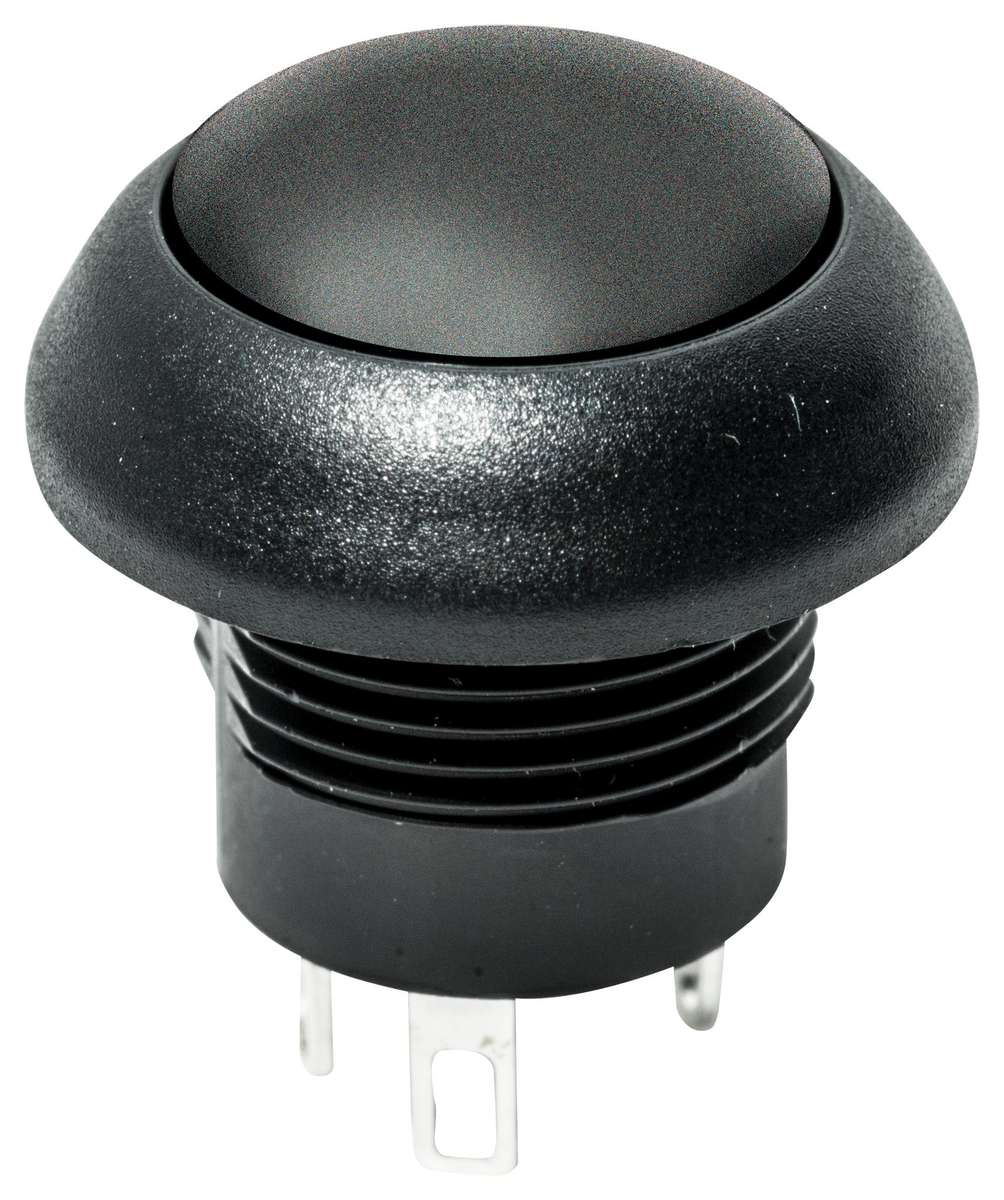

Industrial Pushbutton Switch,12.3 mm, SPST-NO, Momentary, Round Domed, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: PNP SeriesContact Configuration: SPST-NOContact Voltage AC Nom: -Panel Cutout Diameter: 12.3mmContact Voltage DC Nom: 32VSwitch Operation: MomentaryContact Current Max: 5APushbutton Actuator Style: Round DomedActuator / Cap Colour: BlackContact Current AC Max: -Contact Voltage VAC: -Contact Current DC Max: 5AContact Voltage VDC: 32VIP Rating: IP68Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe PNP8S2D2Y03QE from C & K Components is a PNP series sealed pushbuttonswitch. This switch is IP68 sealed to endure harsh environments. It featureslonger solder leads for ease of wire installation and multiple housing styles.The switch has PBT/PC housing, PBT base, cap and actuator, silicone rubberinternal seal, copper with silver nickel inlay, silver plating terminals, goldover silver plated copper alloy movable contact and epoxy terminal seal. Theinitial contact resistance is 50mohm maximum (without wire leads) and bouncetime is less than 5ms. Typical applications include control grips, off-roadpanels, heavy equipment, industrial instruments, lifts and conveyor controls.IP68 sealed to endure harsh environments1,000,000 life cycleLonger solder leads for ease of wire installationSPST-NO (double break) circuit, solder Lug (STD) terminationContact material is silver (std)5A/32VDC resistive (25,000 cycles), 3A/32VDC resistive (25,000 cycles) contactrating1000000 life cycle, IP68 sealingOperating force is 8newtons, 15KV minimum ESD protectionDielectric strength is 1000V AC for 1min, insulation resistance is 1Gohm at500VDCOperating temperature range from -40?C to +85?CApplicationsAutomation & Process Control, Industrial
