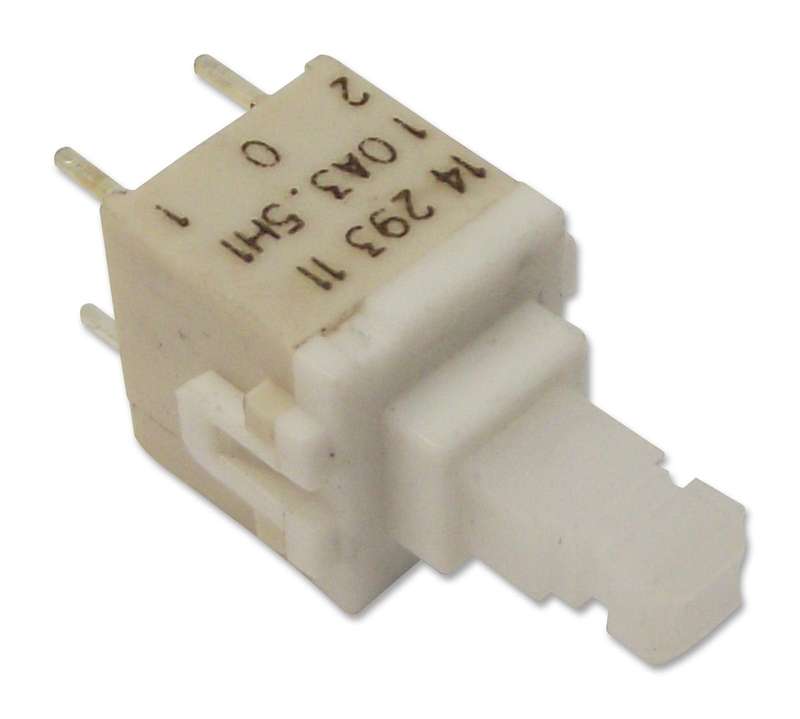

C&K Components (PVA1 EE H1 3.5N V2) Pushbutton Switch, PVA, DPST, On-Off

Product InformationPushbutton Switch Type: StandardSwitch Operation: On-OffProduct Range: PVAContact Configuration: DPSTContact Voltage AC Nom: -Contact Voltage DC Nom: 32VContact Current Max: 100mAPushbutton Actuator Style: -Actuator / Cap Colour: -Contact Current AC Max: -Contact Voltage VAC: -Contact Current DC Max: 100mAContact Voltage VDC: 32VIP Rating: -Switch Mounting: -Switch Terminals: PC PinIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe PVA1 EE H1 3.5N V2 is a double-pole single-throw (DPST) Short Stroke KeySwitch with PC pin terminals, 2 make-contacts and push-push mechanical function.It supports 2 soldering process, wave soldering is compatible with lead freesoldering profile and hand soldering at 350°C for 3 seconds.Compact designShort stroke to latchNon-shorting switching mode17.5mm Total height3.5N Operating forceApplicationsAutomotive, Industrial
