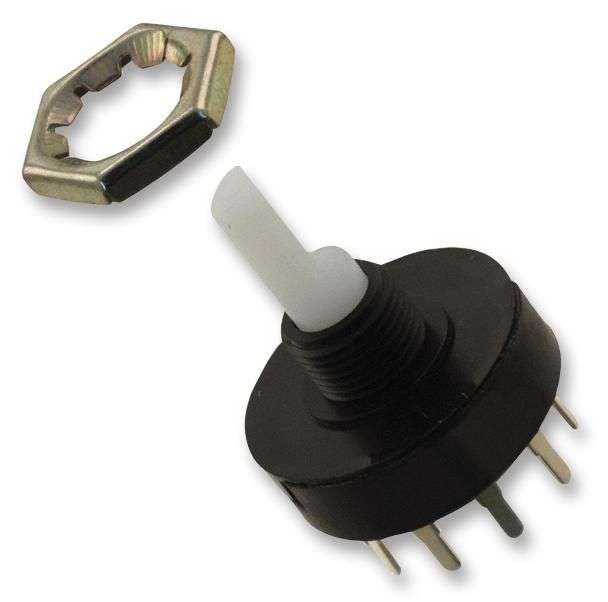

C&K Components (R20507RR02Q) Rotary Switch, 5 Position, 2 Pole, 36 °, 5 A

Rotary Switch, 5 Position, 2 Pole, 36 °, 5 A, 125 V, Rota-Slide R SeriesProduct InformationNo. of Switch Positions: 5 PositionNo. of Poles: 2 PoleAngle of Throw: 36°Contact Current AC Max: 5AContact Voltage AC Max: 125VProduct Range: Rota-Slide R SeriesIllumination: Non IlluminatedContact Current DC Max: 500mAContact Voltage DC Max: 125VProduct OverviewThe R20507RR02Q is a 2-pole 5-position 36° ROTA-SLIDE® Rotary Switch with PCthrough-hole termination, 0.5-inch high with 0.156-inch flat nylon 6/6 actuatorand 3/8-32 threaded bushing mounting style. The R series switch has silverplated copper contact and nylon 6/6 housing/bushing.Positive detentEnclosed1000Vrms at sea level Minimum dielectric strengthApplicationsIndustrial, Portable Devices
