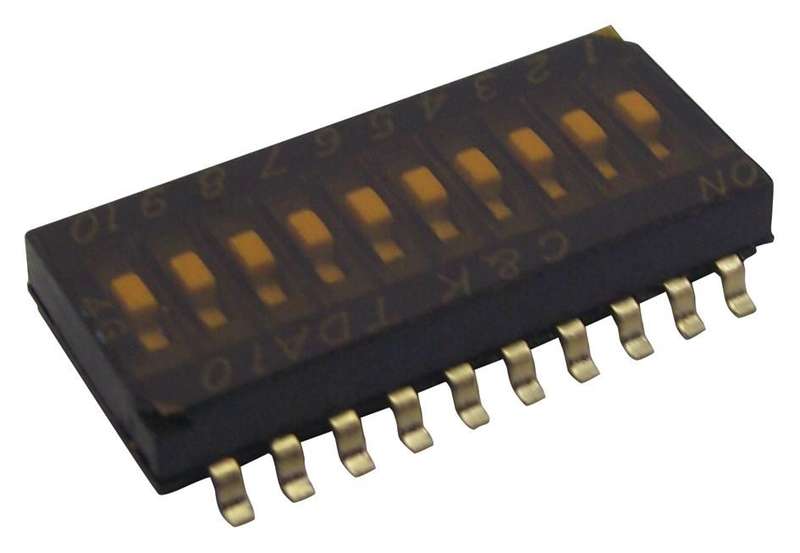

C&K Components (TDA10H0SB1) DIP / SIP Switch, SPST, 24 V, 100 mA

DIP / SIP Switch, 10 Circuits, Slide, Surface Mount, SPST, 24 V, 100 mAProduct InformationNo. of Circuits: 10CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Surface MountSwitch Type: DIPContact Voltage DC Max: 24VContact Current DC Max: 100mAProduct Range: TDAProduct OverviewThe TDA series half-pitch DIP Switch features ultra-miniature surface-mount andbifurcated contact for increased electrical reliability. Process sealed forsurface mount soldering and washable processing. Suitable for use with hand-heldelectronic devices, portable computer and electronic devices and instrumentationcontrols applications.1000 Cycles mechanical and electrical life100mR Maximum contact resistance100MR Minimum insulation resistance at 100VDC300VAC Minimum dielectric strength4.9N Maximum operating forceUL94V-0 Flammability rated PPS case and coverUL94V-0 Flammability rated LCP actuatorCopper alloy with gold plate over nickel plate contactsCopper alloy with gold flash over nickel plate terminals-40 to 85°C Operating temperatureApplicationsIndustrial, Computers & Computer Peripherals, Sensing & Instrumentation
