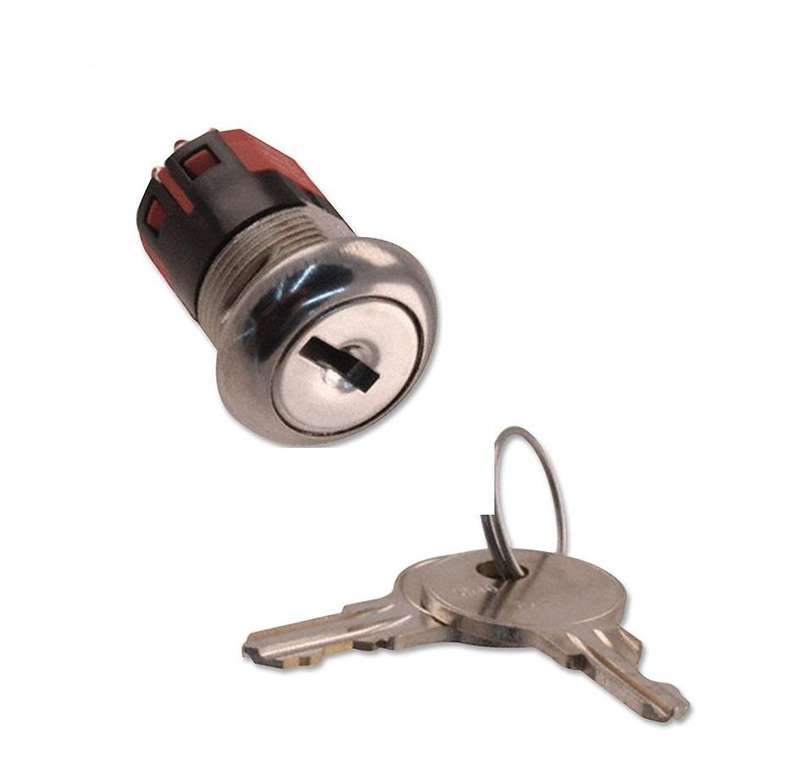

C&K Components (Y108122A203NQ) Keylock Switch, Momentary Spring Return

Keylock Switch, Momentary Spring Return, SPST, Y, 1 Position, Solder, 4 AProduct InformationSwitch Operation: Momentary Spring ReturnContact Configuration: SPSTProduct Range: YNo. of Switch Positions: 1 PositionSwitch Terminals: SolderContact Current Max: 4AContact Voltage AC Nom: 125VContact Voltage DC Nom: 28VAngle of Throw: 45°Product OverviewThe Y108122A203NQ is a single-pole triple-throw (SP3T) 45° momentary TumblerSwitchlock with solder lug (with hole) termination, two nickel plated brasskeys, 4 tumbler lock and stainless steel facing lock finish. The Y series switchhas silver plated copper contact, zinc alloy mounting nut and glass filledpolyester housing.Below 10mR typical initial at 2 to 4VDC 100mA Contact resistance1000Vrms at sea level Minimum dielectric strengthApplicationsComputers & Computer Peripherals
