C5/8-ER20-100 Straight Shank Collet Chuck Holder CNC Milling Tool Holder

20 available / new

R554.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3464

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641118860

Description:

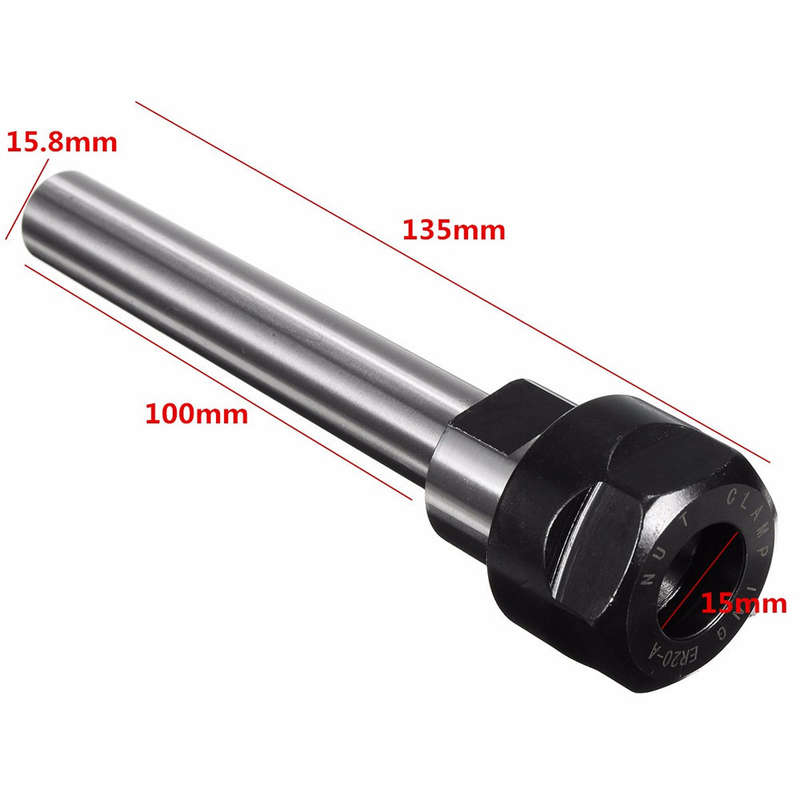

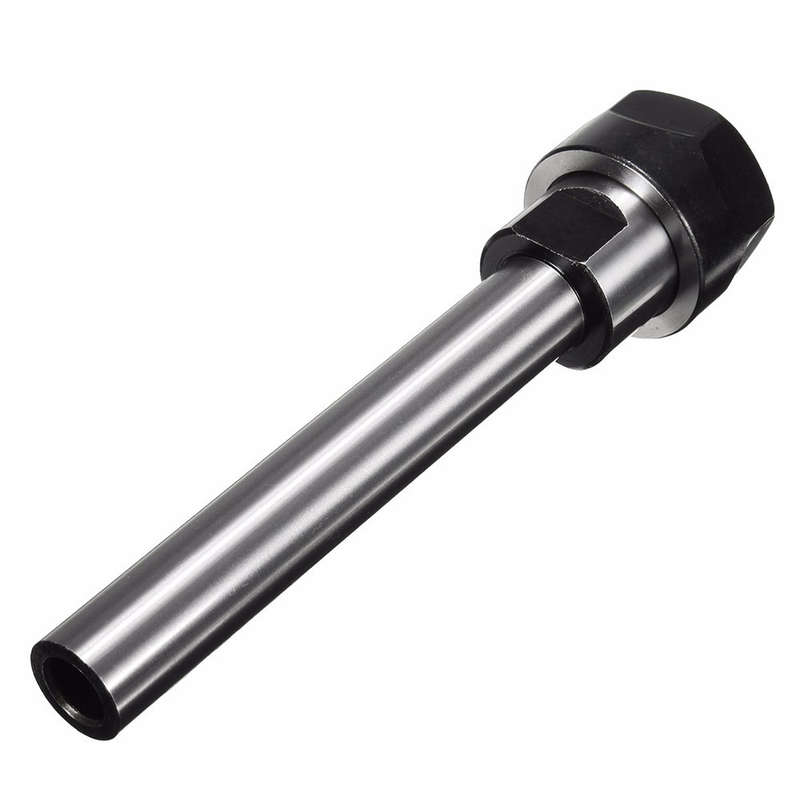

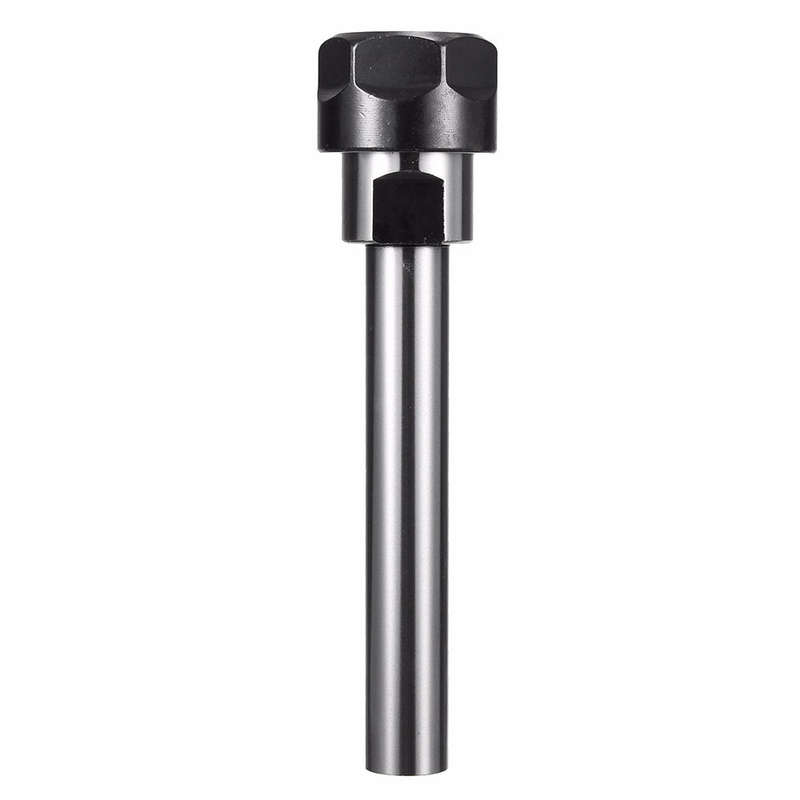

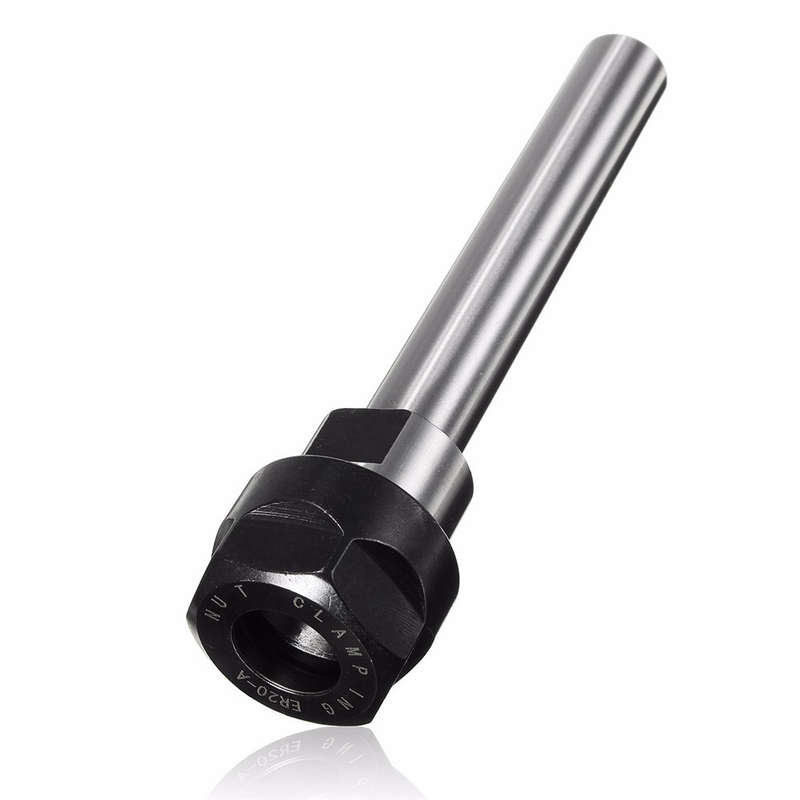

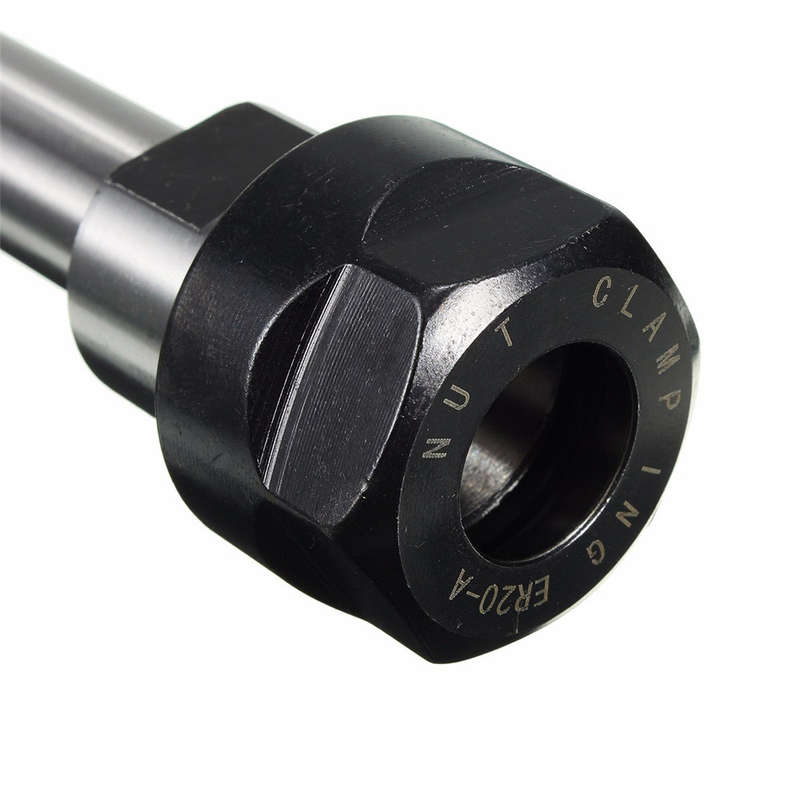

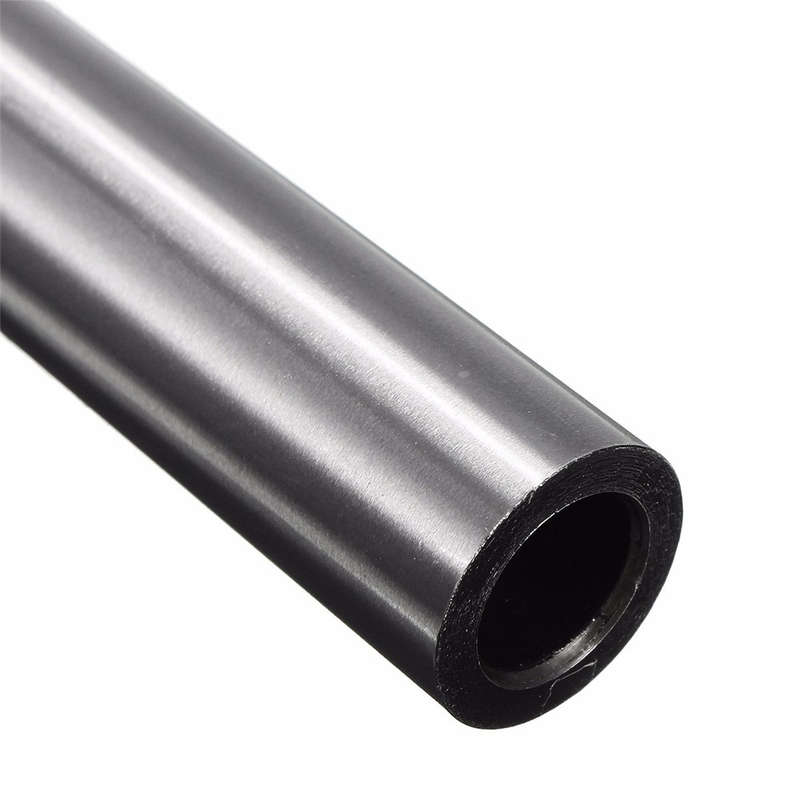

C5/8-ER20-100 Straight Shank Collet Chuck Holder CNC Milling Tool

Specification:

Model	ER20
Material	Metal
Clamp handle outer diameter:	15.7mm/ 5/8 inch
Designed with collet Model	DIN6499B 0.01MM (0.0004) Run-Out Tolerance
Shank length	100mm/4 inch
Quantity	1pcs

Features:
-Straight shank type extended handle, the handle body was longer. -Applicable to deep hole processing, resolve to extend the depth of processing needs. -The nut can direct tighten, high rigidity and strong clamping force. Usage: 1: First clip the headgear into the nut, then tighten directly, Benxi high, holding strong. 2: Straight shank type extended handle, the handle body longer apply deep processing, solving the need to extend the depth of processing. 3: You can reduce the use of extension tools, which can reduce costs and improve efficiency. 4: Extension rod diameter, and the other parts are precision grinding, can eliminate unbalance, increased safety when cutting. Package Included:
1 x C5/8 Shank Holding all ER20 collets

More Details:
