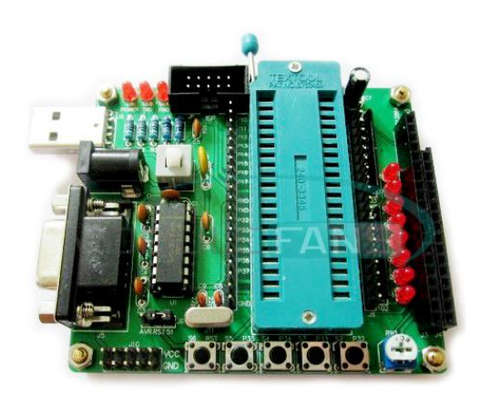

C51/AVR MCU DEVELOPMENT BOARD/LEARNING BOARD
Product information
This is a development board for the 51 series of microcontrollers. The STC89C52 and STC12C5A60S2 can be serially programmed. The AT89S series microcontroller needs to be programmed with an external USBISP device plugged in and a download manager program. The board has a resettable fuse for short circuit and over-current protection.
Specifications
Supports all the popular 51 series of microcontrollers such as STC89C52, STC12C5A60S2, AT89C51, AT89C52, AT89S51, AT89S52
Unit has 5 x momentary push buttons
Header for LCD1602 display
Header for LCD12864 display
Socket for USBISP programming device
11.0592MHz crystal
MAX232 communications IC
Serial DB9 socket
40 pin ZIF socket
Package Includes
1 x C51/AVR MCU development board/Learning Board (microcontroller not included)
