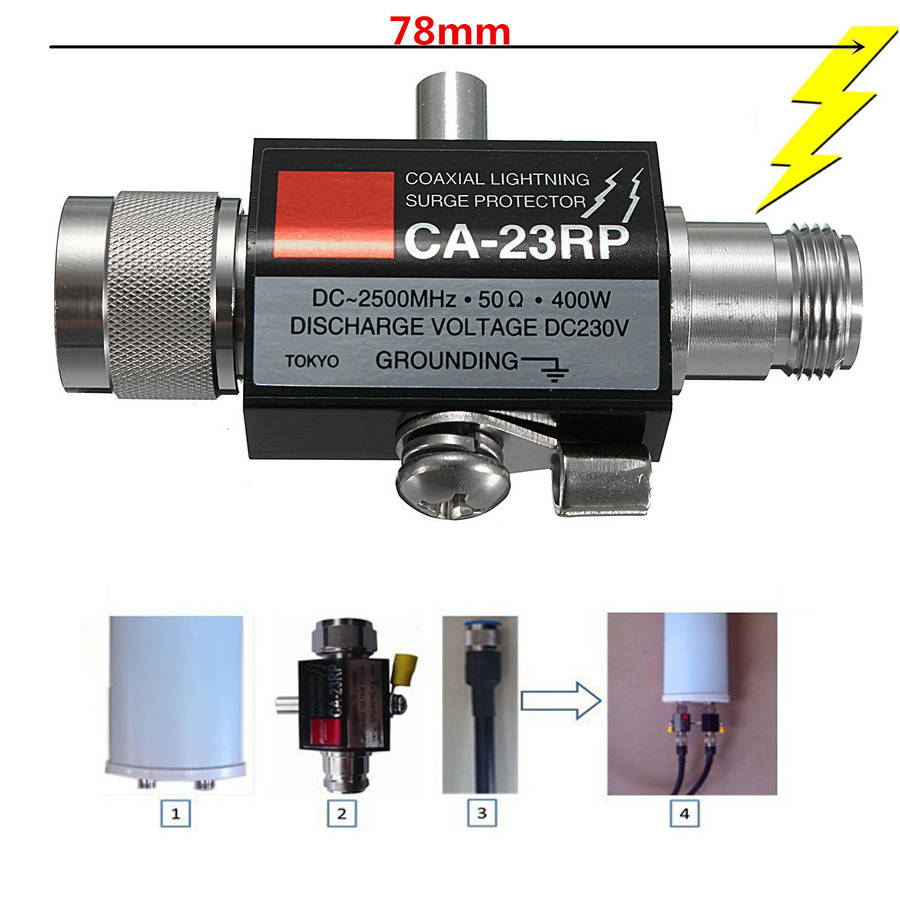

Frequency range | DC 2500MHz |
VSWR | Less than1.1 |
Loss | Less than 0.2dB |
Withstand power | 400W PEP |
Voltage at discharge start | DC350V±15% |
Discharge voltage of shock wave(1 x 40)μS | 1,000V |
Withstand current of shock wave(1 x 40)μS | 6,000A |
Repetitive discharge of shock wave(1 x 40)μS 500A,over 500 times | DC350V±20% |
Insulating resistance DC 100V | Over 10,000MΩ |
Connector | M Type |
Dimensions | 78W x 41H x 20Dmm |
