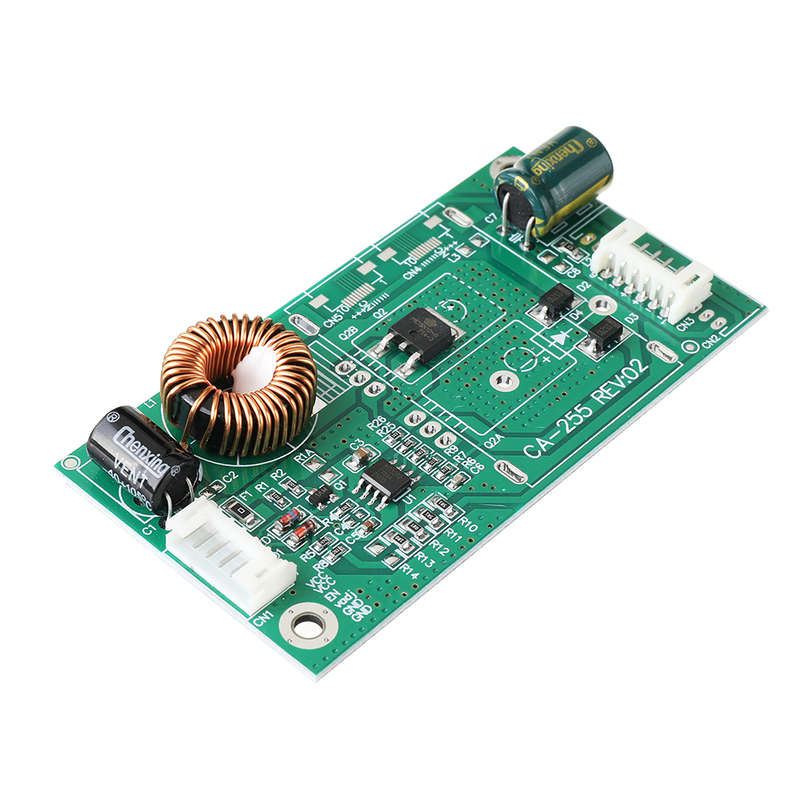

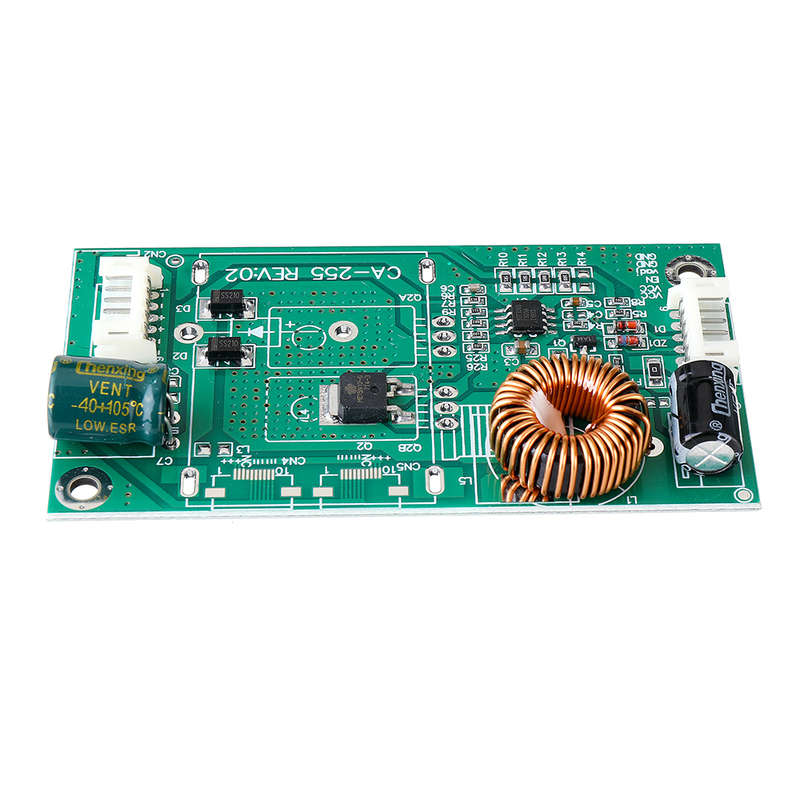

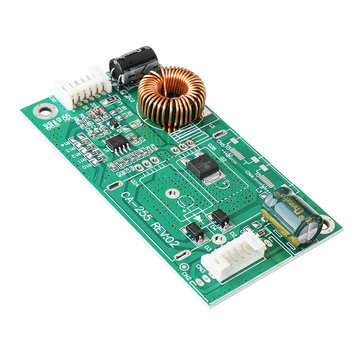

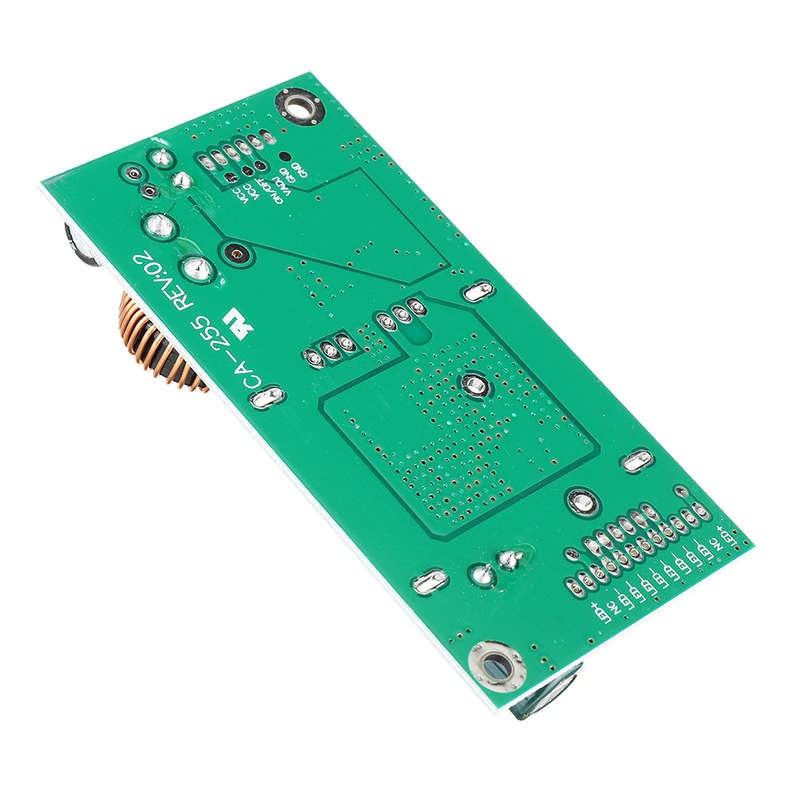

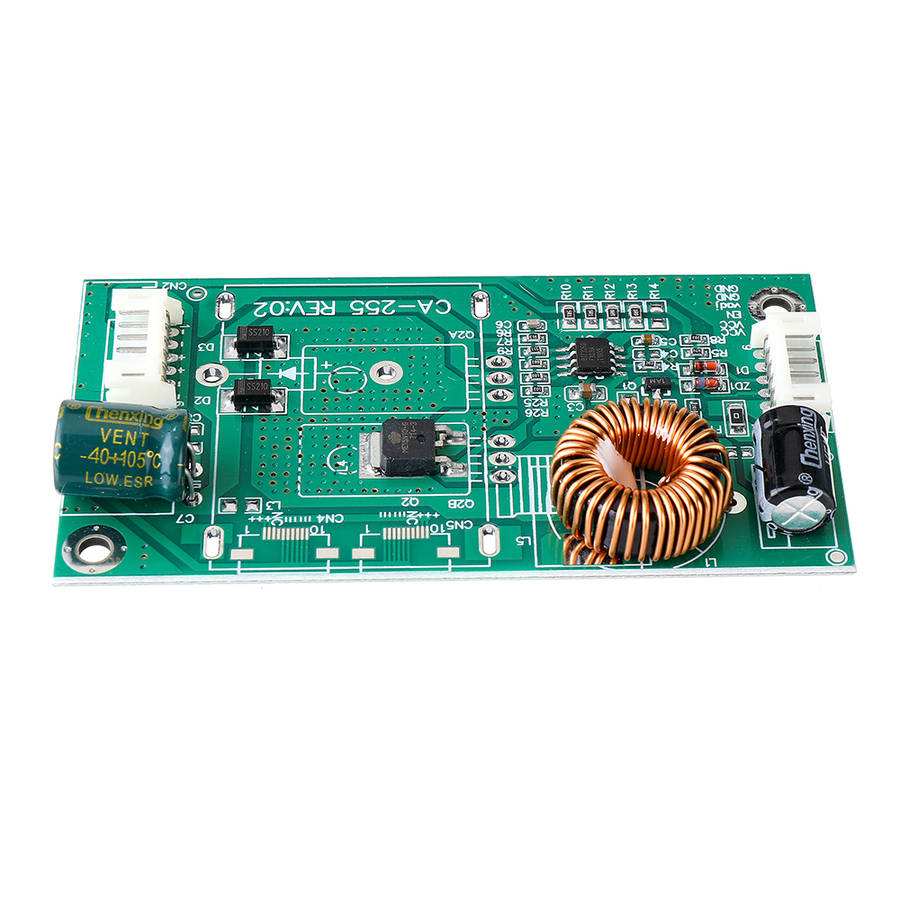

CA-255 10-42Inch LED TV Constant Current Board Universal Inverte LED TV Backlight Driver Board

Name: CA-255 10-42Inch LED TV Constant Current Board Universal Inverte LED TV Backlight Driver Board
SKU: 1612995[ICS]
Price: 101.69 ZAR
Availability: SoldOut

New

1 was available

Indicative market price: R137.28

R101.69

26% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10227

98.46 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

International

Product code

1612995[ICS]

Bob Shop ID

545113223

Specification:

Input Vol:: 10.8-28V

Output Vol:: 15-88v

size: 8.5x4.5CM

1.VCC: power supply and voltage positive, circuit voltage (The voltage is usually 12V or 24V)

2.ON / OFF, ON, EN, ON_BL etc: switch foot, foot switch signal (The voltage range is between 2.5V-5V)

3. PWM, PDIM, VDAJ, BL-PWM et al: brightness adjustable feet (Dimming have two modes, one is in digital mode -PWM,

one is analog dimming -DC

4.The PWM is called pulse width adjustment, which generates a rectangular square wave signal,the frequency is generally 200HZ-2KHZ,the voltage amplitude is generally 3.3V, PDIM English shorthand, Dim means"brightness."

The Analog dimming is by the DC voltage ,it is usually transferred directly to the foot which provide 0V-5V DC voltage to control the brightness.

GND: ground (negative)

LED +: light-emitting diode (LED strip) Positive

LED-: light-emitting diode (LED strip) Negative

Package Included:

1 x CA-255 10-42Inch LED TV Constant Current Drive Board
