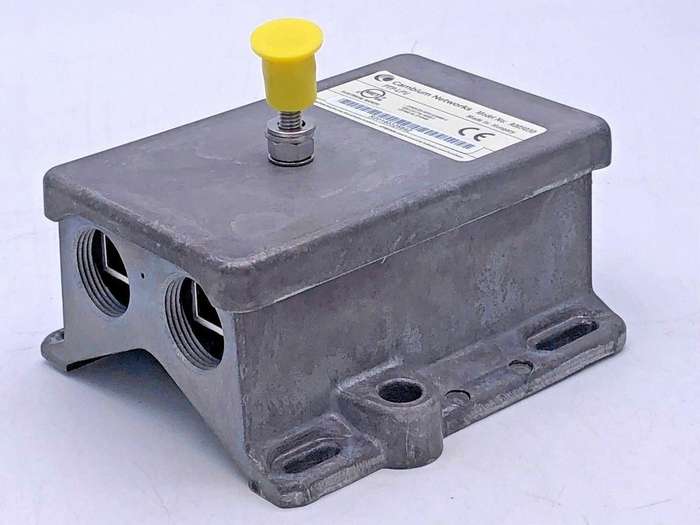

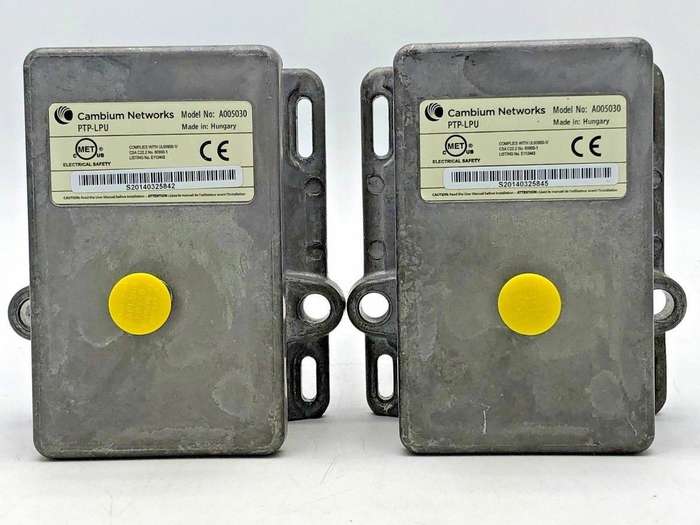

Cambium Networks A005030 LPU and Grounding Kit –

The Cambium Networks A005030 LPU (Lightning Protection Unit) with grounding kit is designed to safeguard outdoor networking equipment against power surges and lightning strikes. Built with rugged environmental protection (IP66/67), it ensures reliable performance in harsh outdoor conditions, providing a first line of defense for wireless infrastructure.

Key Features & Benefits

Surge protection with line-to-line and line-to-ground protection modes
High-speed 1000 Base-T throughput with RJ-45 connectors
Rugged IP66/IP67 weatherproof enclosure for outdoor use
Ultra-fast 5 nanosecond response time for effective lightning defense
Flexible mounting pole (13") or wall installation
Withstands extreme weather: -40°C to +60°C, 100% condensing humidity
Protects mission-critical Cambium Networks wireless infrastructure

Ideal Uses

Outdoor wireless networking deployments
Protecting access points, radios, and antennas from lightning surges
ISP and enterprise-grade networking infrastructure
Installations in harsh environments with high exposure to storms

Specifications

Condition: device with no signs of use. Device has been tested and is 100% functional.
Brand: Cambium Networks
Model: A005030
Product Type: Lightning Protection Unit (LPU) with Grounding Kit
Transfer Rate: 1000 Base-T
Connectors: RJ-45
Protection Mode: Line-to-line and line-to-ground
Response Time: 5 nanoseconds typical
Surge Rating: 10/1000µs 150 Amps (min), 8/20µs 1500 Amps (min)
Mounting: Pole mount 13" (2575 mm) or wall mount
Dimensions: 16 cm (L) x 10 cm (W) x 9 cm (H)
Weight: 700 g (1.5 lbs)
Environmental Rating: IP66 / IP67 dust and water intrusion protection
Operating Temperature: -40°C to +60°C
Humidity: 100% condensing
Wing Loading: 150 mph (242 kph)
Warranty: 6 Month Carry-in Warranty
What's in the Box: LPU Unit
