Cambium Networks ePMP Force 4525L Feedhorn for 200L and 300-25L C050941F051A
Migrating an ePMP 3000-based network to the 4000 Series increases customer satisfaction, reduces churn, offers new higher speed packages, and increases capacity to bring new paying customers to your existing infrastructure. By migrating from the ePMP 3000 to the ePMP 4500 or ePMP 4500L AP gives you a burst in performance. And you get additional benefits for each existing SM that is upgraded to a Force 4525L SM.

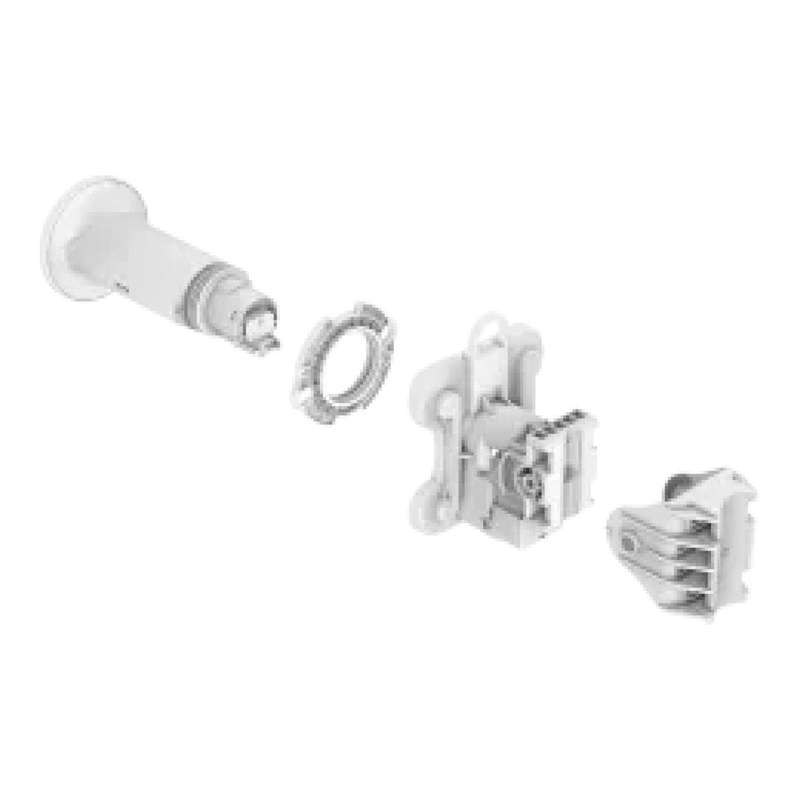

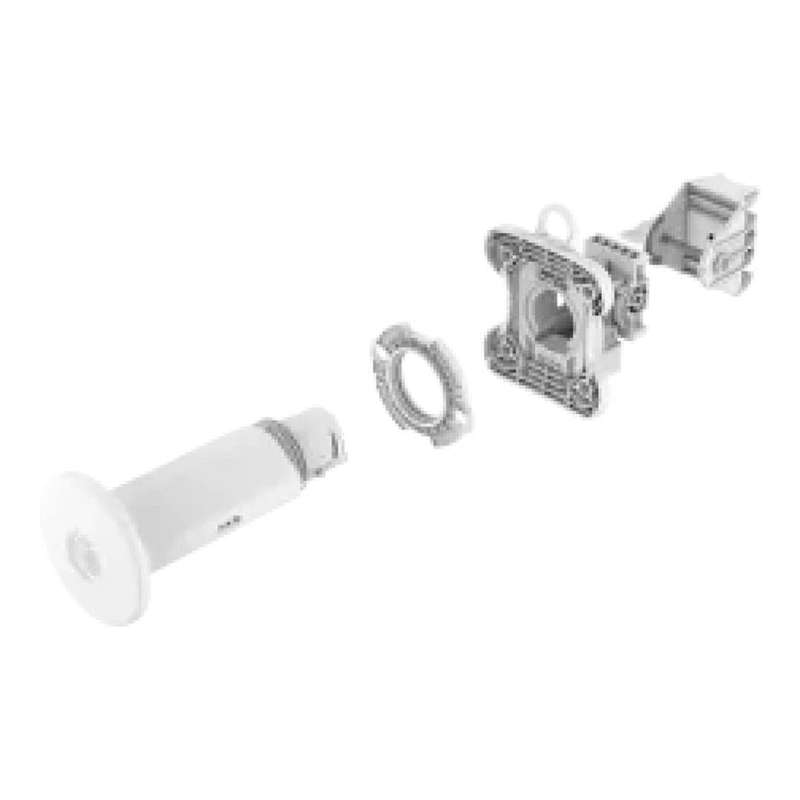

ePMP Force 4525L Feedhorn
The Force 4525L Feedhorn is an innovative approach that makes network migration easier and more cost effective.
The Force 4525L Feedhorn is the same radio as the Force 4525L with the same performance specifications and physical size, as well as a 3-year warranty. It just eliminates the parts you don't need when upgrading an existing dishbased SM
Features
- High capacity and latencies less than 5 ms when using ePTP technology
- Interoperability with the ePMP 4500, which uses MUMIMO to achieve up to 4 Gbps per sector by transmitting to 4 ePMP 4500 SMs simultaneously
- Multiple levels of QoS (Quality of Service) for voice, video, and data applications
- Security features that meat requirements of enterprise, industry, government, and service provider users
- Management by Cambium's cnMaestro™ Network Management System for easy provisioning, monitoring, and upgrades
- Network planning with LINKPlanner and cnHeat
Specifications
Channel: Width MHz 20 | 40 | 80 MHz
ARQ: Yes
Proprietary Physical: Layer 2x2 MIMO/OFDMA
Nominal Receive Sensitivity: (w/FEC) -20 MHz Channel MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Channel Spacing: Configurable in 5 MHz increments
Frequency Range:* Wide band operation 5150—5920 MHz
Nominal Receive Sensitivity: (w/FEC) -40 MHz Channel MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain)
MAC Layer: (Media Access Control) Cambium proprietary
Nominal Receive Sensitivity: (w/FEC) -80 MHz Channel MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain)
Ethernet Interface: 100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts
Modulation Levels (Adaptive): MCS 0 (BPSK) to MCS 11 (1024 QAM5/6)
Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Transmit Power Range: +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, cnMaestro
QoS (Quality of Service): Three level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast and station priority, MIR/CIR* support
VLAN: 802.1Q with 802.1p pr
