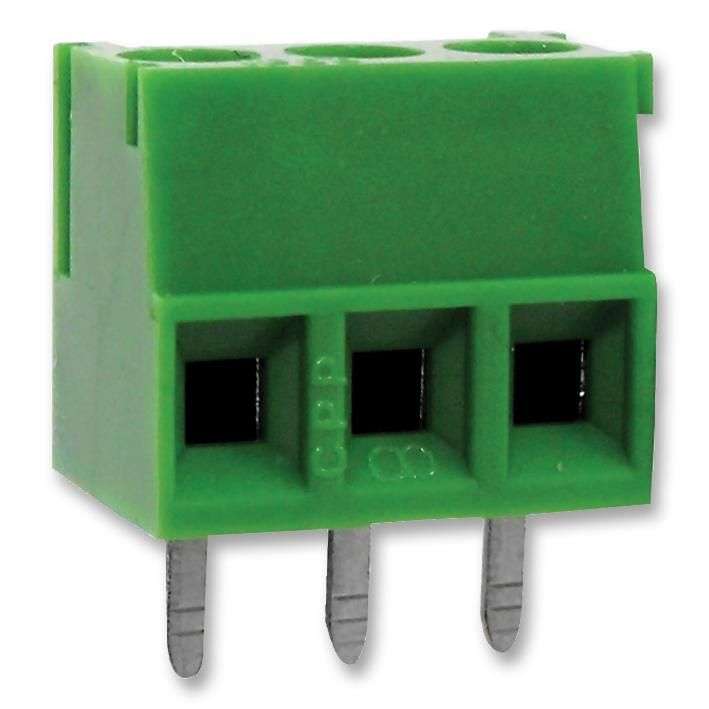

Camdenboss (CTB0305/3) Standard Terminal Block, Wire to Board

Standard Terminal Block, Wire to Board, CTB0305, 3 Contacts, 3.5 mm, TerminalBlock, PCB, PCB MountProduct OverviewThe CTB0305/3 is a 3-pole 3.5mm ultra low profile rising Clamp Terminal Blockmoulded in green UL94-V0 flame retardant PA (polyamide), brass contact withnickel-plated. 2 and 3 pole double interlocking mechanism for increased strengthand guided pin alignment. 300V 10A rated, 2.5kV dielectric strength, 6kV impulsewithstand voltage, M2 steel zinc plated and 0.3Nm screw/torque.4 to 12-pole Pre-assembledProfessional rising clamp terminals0.2 to 1.5mm² (30 to 16AWG) Solid cable0.2 to 1mm² (30 to 16AWG) Stranded cableCaptive screwsApplicationsIndustrialProduct InformationProduct Range: CTB0305No. of Contacts: 3ContactsPitch Spacing: 3.5mmConnector Type: Terminal Block, PCBConnector Mounting: PCB MountWire Size AWG Max: 16AWGWire Size AWG Min: 30AWGContact Plating: Nickel Plated ContactsContact Material: Brass
