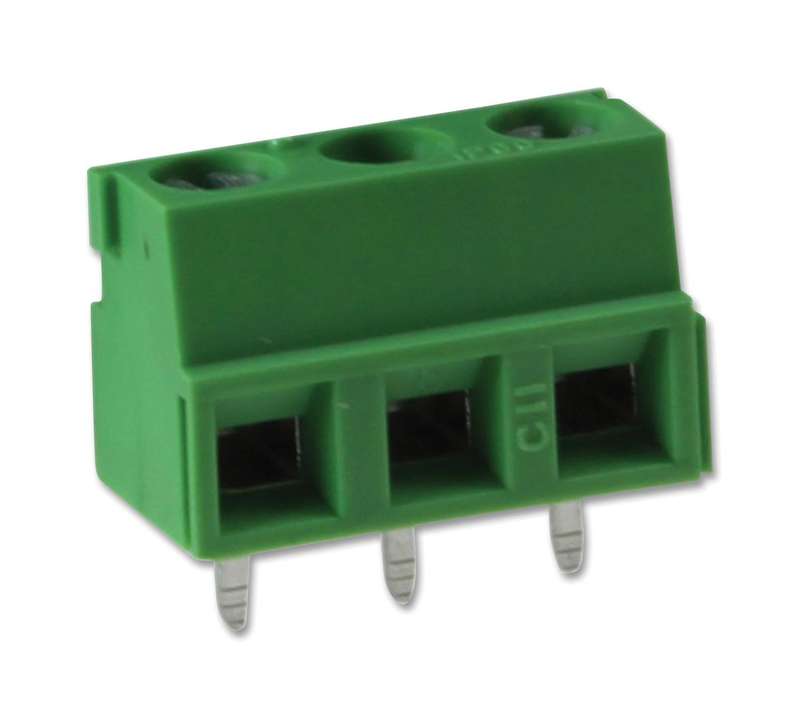

Camdenboss (CTB0508/3) Standard Terminal Block, Wire to Board, CTB0508

Standard Terminal Block, Wire to Board, CTB0508, 3 Contacts, 5.08 mm, TerminalBlock, PCBProduct OverviewThe CTB0508 series PCB Terminal Block with 5.08mm pitch and low-profile risingclamp. It has 2 and 3-pole double interlocking mechanism for increased strengthand moulded in green flame retardant PA. It is a professional rising clampterminal with 0.2 to 2.5mm² (30 to 14AWG) solid cable and 0.2 to 1.5mm² (30 to14AWG) stranded cable.UL94V-0 Flammability4 to 12 Solid block end stackableGuided pin alignmentCaptive screwsApplicationsIndustrialProduct InformationProduct Range: CTB0508No. of Contacts: 3ContactsPitch Spacing: 5.08mmConnector Type: Terminal Block, PCBConnector Mounting: PCB MountWire Size AWG Max: 14AWGWire Size AWG Min: 30AWGContact Plating: Nickel Plated ContactsContact Material: Brass
