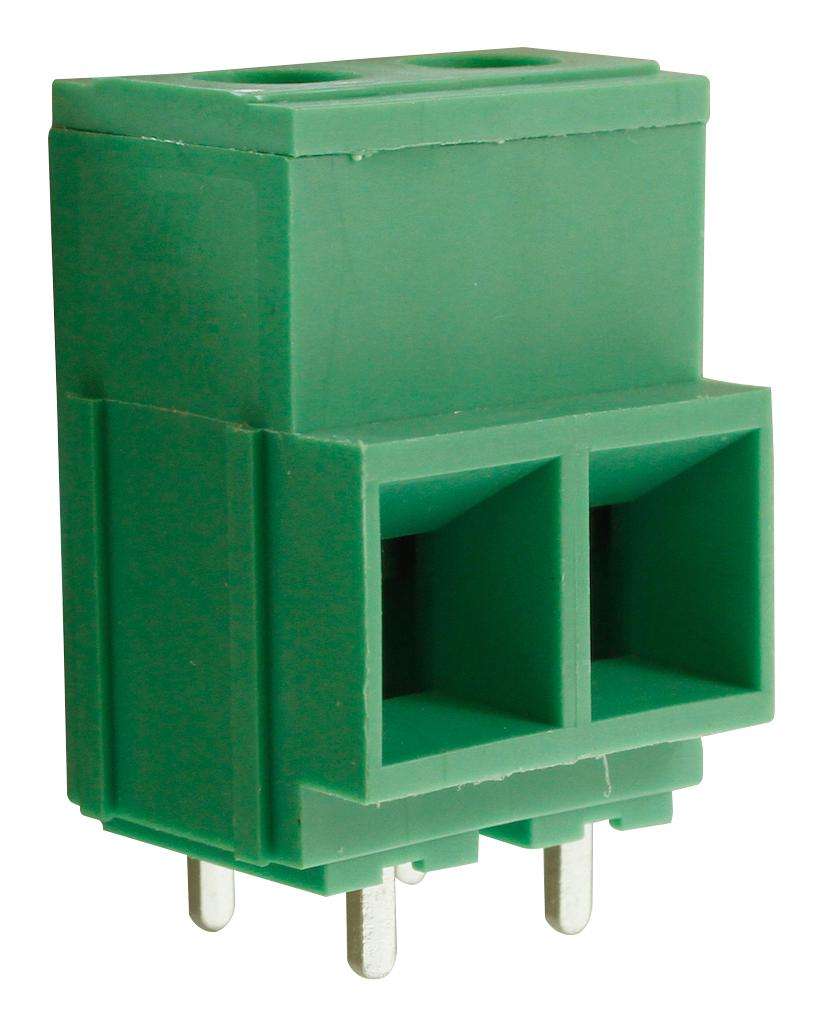

Camdenboss (CTBP77VP/2) Wire-To-Board Terminal Block, 10.16 mm, 2 Ways,

Wire-To-Board Terminal Block, 10.16 mm, 2 Ways, 20 AWG, 6 AWG, 10 mm², ScrewProduct OverviewThe CTBP77VP/2 from Camdenboss is a 10.16mm pitch very high power rising clampterminal block with 2 poles double interlocking mechanism for increasedstrength. It is moulded in green UL94-V0 flame retardant PA66 material. Approvedby UL and VDE.Wire size of 10mm² (20AWG to 16AWG)Professional rising clamp terminalCaptive screwsRating is UL=52A/300V, VDE=57A/750VInsulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohmcontact resistanceWorking temperature range from -40°C to 105°CBrass, nickel plated rising clampTin plated brass pinM4 steel, zinc plated screws20.3mm lengthApplicationsIndustrialProduct InformationPitch Spacing: 10.16mmWire Size AWG Min: 20AWGWire Size AWG Max: 6AWGConductor Area CSA: 10mm²Wire Connection Method: ScrewRated Current: 52ARated Voltage: 300VBlock Orientation: Through Hole Right AngleProduct Range: CamBlock Plus
