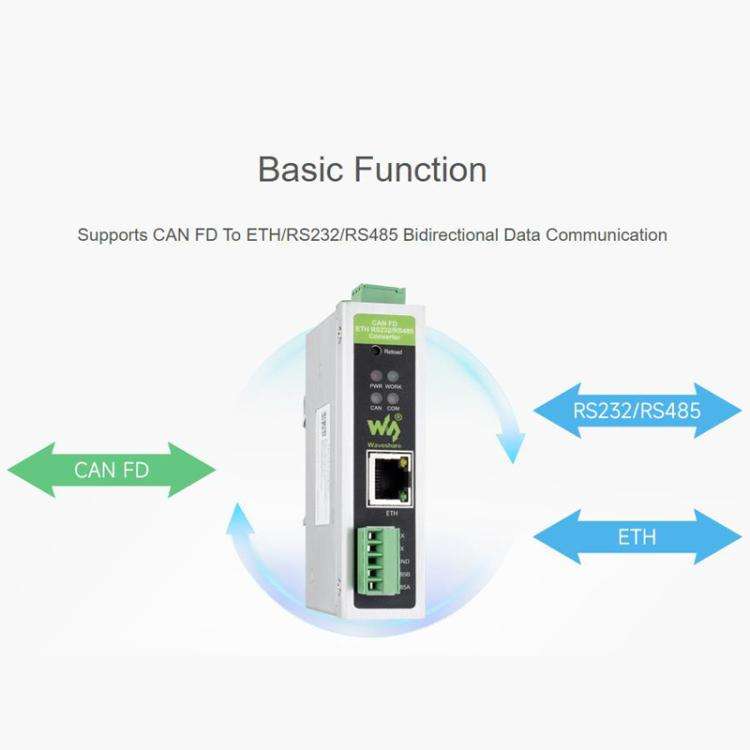

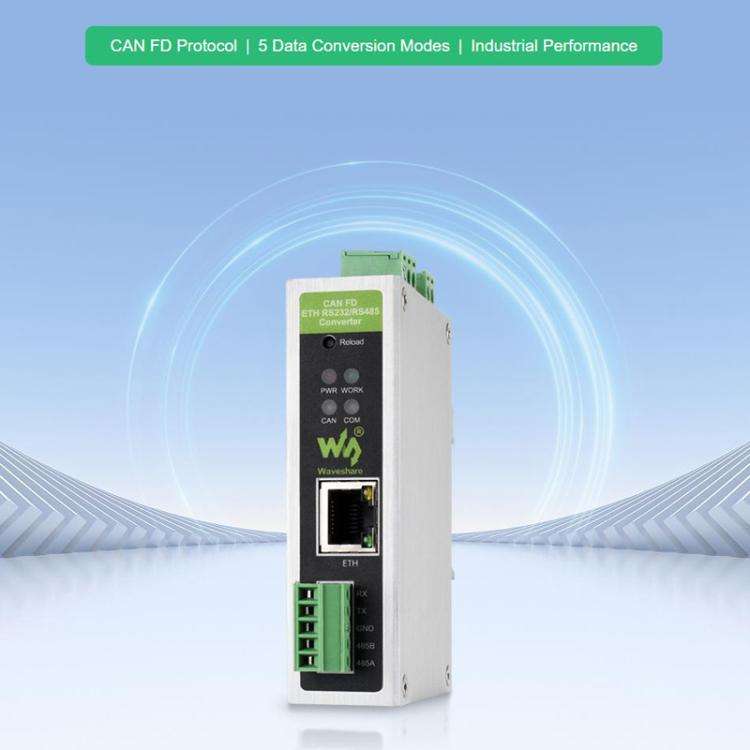

CAN FD Protocol Converter Bidirectional Data Communication, Supports 5 Data Conversion Modes And ...

1. Operating voltage: DC 9V - 36V
2. Installation: rail mounted
3. Reload button: long press to restore the use of settings

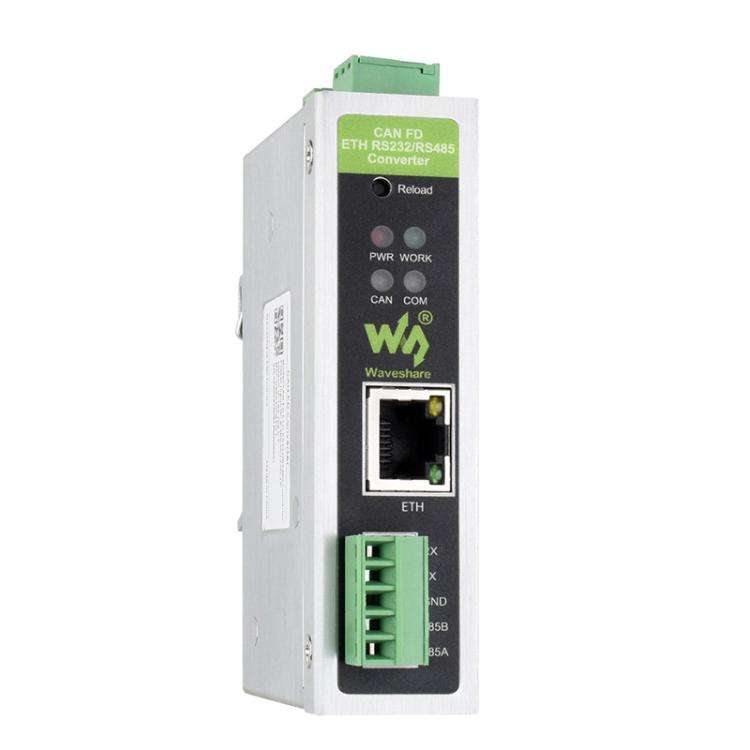

4. Indicator: POWER, WORK, COM, CAN
5. CAN port specification: 1 CAN port, support CAN FD, compatible with CAN 2.0A/2.0B

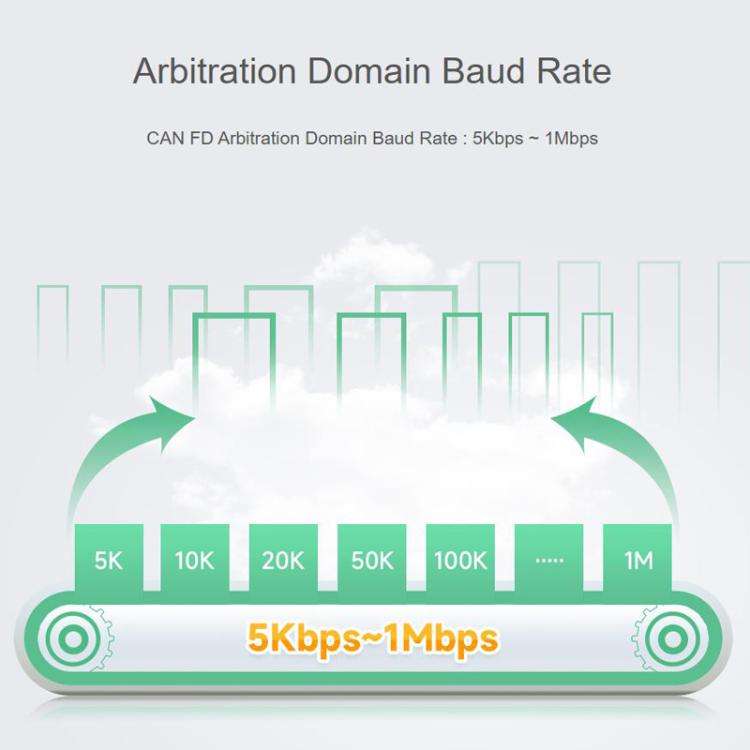

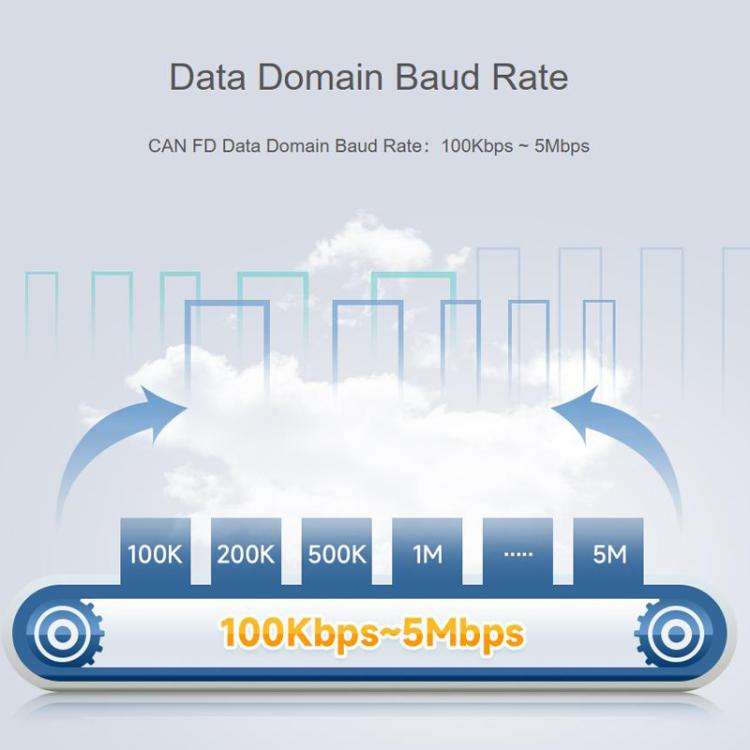

6. CAN port baud rate: 5Kbps - 1Mbps; data domain baud rate: 100Kbps - 5Mbps

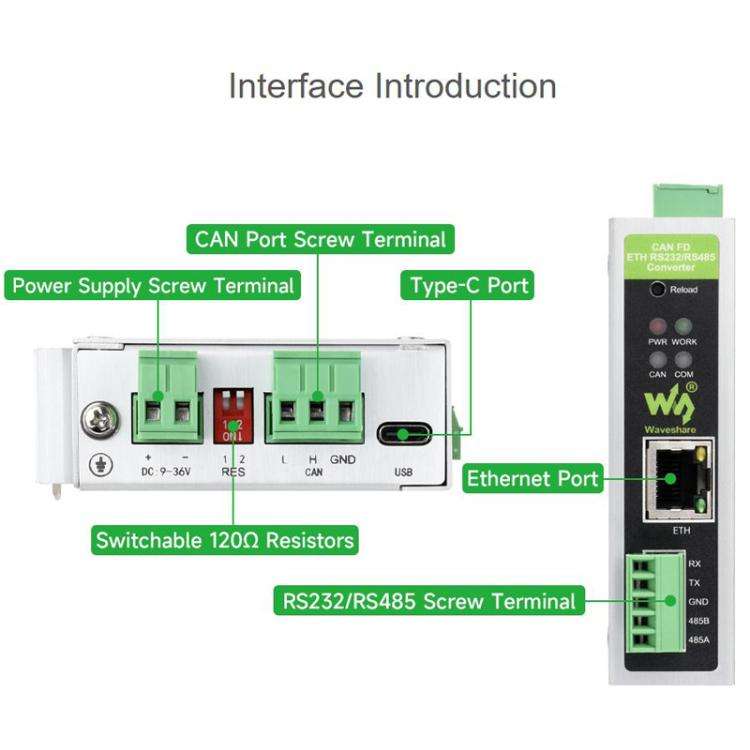

7. Termination resistor: built-in two 120-ohm termination resistors, dial any one of the dial code to ON, and connect a 120-ohm resistor in parallel, two dial code to ON, and connect two 120-ohm resistors in parallel
8. Network port specification: RJ45, 10/100Mbps, cross direct connection adaptive
9. Serial port specification: support one way RS485 or RS232 access
10. Operating temperature: -40 - 85 degrees Celsius
11. Storage temperature: -40 - 105 degrees Celsius
12. Operating/storage humidity: 5%RH ~ 95%RH (no dew)
13. Network protocol: TCP server, TCP client, UDP server, UDP client (network port)
14. Modbus gateway: Network port: CAN FD to Modbus TCP (master/slave); 15. Serial port: CAN FD to Modbus RTU (master/slave)
16. Send/receive messages: supports configuration of up to 64 messages

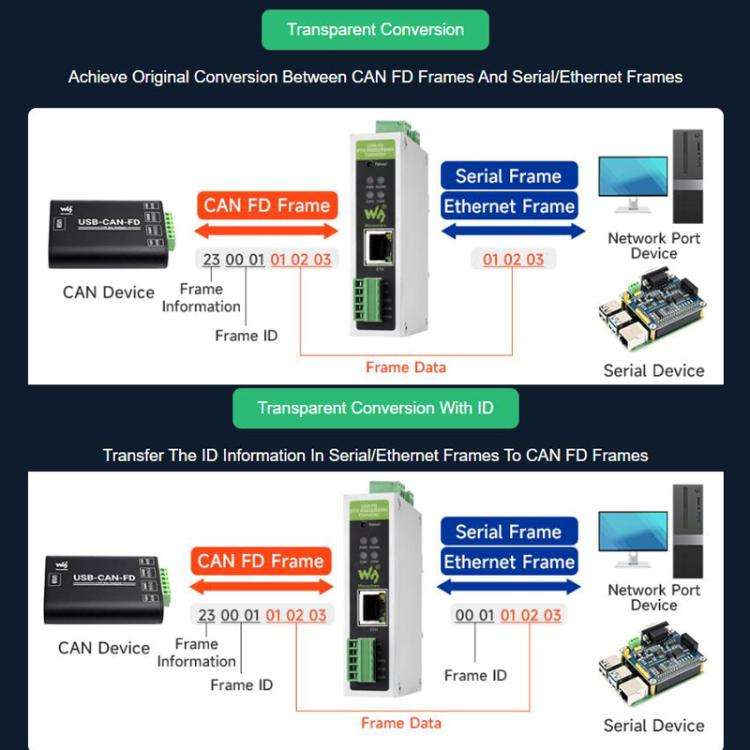

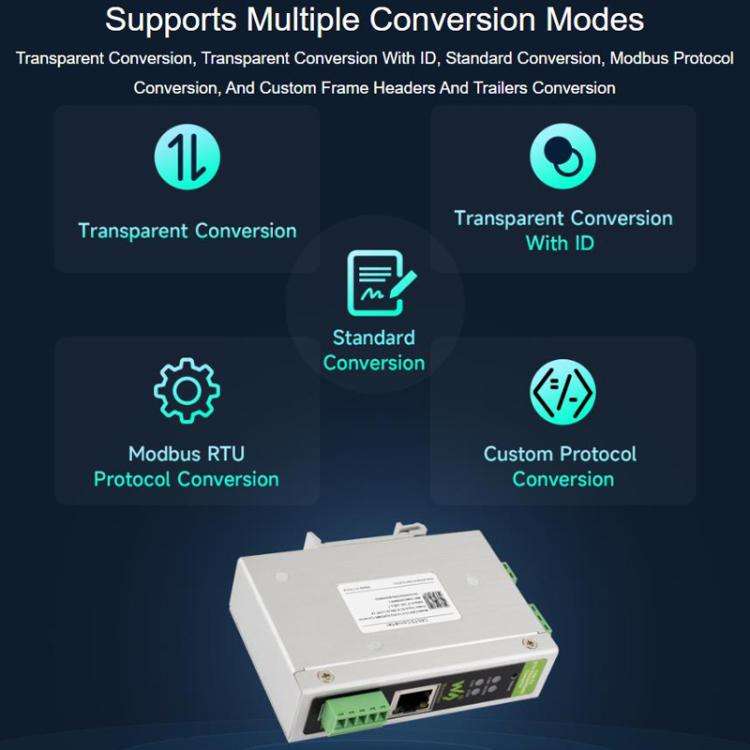

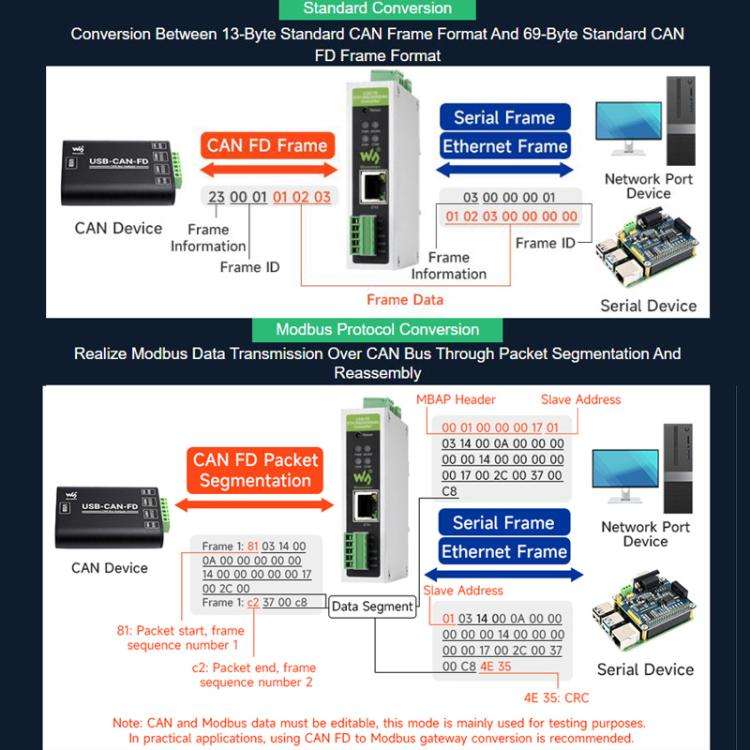

17. Conversion modes: transparent conversion, transparent conversion with ID, standard conversion, Modbus conversion, customized header and footer conversion
18. CAN ID: supports standard frame, extended frame

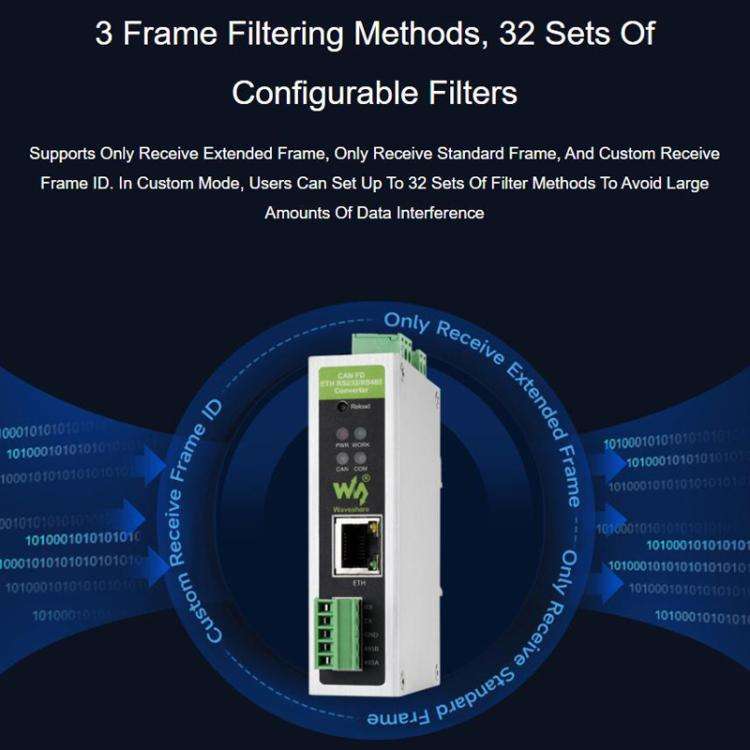

19. Frame ID filtering: supports standard frames only, extended frames only, customized input frame IDs (up to 32 groups)
20. Packed frame number and time: support customized packed frame number, customized packed time (network port)
21. Conversion direction: support bi-directional conversion, only serial/network port to CAN, only CAN to serial/network port
22. Firmware upgrade: support the upper computer firmware upgrade

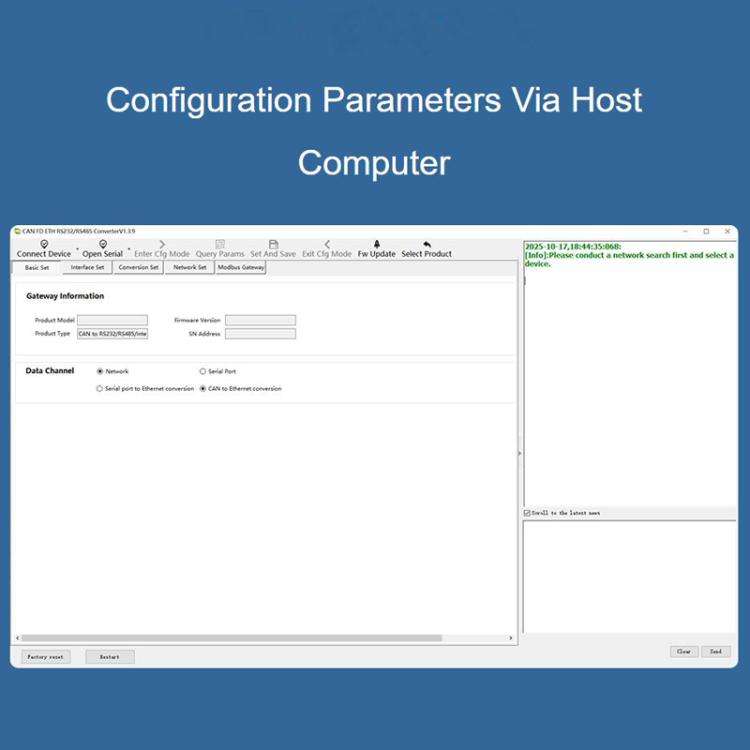

23. Parameter configuration: AT command, host computer software configuration

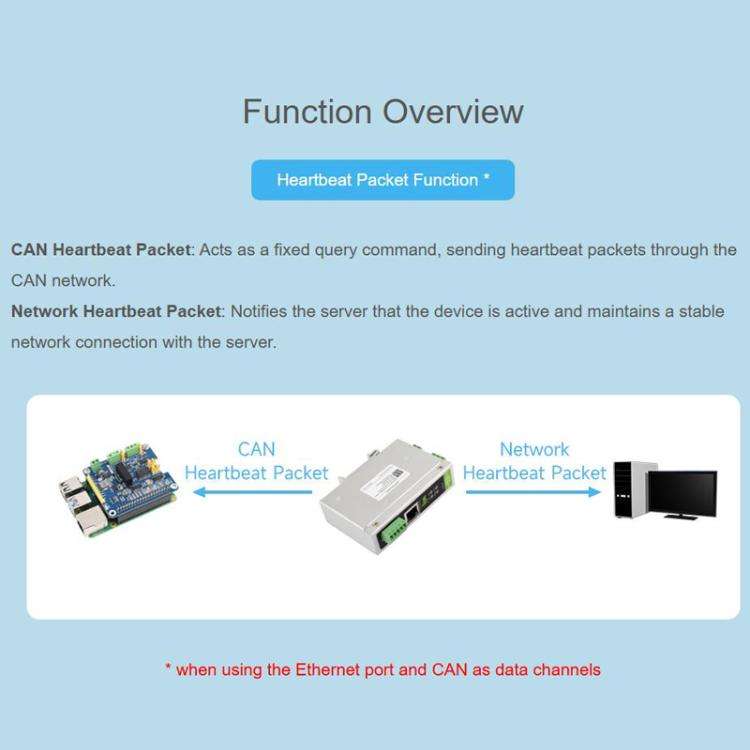

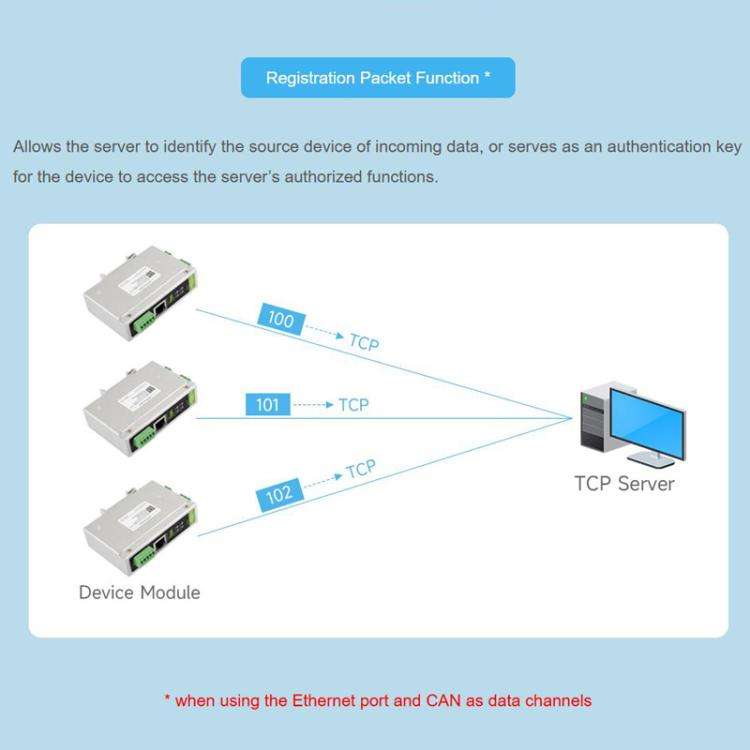

24. Other functions: support for heartbeat packets, registration packets; normal, loopback, listen-only mode (network port)

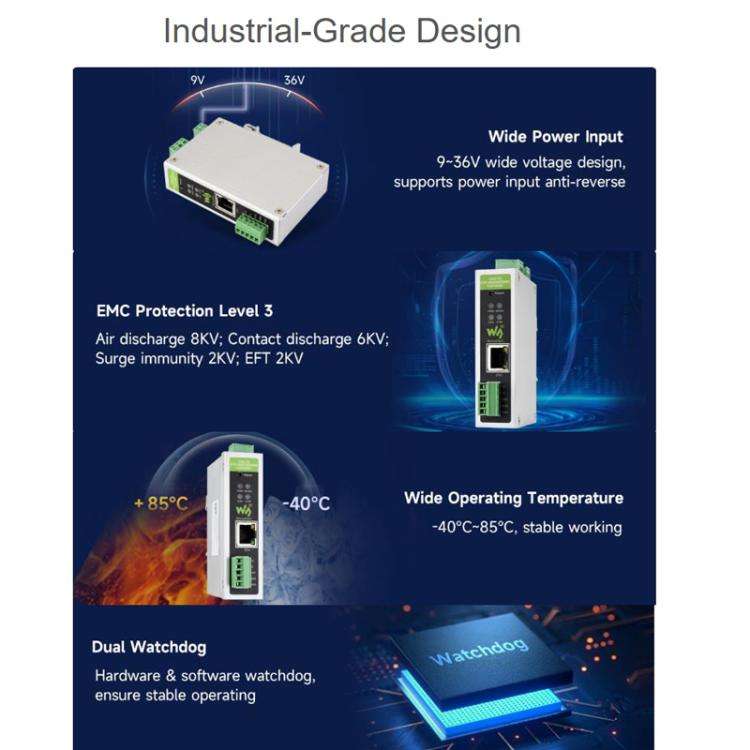

25. Electrostatic protection: air discharge 8KV, contact discharge 6KV
26. Electric fast pulse group: power supply circuit 2KV, RS485/RS232 circuit 1KV, CAN circuit 1KV, network interface circuit 1KV
27. Surge interference test: power circuit differential mode 1KV, common mode 2KV, CAN loop common mode 2KV, serial port loop common mode 2KV, network interface loop common mode 2KV
28. Size: about 11 x 8.56 x 2.7cm
