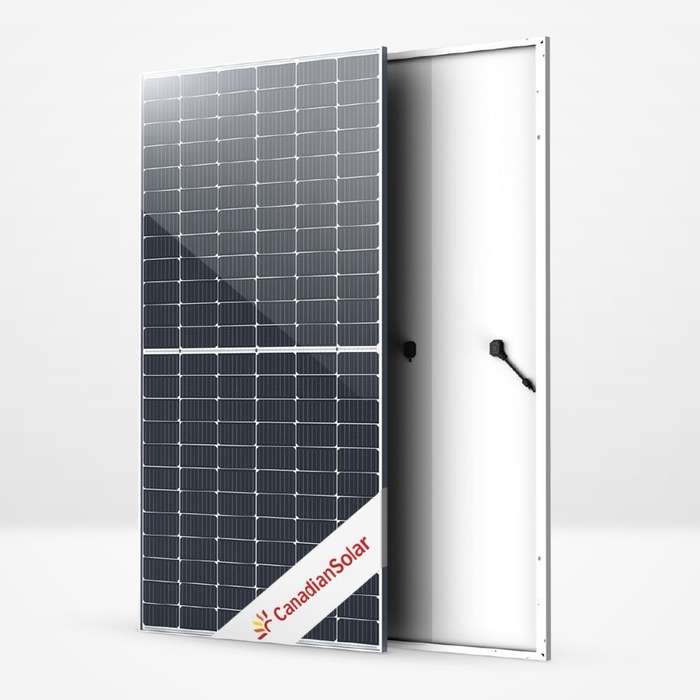

Canadian Solar 455W Super High Power Mono PERC HiKU with MC4-EVO2
Features
- Lower internal current, lower hot spot temperature.
- Cell crack risk is limited to a smaller area of the cell.
- Innovative symmetrical module design means better shading tolerance.
- Heavy snow loads up to 5400Pa and increased wind load up to 3600Pa.
- Product Warranty: 12 years.
- Performance Warranty: 25 years.
- 30mm frame thickness
Specifications
- Electrical Data | Stc*
- Model: CS6W-460MS.
- Nominal Max. Power (Pmax): 455 W.
- Opt. Operating Voltage (Vmp): 34.6 V.
- Opt. Operating Current (Imp): 13.17 A.
- Open Circuit Voltage (Voc): 41.2V.
- Short Circuit Current (Isc): 13.95A.
- Module Efficiency: 20.80%.
- Operating Temperature ;-40°C ~ +85°C.
- Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL).
- Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730).
- Max. Series Fuse Rating: 25 A.
- Application Classification: Class A Power Tolerance. * Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
Mechanical Data
- Cell Type: Mono-crystalline.
- Cell Arrangement: 144 [2 x (12 x 6)].
- Dimensions: 1905 mm x 1135 mm x 35 mm.
- Weight 24.00 kg.
- Front Cover: 3.2 mm tempered glass.
- Frame: Anodized aluminium alloy.
