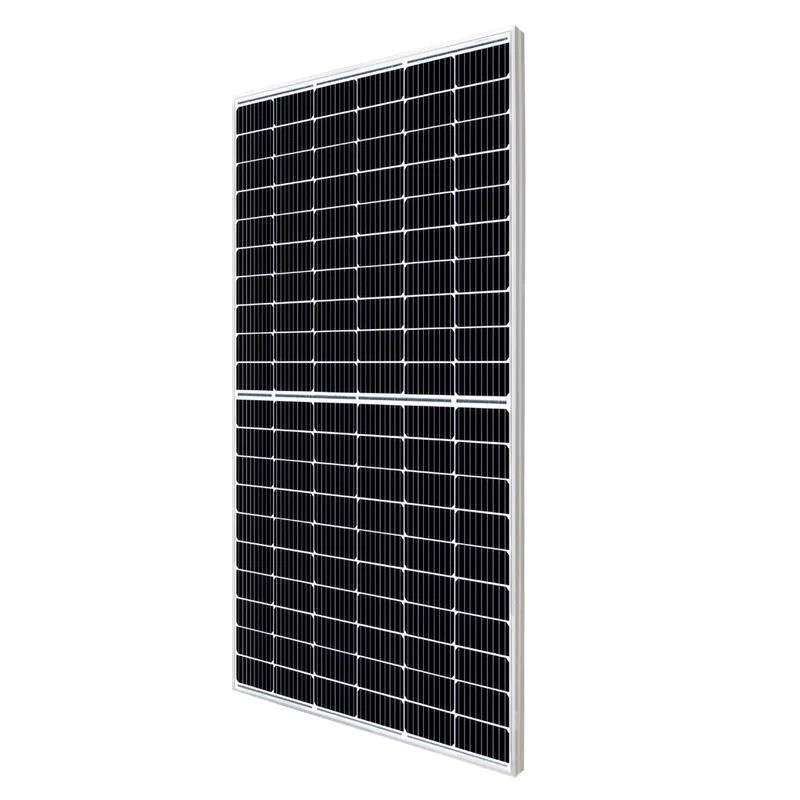

Canadian Solar 545W Mono Solar Panel - Super High Power Mono PERC HiKU with MC4-EVO2

*Please note - there is an additional R395 shipping charge based on the size of this item.
*Delivery time is an additional 1-2 days to any area outside Gauteng.

*Collection form our Joburg offices at no additional charge

Canadian Solar 545W Super High Power Mono PERC HiKU with MC4-EVO2

Features

• Lower internal current, lower hot spot temperature.
• Cell crack risk limited to smaller area of the cell.
• Innovative symmetrical module design means better shading tolerance.
• Heavy snow loads up to 5400Pa and increased wind load up to 3600Pa.
• Product Warranty: 12 years.
• Performance Warranty: 25 years.
• 30mm frame thickness

Specifications

• Electrical Data | Stc*
• Model: CS6W-545MS.
• Nominal Max. Power (Pmax): 545 W.
• Opt. Operating Voltage (Vmp): 41.5 V.
• Opt. Operating Current (Imp): 13.14 A.
• Open Circuit Voltage (Voc): 49.4 V.
• Short Circuit Current (Isc): 13.95 A.
• Module Efficiency: 21.3%.
• Operating Temperature ;-40°C ~ +85°C.
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL).
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730).
• Max. Series Fuse Rating: 20 A.
• Application Classification: Class A Power Tolerance.

* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.

Mechanical Data

• Cell Type: Mono-crystalline.
• Cell Arrangement: 144 [2 x (12 x 6)].
• Dimensions: 2261 mm x 1134 mm x 35 mm.
• Weight 27.8 kg.
• Front Cover: 3.2 mm tempered glass.
• Frame: Anodized aluminium alloy.
