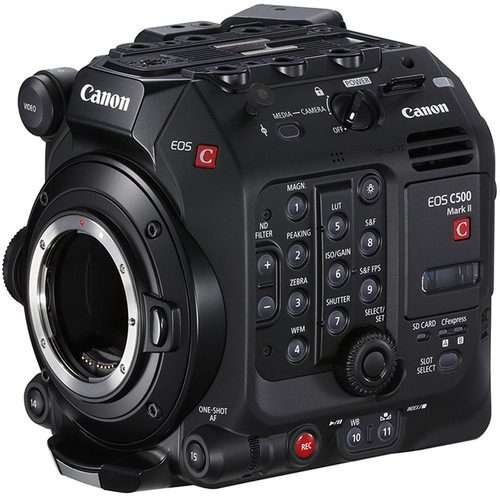

Canon EOS C500 Mark II EF Mount Body Cinema Camera
The Canon EOS C500 Mark II 5.9K Full-Frame Camera Body is part of the Cinema EOS line-up of cameras, and it features a full-frame CMOS sensor with an effective 18.69MP resolution. This allows it to feature a 5.9K output in full frame, and crop (window) the sensor for Super 35 and Super 16 frame sizes while maintaining a high resolution.
The C500 Mark II comes with a Canon EF mount and features an interchangeable lens mount system, allowing you to swap out the mount in the field for an optional Cinema Locking EF or PL mount, thus greatly expanding the amount of glass you can use with the camera. The sensor features over 15 stops of dynamic range and Dual Pixel autofocus support, and the camera uses a DIG!C DV 7 chip for image processing.
The camera internally records raw using the Canon Cinema RAW Light codec in 12- or 10-bit, or you can capture using the XF-AVC codec in 10-bit. Internal recording is done to CFexpress cards via two CFexpress card slots. 8-bit proxy recording in the XF-AVC codes, as well as JPEGs, can be captured onto an SD card via the built-in SD card slot.
Supporting a variety of gamma settings including Canon Log 2 and Log 3, as well as supporting a variety of colour gamuts including Cinema BT.2020, DCI-P3, and legacy BT.709. LUT importing is supported of course. The camera supports four channels of 24-bit, 48 kHz linear PCM audio recording.
Sensor
The full-frame CMOS sensor captures a clean, low-noise image with over 15 stops of dynamic range, and it has a colour gamut that exceeds the BT-2020 specs. The sensor is capable of capturing footage in a variety of aspect formats, including DCI-4K, UHD and Anamorphic Widescreen. In addition to shooting using the sensor's full-frame size, you can use a variety of spherical and anamorphic glass designed for Super 35mm and Super 16mm capture using appropriate sensor crop modes, lens mounts, and adapters.
DIG!C DV 7 Image Processor
The EOS C500 Mark II uses the DiG!C DV 7 image processor that takes the extensive raw information captured from the 5.9K sensor. The DiG!C DV 7 enables high frame rate recording, Dual Pixel Auto Focus, Canon RAW Light Recording, HDR (PQ and HLG) output, electronic image stabilization, proxy recording, and oversampling processing. The high-speed DIG!C DV 7 enables the camera to simultaneously record 2K proxy files as XF-AVC 2K 4:2:0 8-bit to an SD card, while you are recording Cinema RAW Light files (5.9K, 4K Crop, or 2K Crop) to the internal CFexpress cards.
Canon EOS C500 Mark II EF Mount Body Cinema Camera
Interchangeable Lens Mounts
the C500 Mark II comes standard with a Canon EF lens mount that works with and has electronic iris control of a variety of Canon EF, ENG, and Canon Cine-Servo lenses. An optional EF Cine Lock mount also features the Canon EF electronic protocols, and it removes any play when mounting EF lenses to your camera. An industry-standard PL mount is also available, enabling using virtually any PL-mount lens on your C500 Mark II.
The lens mounts are field-swappable by the user, and each mount comes with a set of shims for setting the correct depth. An optional B4 lens adapter is available for either the PL or EF lens mount; this adapter allows you to use B4 mount ENG-style lenses on your C500 Mark II.
Dual Pixel CMOS AF with support for Touch AF and Face Detection AF
- DAF technology utilizes the fact that each pixel in the camera's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite and compared using phase-difference to provide autofocus with compatible lenses. DAF can survey the scene and recognizes not only whether the subject is in focus or not, but in which direction (near or far) and by how much. Enabling auto-focus lenses to react when necessary and not have to "hunt" for focus.
- DAF technology can also be used to aid in manual focus. Focus information is translated to an on-screen guide that conveys to the operator the subject's current focus and direction to move in order to achieve focus. When sharp focus is achieved, the indicator turns green as a clear indication.
- You can also use DAF and the camera's touchscreen LCG to simulate a focus pull using pre-set locations. After setting two separate focus locations on the screen, the camera's set button can be used to alternate between the two focus points. The focus racking effect can be fine-tuned by adjusting AF tracking speed and response.
Focus Control/Assist
Focus control includes Dual Pixel CMOS AF (DAF), Manual Focus, One-Shot AF, Continuous AF, AF-Boosted MF, and Face Detection AF
Please note: Only lenses that support AF functions can be used in these modes.
Shutter Settings
Shutter settings include Speed, Angle, Clear Scan, Slow, or Off mode. Either 1/3 or 1/4 steps selected as speed increments.
Canon EOS C500 Mark II EF Mount Body Cinema Camera
Electronic Image Stabilization
A new feature to the Cinema EOS ecosystem, the C500 Mark II features built-in five-axis electronic IS that works with almost any lens, including anamorphic lenses.
Other Features
- Slow and Fast Motion recording
- Pre-recording
- Relay recording
- Double slot recording
- Custom picture settings
- Colour bars
- Peaking
