Canon Legria HF R706

Canon LEGRIA HF R706

VIDEO SYSTEM

Recording Formats

MP4 / AVCHD

Recording Medium

SDXC / SDHC

Flash-Air compatible

Max Recording Time*

Variable total, depending on memory card size[¹]

64GB SDXC card (not supplied): AVCHD mode, 24hrs 30mins[²]

MP4 Mode, 34hrs 45mins

SENSOR

Type

1/4.85 type full HD CMOS sensor

Total Pixels

3.28 megapixel

Effective Pixels: Movie

2.07 megapixels[¹²]

Effective Pixels: Still

2.07 megapixels (16:9)

Filter

Bayer pattern filter

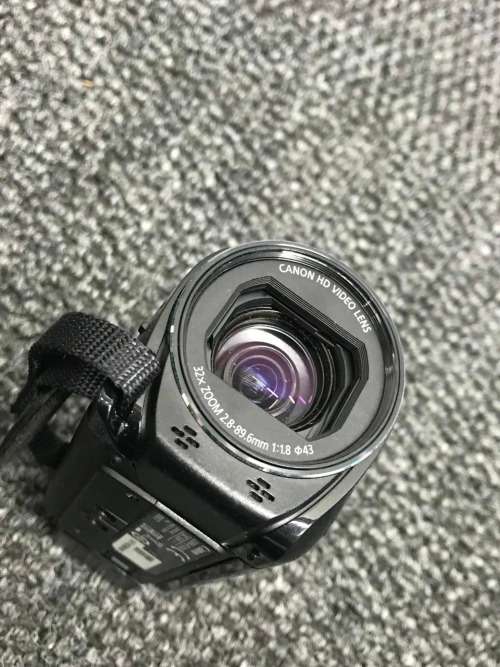

LENS

Advanced Zoom

57x

Optical Zoom

32x

Digital Zoom

1140x

Focal Length

2.8mm - 89.6mm

35mm Equivalent Focal Length

32.5mm - 1853mm / (38.5mm-1232mm: Advanced zoom off)

Maximum Aperture

f1.8 - f4.5

APERTURE TYPE

Minimum focusing distance

10mm

Image Stabilizer

Optical Image Stabiliser: Intelligent IS with Advanced Dynamic Mode

Wide Attachment Included

No

Lens Cover

Integrated

IMAGE PROCESSOR

Image Processor

DIGIC DV 4

Face Detection Technology

Yes

SCREEN

Screen size

7.5cm (3.0") Touchscreen LCD, 100% view

Vari-Angle

Yes

Pixels

230,000 dots

Touchscreen

Yes - capacitive type touch panel

TOUCH TRACKING

Touch Focus

Yes

Manual adjustment

Brightness, backlight

NFC

Remote Control & Streaming

No (but Flash-Air compatible)

Movie Uploader

No

Playback via browser

No

Media Server

No

Web Service

No

BABY MODE

Baby Mode

Yes - register up to 3 children

EXTERNAL HDD STORAGE

Direct storage to external HDD

No

MINIMUM ILLUMINATION

Minimum Lux.

4 lux

Night Mode

Low Light (0.4 lux)

Auto Gain Control Limit Adjustment

No

FOCUS

Auto/Manual

Yes / Yes

Control

Auto: Face Detection AF, TV AF

Manual: Touchscreen LCD, Touch focus

Manual Focus Assist

Yes (magnification)

CREATIVE FEATURES

Slow Motion Recording

1/2 speed

Fast Motion Recording

2x, 4x, 10x, 20x, 60x, 120x, 1200x

Fast Motion Conversion

No

VIDEO SNAPSHOT

Touch Decorations

Yes

STORY CREATOR

Cinema-Look Filters

Yes

AE MODE

Smart Auto

Yes (38 Scenes)

Program AE

Auto

M Mode: P, Scn, (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks)

Cinema Mode: P

Baby Mode

BACKLIGHT COMPENSATION

Backlight Compensation

Yes (automatic or user control)

WHITE BALANCE

Type

TTL

Auto

Yes

Set/Preset

Daylight, Tungsten

SHUTTER SPEED

Maximum

1/2000sec

Slow

1/2sec

IMAGE QUALITY ADJUSTMENT

Image Effects

Standard, Highlight Priority

CUSTOM CONTROL

Custom Control

Yes (touch panel operations)

STILL IMAGE

Capture Image Size

1920x1080 (not cinema mode)

Simulaneous Photo Recording

Yes

Photo Button

Touchscreen LCD

SELF TIMER

Self Timer

10 sec

RECORDING MODE

Recording Format

MP4 and AVCHD

Recording Mode

Four AVCHD recording quality modes[¹²]

50P: 1920 x 1080, 28Mbps;

MXP 50i/PF25: 1920x1080, 24Mbps;

FXP 50i/PF25: 1920x1080, 17Mbps;

LP 50i/PF25: 1440x1080, 5Mbps

Four MP4 quality recording modes[¹²]

50p: 1920 x 1080, 35Mbps;

25p: 1920 x 1080, 24Mbps,

25p: 1920 x 1080, 17Mbps,

25p: 1280 x 720, 4Mbps

Progressive Shooting Mode

50p, 25p

Slow and Fast Motion Recording

Yes

MULTI DIRECTIONAL INVERTED

Video Snapshot

Yes

Pre REC

Yes

STILL IMAGE

Date

Yes

MEMORY CARD

Secure Digital Card

SD / SDHC / SDXC

Movie Recording

Yes

Internal Data Transfer

Yes, movie and stills (internal memory to card)

AUDIO

Microphone Type

Dolby Digital 2ch

AC3 2ch

System

Yes

Audio Scene Select

No

Zoom Microphone

Yes

TERMINAL

Headphone

Yes

Microphone

No

USB

Yes (Mini-B, Hi-Speed USB - Output Only )

AV

Yes (output only)

Component

No

HDMI

YES (HDMI Mini Connector: output only)

Built-in Charger

Yes

Tripod Mount

Yes

SMART FEATURES

Framing Assist

Yes

Quick Start

Yes (using LCD screen)

File Lock

Yes

BATTERY PACK

Type

Lithium Ion

Intelligent Battery System

Yes

DIMENSIONS

W x H x D

53 x 58 x 116

Weight

235g

Disclaimer

*: 4Mbps MP4 recording mode

Specifications are subject to change without notice
