Specifications in detail
Image Sensor
Type
1/2.3 type CCD
Effective / Total Pixels
Approx. 20.5M
Image Processor
Type
DIGIC 4+
Lens
Focal Length
4.3 193.5 mm (35 mm equivalent: 24 1080 mm)
Zoom
Optical 45x
ZoomPlus 90x
Digital approx. 4x (with Digital Tele-Converter approx. 1.6x or 2.0x 1).
Combined approx. 180x
Maximum f/number
f/3.5 - f/6.8
Construction
12 elements in 11 groups (3 UD lenses, 2 double-sided aspherical lenses, 1 single-sided aspherical lens)
Image Stabilisation
Yes (lens shift-type), approx. 2.5-stop 2. Intelligent IS plus Enhanced Dynamic IS
Focusing
Type
TTL
AF System/ Points
AiAF (Face Detection / 9-point), 1-point AF (fixed to centre)
AF Modes
Single, Continuous, Servo AF/AE 3, Tracking AF
AF Point Selection
Size (Normal, Small)
AF Assist Beam
Yes
Closest Focusing Distance
0 cm (W) from front of lens in Macro
Exposure Control
Metering modes
Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (Centre)
Exposure Compensation
+/- 2 EV in 1/3 stop increments
i-Contrast for automatic dynamic range correction
ISO Sensitivity
AUTO, 100, 200, 400, 800, 1600
AUTO ISO: 100 - 800
Shutter
Speed
1 1/4000 s (Auto Mode)
15 1/4000 s (total range varies by shooting mode)
White Balance
Type
TTL
Settings
Auto (including Face Detection WB), Daylight, Cloudy, Light bulb, Fluorescent, Fluorescent H, Custom.
LCD Monitor
Monitor
7.5 cm (3.0) TFT, approx. 230,000 dots
Coverage
Approx. 100%
Brightness
Adjustable to one of five levels.
Quick-bright LCD available via holding INFO Button
Flash
Modes
Auto, Manual Flash On / Off, Slow Synchro
Slow Sync Speed
Yes. Fastest speed 1/2000 s
Red-Eye Reduction
Yes
Flash Exposure Compensation
Face Detection FE
Built-in Flash Range
50 cm 5.0 m (W) / 1.3 m 2.7 m (T)
External Flash
Canon High Power Flash HF-DC2
Shooting
Modes
Smart Auto (32 scenes detected), Program AE, Live View Control, Portrait, Face Self-Timer, Low Light (5.0MP), Monochrome, Fish-eye Effect, Toy Camera Effect, Miniature Effect, Super Vivid, Poster Effect, Fireworks, Long Shutter
Photo Effects
My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color)
Drive modes
Single, Continuous, Self-Timer
Continuous Shooting
Approx. 0.5 shots/s
Low Light Mode (5.0 MP): Approx. 2.2 shots/s
(all speeds are until memory card becomes full) 4, 5
Recording Pixels / Compression
Image Size
4:3 - (L) 5152 x 3864, (M) 2560 x 1920, (M1) 3648 x 2736, (M2) 2048 x 1536, (S) 640 x 480
16:9 - (L) 5152 x 2896, (M1) 3648 x 2048, (M2) 1920 x 1080, (S) 640 x 360
3:2 - (L) 5152 x 3432, (M1) 3648 x 2432, (M2) 2048 x 1368, (S) 640 x 424
1:1 - (L) 3856 x 3856, (M1) 2736 x 2736, (M2) 1536 x 1536, (S) 480 x 480
Resize in playback (M2)
Compression
Superfine, Fine
Movies
(HD) 1280 x 720, 25 fps
(L) 640 x 480, 29.97 fps
Movie Length
(HD) Up to 4 GB or 29 min 59 s 6
(L) Up to 4 GB or 1 hour 7
File Type
Still Image Type
JPEG compression (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant
Movies
MP4 [Video: MPEG4-AVC / H.264, Audio: MPEG4 AAC-LC (monaural)]
Other Features
GPS
GPS via mobile (via Canon Camera Connect app with compatible smart devices)
Red-Eye Reduction
Yes, during shooting and playback
Intelligent Orientation Sensor
Yes, with Auto Rotate
Histogram
Yes, during playback
Playback zoom
Approx. 2x 10x
Self Timer
Approx. 2, 10 s or Custom
Menu Languages
English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese, Hebrew
Interface
Computer
Hi-Speed USB composite connector (Mini-B compatible)
Other
A/V output, composite connector (PAL/NTSC)
Computer/Other
Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support 8
Memory Card
Type
SD, SDHC, SDXC
Supported Operating System
PC & Macintosh
Windows 10 / 8.1 / 8 / 7 SP1 9
Mac OS X 10.9 / 10.10 / 10.11 / 10.12
For Wi-Fi connection to a PC:
Windows 10 / 8.1 / 8 / 7 SP1
Mac OS X 10.9 / 10.10
For Image Transfer Utility:
Windows 10 / 8.1 / 8 / 7 SP1
Mac OS X 10.9 / 10.10 / 10.11 / 10.12
Software
Other
CameraWindow DC
Map Utility
Image Transfer Utility
Camera Connect app available on iOS and Android devices
Power Source
Batteries

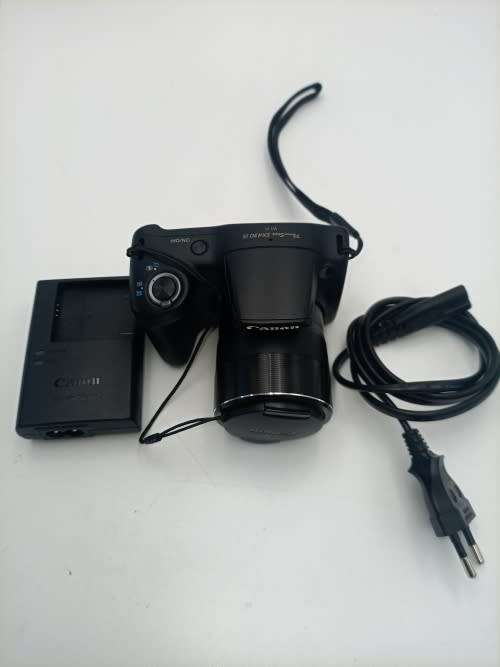

Rechargeable Li-ion Battery NB-11LH (Battery and charger supplied)
Battery life
Approx. 195 shots
Eco mode approx. 260 shots
Approx. 300 min playback
Accessories
Cases / Straps
Soft Case DCC-950
PowerShot Accessory Organizer
Flash
Canon High Power Flash HF-DC2
Power Supply & Battery Chargers
Battery Charger CB-2LFE
Rechargeable Li-ion Battery NB-11LH
Other
Canon AV cable AVC-DC400
Interface Cable IFC-400PCU
Physical Features
Operating Environment
0 40 °C, 10 90% humidity
Dimensions (W x D x H)
104.4 x 69.1 x 85.1 mm
Weight
Approx. 323 g (including battery and memory card)
