Product details

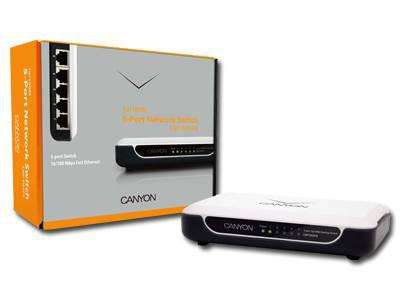

Canyon 5 Port 10/100Mbps Ethernet Switch, MDI/MDI-X switch, VPN Support
The CNP-D05PA is a 5-port 10/100Mbps Fast Ethernet Switch that provides up to five Auto-Negotiation RJ45 ports with 10/100Mbps speed. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, hub or a switch using straight or crossover cable. The CNP-D05PA switch provides you with a cost-efficient, easy-to-use, high-performance solution to build up a new network or upgrade your old network. The switch can be placed on any desktop or hang on the wall thanks to its small size, weight and wall mounting design. To optimize your network connectivity, simply insert Ethernet cables and you are ready to go!
| Local Area Network Architecture | 10Base-T/100Base-TX |
| Data Link Protocol Supports | Fast Ethernet/Ethernet |
| Number of Ports | 5 |
| Switching Protocol | Ethernet |
| Switching Method | Store and Forward |
| Data Bit Rate | 100 Mbps |
| Status Indicator | Network |
| Data Transmission | Full Duplex |
| Networking Compliant Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x |
| Networking Features | MDI/MDI-X switch Switching VPN Support |
| Device Location | External |
| Certifications | FCC part 15 Class B, CE |
| Interface Provided | |
|---|---|
| Ethernet 10Base-T/100Base-TX Port Quantity | 5 |
| Ethernet 10Base-T/100Base-TX Port Connector Type | RJ-45 |
| Power | |
| Power Device Location | External |
| Maximum Input Frequency | 60 Hz |
| Maximum Input Voltage | 240 V |
| Maximum Power Consumption | 1 W |
| Minimum Input Frequency | 50 Hz |
| Minimum Input Voltage | 100 V |
| Dimensions&Weigh | |
