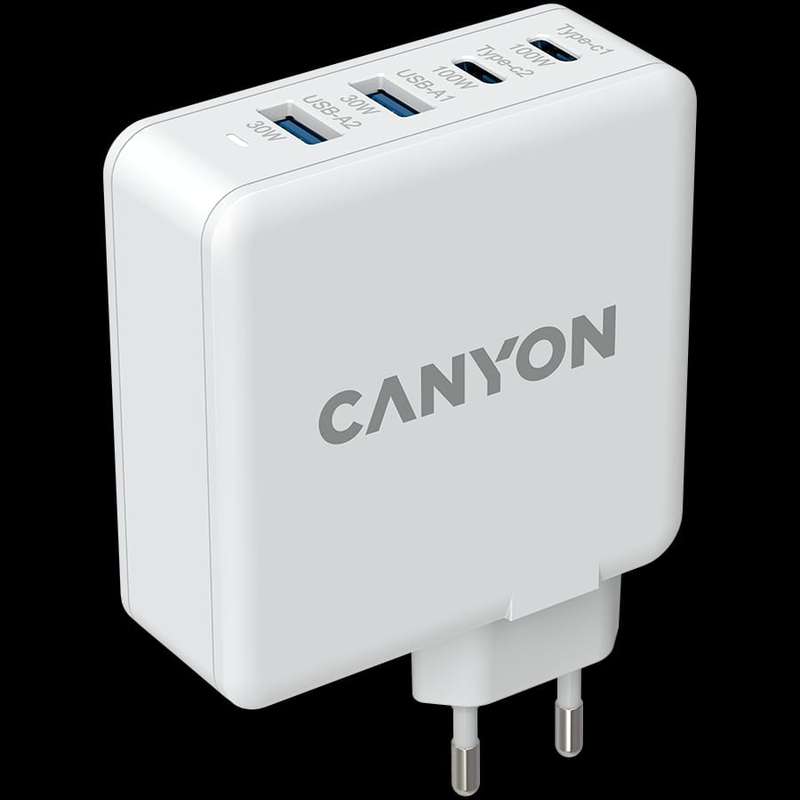

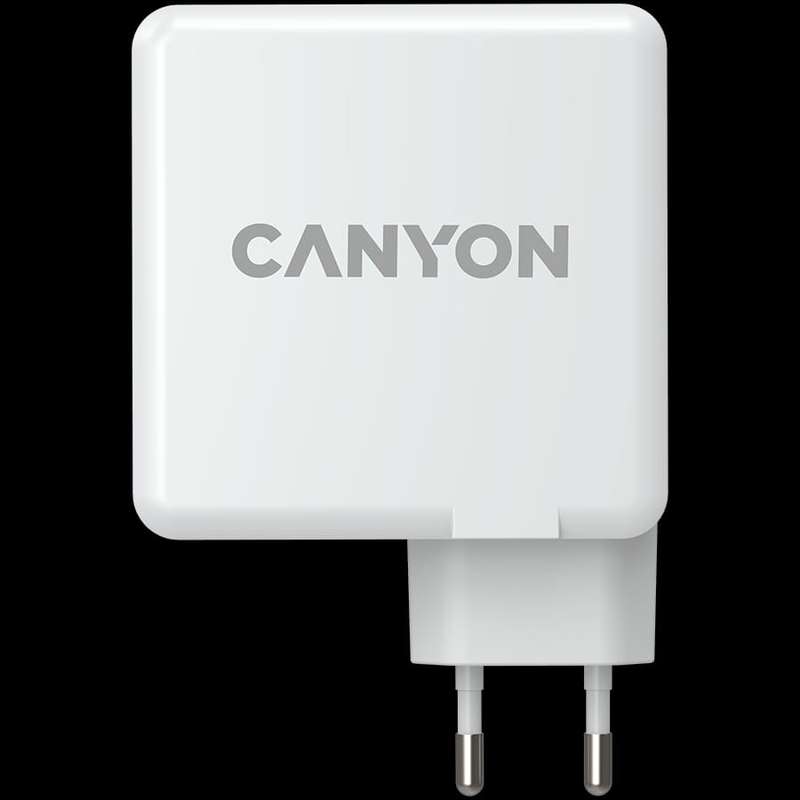

CANYON Power Adapter CND-CHA100W01

CANYON H-100, GAN 100W charger Input: 100V-240V Output: USB-C1/C2: 5V 3A , 9V 3A , 12V 3A , 15V 3A , 20V 5A USB-A 1/A2: 4.5V/5A, 5V/4.5A, 9V/3A, 12V/2.5A, 20V/1.5A C1+C2 : 65W + 30W； C1+A1 : 65W + 30W ； C1+A2 : 65W + 30W ；C1+A1+A2 : 65W + 7.5W

H-100

Commercial Name  CANYON charger H-100 GaN PD 100W QC 3.0 30W White

Power Device Type  Power Adapter

Power Device Location  External

Input Voltage  AC 100-240 V

Output Voltage  DC 4.5-20 V

Maximum Output Power  100 W

Output Power Connectors Quantity  4

Output Power Connectors Type  USB/USB-C

USB Type A1, USB Type A2  DC 4.5/5/9/12/20V

USB Type C1, USB Type C2  DC 5/9/12/15/20V

External Color  White

Warranty Products Returnable  Yes

Warranty Term (month)  24 month(s)

Warranty Validation Criteria  Serial Number

Pack Length (mm)  98 mm

Pack Width (mm)  33 mm

Pack Height (mm)  171.5 mm

Pack Weight Brutto (kg)  0.239 kg

Pieces in pack  1

Box Length (mm)  420 mm

Box Width (mm)  360 mm

Box Height (mm)  220 mm

Box Weight Brutto (kg)  11.47 kg

Retail Packaging Net Weight Carton  0.039 kg

Retail Packaging Net Weight Plastic  0 kg

Packs in Box  48

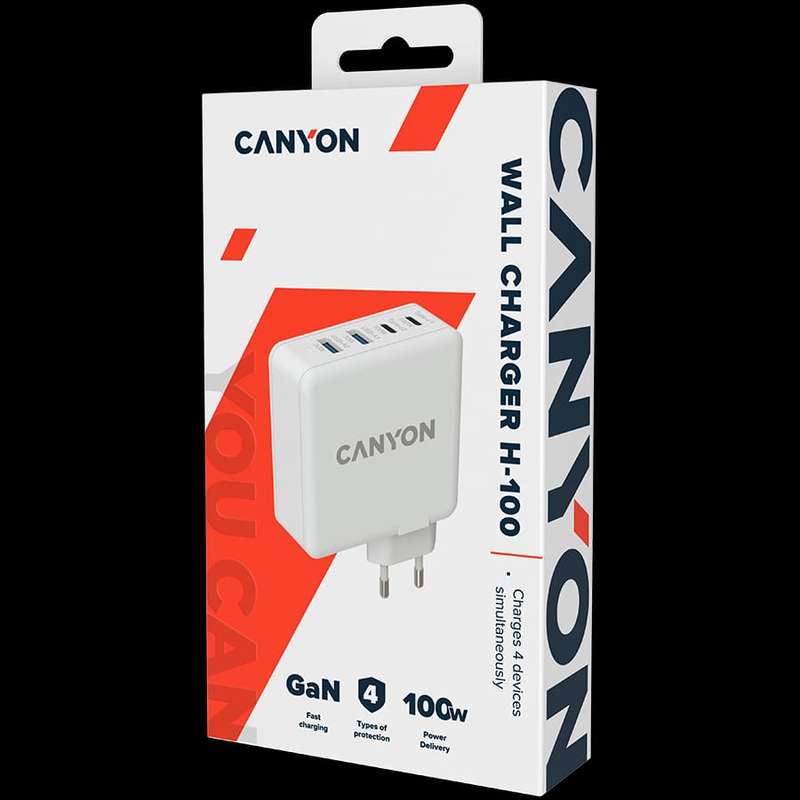

Package Type  Retail

EAN Code  5291485008550

Color box dimensions (mm)  33x171.5x98 mm

Single pack gross weight (kg)  0.239 kg

Carton weight (kg)  11.47 kg

Quantity of the boxes per pallet (by air)(pcs)  36

Quantity of the packs per pallet (by air)(pcs)  1728

Quantity of the boxes per pallet (by sea)(pcs)  54

Quantity of the packs per pallet (by sea)(pcs)  2592

Dimensions of pallet (by sea)  920x2130x1200 mm

  33x171.5x98 mm
