Canyon Wireless Router - 150 Mbps, 1 x Wan , 4 X LAN IEEE 802.11B/IEEE 802.11G Ethernet/Fast Ethernet

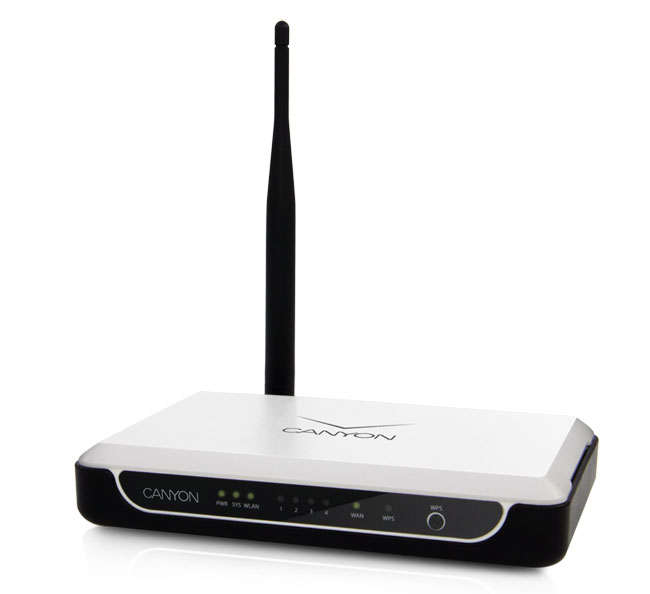

The CNP-WF514N1A Wireless N Router is a combined wired/wireless network connection device designed specifically for small business, office and home networking requirements. It provides a simple, fast, pleasing way to access internet or Ethernet without cables. It is compatible with the IEEE 802.11n standard with wireless transmission speeds of up to 150Mbps. It also works well with other 11b/g and 11n protocol wireless products. CNP-WF514N1A also provides easy and quick security setup with WPS (Wi-Fi Protected Setup) standard, get network safety at the push of a button. The device is slim and compact for convenient positioning to achieve the best wireless coverage, and even has a detachable antenna for possible upgrade!
Ethernet 10Base-T/100Base-TX Port Quantity | 4 |
Ethernet 10Base-T/100Base-TX Port Connector Type | RJ-45 |
WAN Ethernet 10Base-T/100Base-T Port Quantity | 1 |
WAN Ethernet 10Base-T/100Base-T Port Connector Type | RJ-45 |
Antenna Connector Quantity | 1 |
Power | |
---|---|
Power Device Location | External |
Installed Buffer Memory Storage Capacity | 32 MB |
Installed Flash Memory Storage Capacity | 4 MB |
Networking Specifications | |
---|---|
Data Link Protocol Supports | Fast Ethernet/Ethernet IEEE 802.11b/g/n |
Local Area Network Architecture | 10Base-T/100Base-TX Wireless |
Data Bit Rate | 150 Mbps |
Network/Transport Protocol | ICMP PPPoE PPTP TCP/IP DHCP UPnP DDNS |
LAN Management Protocol Supported | Web Interface |
Status Indicator | Link Status |
Line Modulation Type | 16QAM 64QAM BPSK CCK DBPSK DQPSK OFDM QPSK |
Max. Range Indoors | 100 m |
Max. Range Open Space | 300 m |
